Operating manual Clou Compact Cook
9.1.7

Installing the air supply adapter

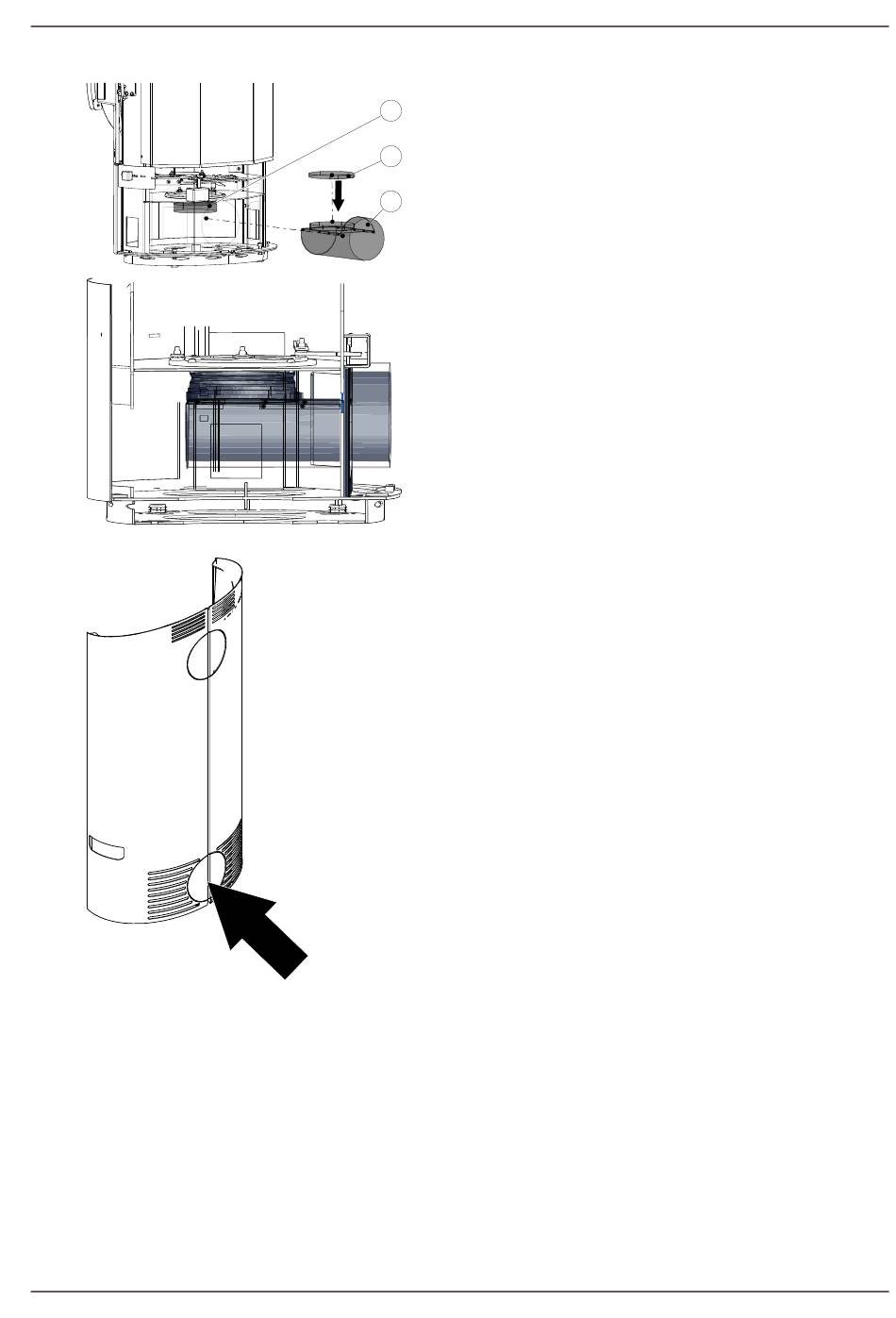

Fig. 26: Installing the supply air adapter
Fig. 27: Removing the perforated cut-out
EN
1) First attach the ring (2) to the supply air adapter (1).
3
2) Insert the supply air adapter (1) into the stove at the
bottom and fix it with the ring to the air connection (3).
2
3) Reinstall back.
1
4) Using a saw, remove the perforated cut-out to the side
cladding (rear).
5) Reinstall back.
9 | Installation
31
