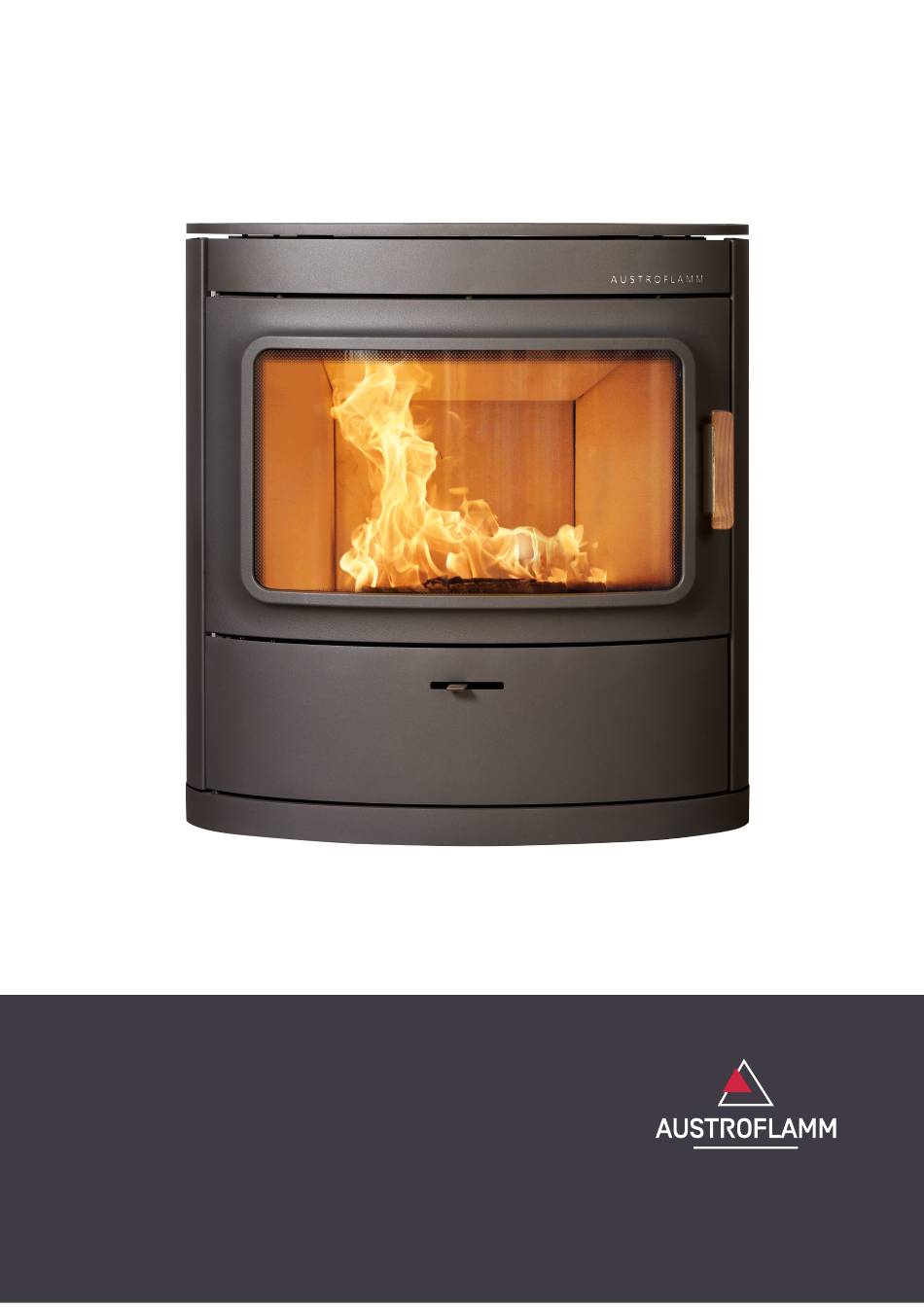

  • Page 1 Operating manual Cody 2.0 www.austroflamm.com...
  • Page 2 Tel: +43 (0) 7249 / 46 443 www.austroflamm.com info@austroflamm.com Edited by: Olivera Stojanovic Illustrations: Konstruktion Text: Technical department (Austroflamm) Copyright All Rights reserved. The contents of these instructions may be reproduced or distributed only with the consent of the publisher! Printing, spelling and typographical errors reserved.

  • Page 3: Table Of Contents

    Operating manual Cody 2.0 Contents Contents General information ............................Copyright.............................. Purpose of the manual ............................Storing the manual ..........................Structure of the manual........................Representations used.......................... Version control............................. Abbreviations ............................Safety ..................................Importance of the safety instructions ....................General safety instructions .........................
  • Page 4 Contents Operating manual Cody 2.0 9.2.3 Mounting the Keramott........................28 9.2.4 Mounting the steel cladding ......................29 9.2.5 Mounting the ceramic cladding......................30 9.2.6 Mounting the base ..........................31 10 Settings................................. 32 10.1 Adjusting the door hinges........................32 10.2 Adjusting the door spring ........................32 10.3...

  • Page 5: General Information

    Operating manual Cody 2.0 1 | General information General information You have decided in favor of an Austroflamm stove. Congratulations on your decision and thank you for your trust. Correct operation and care are essential for trouble-free operation and long service life.

  • Page 6: Purpose Of The Manual

    2 | Purpose of the manual Operating manual Cody 2.0 Purpose of the manual This manual is a component part of the stove and is intended to contribute to the stove being safely in- stalled and maintained. Please read this manual before using the stove for the first time.

  • Page 7: Abbreviations

    Operating manual Cody 2.0 2 | Purpose of the manual Abbreviations Abbreviation Meaning Heat Memory System Stoves...

  • Page 8: Safety

    European standards, local and building regulations, together with fire regulations must also be complied with. • The initial commissioning of the stove must be carried out by an authorised Austroflamm service partner or by Austroflamm Service GmbH & Co.KG. • Before operating your stove, carefully read through the entire manual and observe the instructions and warnings.

  • Page 9: Special Types Of Danger And Personal Protective Equipment

    Operating manual Cody 2.0 3 | Safety • Please alert children to these dangers, and keep them away from the stove when it is operating. DANGER Danger of overheating To prevent damage you must NEVER operate your stove with a greater quantity of fuel than the...

  • Page 10: Product Overview

    Operating manual Cody 2.0 Product overview Intended use The Austroflamm stove described in this manual is manufactured and tested with a type A1 self-closing and locking door under EN test EN 13240. NOTICE Operation is only permissible with closed/bolted door.
  • Page 11 Operating manual Cody 2.0 4 | Product overview Fig. 1: Dimensions...
  • Page 12 4 | Product overview Operating manual Cody 2.0 1) Air regulator Open (1) and Closed (2) Fig. 2: Air regulator Safety distances • a front within the radiation area – 800 mm • b at the sides in the radiation area – 200 mm •...

  • Page 13: Energy Label

    Operating manual Cody 2.0 4 | Product overview Energy label -80% Austrof amm CODY 2.0 -60% -40% -20% ENERGIA · ЕНЕРГИЯ · ΕΝΕΡΓΕΙΑ · ENERGIJA · ENERGY · ENERGIE · ENERGI 2015/1186 Fig. 4: Energy label Positioning of the nameplates Here we show where you can find the nameplate. You received a copy of the nameplate with the stove.

  • Page 14: Technical Data

    5 | Technical data Operating manual Cody 2.0 Technical data As a type 1 stove, a connection to a chimney already occupied with other solid-fuel stoves and ovens is possible provided that the chimney rating under DIN 4705 – part 3, does not contravene this.
  • Page 15 Operating manual Cody 2.0 5 | Technical data Bituminous coal Lignite briquettes Peat briquettes Briquettes made from a mixture of fossil fuels Other fossil fuels Briquettes made from a mixture of biomass and fossil fuels Other mixture of biomass and solid fuels (*) PM = dust, OGC = organic gaseous connections, CO = carbon monoxide, NOx = nitrogen oxide (**) Only required when using correction factors F(2) or F(3).

  • Page 16: General Specifications

    5 | Technical data Operating manual Cody 2.0 Specification mg/m³ for heated filter method (in compliance with Annexe III, number 4, letter a, sec- tion i, point 1) or g/kg for measurement in dilution tunnel (in compliance with Annexe III, number 4, let- ter a, section i, point 2 and 3.)

  • Page 17: Transport, Handling And Storage

    Operating manual Cody 2.0 6 | Transport, handling and storage Transport, handling and storage Transportation Immediately checked the goods delivered for complete- ness and damage in transit. Before installing the stove, check that all movable parts are working. Any defects before the installation of the stove must be reported.

  • Page 18: Requirements At The Installation Location

    When connecting the flue pipes to the chimney, national and/or local safety regulations must be com- plied with. Your Austroflamm stove is fitted at the factory with a flue outlet at the top (diameter 130 mm). The connection can, as described in these instructions, be rearranged to the bottom. When con- necting with other pipe diameters the approval of your responsible chimney sweep is required.

  • Page 19: Room Of Installation

    Operating manual Cody 2.0 7 | Requirements at the installation location Room of installation Note that the room in which the stove is installed must have at least one door / one window leading to the outside, or be directly connected to such a room. For balanced flue operation, other heating appli- ances and extractor hoods must not be operated together with this heating appliance as part of the room air system.

  • Page 20: Fuel Material/-Quantity

    8 | Fuel material/-quantity Operating manual Cody 2.0 Fuel material/-quantity Fuel Wood Many of our native types of wood can, after being appropriately dried, be burnt CO2-neutral in heat- producing appliances. Wood stands out because it grows again, can be sustainably harvested, re- quires little or no extra external energy to be invested in the fuel, and has a short journey from the pro- ducer to the consumer, which provides an optimal climate balance.
  • Page 21 Operating manual Cody 2.0 8 | Fuel material/-quantity Please observe at all times the maximum specified amount to be laid, even when putting on more wood! Otherwise your fire will not provide the desired efficiency - but above all considerable damage may be caused to your appliance, to gaskets and material and to the flue gas duct.

  • Page 22: Fuel Quantity

    Maximum amount of fuel to be deposited: 2.0 kg wood. NOTICE Overheating Too great a quantity of fuel can lead to overheating and damage to your Austroflamm stove NOTICE To avoid damage you must NEVER operate your Stove a greater quantity of fuel than that specified in...

  • Page 23: Installation

    Operating manual Cody 2.0 9 | Installation Installation Installation must only be carried out by an authorized specialist company. Before installing the stove, check that all movable parts are working. Any defects must be reported be- fore the installation. In the following sections we will give you information on •...
  • Page 24 9 | Installation Operating manual Cody 2.0 3) First tilt the rear panel forward a little, then raise up and detach. Fig. 10: Removing the rear panel 4) Detach the radiation protection from the rear panel. Fig. 11: Detaching the radiation protection 5) Use a saw to remove the perforated cut-out on the rear panel and radiation protection.
  • Page 25 Operating manual Cody 2.0 9 | Installation 6) Remove rear cover on the back. 7) Remove the bracket with seal. Fig. 13: Remove cover and bracket 8) Replace parts and reinstall. Fig. 14: Replace the cover and bracket...
  • Page 26 9 | Installation Operating manual Cody 2.0 9) Remount the radiation protection on the rear panel. Fig. 15: Mounting the radiation protection 10) Mount the rear panel. Fig. 16: Installing the rear panel 11) Remount the cover. Fig. 17: Mounting the cover...

  • Page 27: Installing The Hms

    Operating manual Cody 2.0 9 | Installation 9.2.2 Installing the HMS 1) Removing the cover. Proceed as described in the sec- tion Removing the cover [}on page 50]. 2) Remove the screws from the rear panel. Fig. 18: Removing the screws from the rear...

  • Page 28: Mounting The Keramott

    9 | Installation Operating manual Cody 2.0 5) First fit the HMS brick into the lower pre-mounted mounting. 6) Attach the HMS brick at the top with the HMS mount- ing and fix it. 7) Repeat both steps for the remaining HMS bricks.

  • Page 29: Mounting The Steel Cladding

    Operating manual Cody 2.0 9 | Installation 9.2.4 Mounting the steel cladding 1) Removing the cover. Proceed as described in the sec- tion Removing the cover [}on page 50]. 2) Attach steel cladding to the side of the stove. ð There is a magnet (1) at the bottom which attracts the steel cladding.

  • Page 30: Mounting The Ceramic Cladding

    9 | Installation Operating manual Cody 2.0 9.2.5 Mounting the ceramic cladding 1) Removing the cover. Proceed as described in the sec- tion Removing the cover [}on page 50]. 2) Attach ceramic cladding to the side of the stove. ð There is a magnet (1) at the bottom which attracts the ceramic cladding.

  • Page 31: Mounting The Base

    Operating manual Cody 2.0 9 | Installation 9.2.6 Mounting the base 1) Place stove on to the base. 2) From inside, use the screws to fasten the base to the stove. Fig. 30: Mounting the base...

  • Page 32: Settings

    10 | Settings Operating manual Cody 2.0 Settings 10.1 Adjusting the door hinges 1) Remove front trim. Proceed as described in the sec- tion Removing the front trim [}on page 50]. 2) Using the screws (1) the door can be adjusted up, down, left and right.

  • Page 33: Adjusting The Door Lock

    Operating manual Cody 2.0 10 | Settings 10.3 Adjusting the door lock 1) Open the door. 2) Door lock can be adjusted up, down, forward and backward using the screws (1). 3) Ensure that the latch bolt (2) is always in the position shown.

  • Page 34: Commissioning

    11 | Commissioning Operating manual Cody 2.0 Commissioning 11.1 Initial Commissioning NOTICE During the initial commissioning and in the following 2-3 combustion cycles, only approx. 2/3 of the maximum fuel quantity is to be used. NOTICE To avoid damage you must NEVER operate your Stove a greater quantity of fuel than that specified in this manual! During the first 3-4 combustion cycles at nominal heat output, odors may develop.

  • Page 35: Operation

    Operating manual Cody 2.0 12 | Operation Operation 12.1 Before heating up The stove can only function properly if there is sufficient combustion air coming to the room of installa- tion (the appliance), specially if several firing installations are being operated at the same time. Ensure sufficient air supply before heating up.

  • Page 36: Heating In The Transition Period

    12 | Operation Operating manual Cody 2.0 9) As soon as the pieces of firewood are burning well all around (light, high flames), you can control the air supply with the controller. ð Control at maximum setting left = maximum heat output ð...

  • Page 37: Maintenance

    Operating manual Cody 2.0 13 | Maintenance Maintenance 13.1 Changing the seal on the door 1) Remove old seal from the door. 2) Glue in new seal with a suitable adhesive (e.g. silicon B310). ð Repeat these steps for the baking compartment door as well Fig. 37: Changing the seal...

  • Page 38: Cleaning

    14 | Cleaning Operating manual Cody 2.0 Cleaning 14.1 Cleaning the stove, flue gas ducts and flue pipe The stove, the flue gas ducts and flues should be annually - possible even more often, e.g. • after the chimney has been cleaned •...

  • Page 39: Cleaning The Door Window

    14.3 Cleaning the door window Spray window with glass cleaner and leave it for a moment to take effect. • We recommend cleaning the glass with our Austroflamm glass cleaner or a commercially available window cleaner. • Prevent door- or window seals from coming into contact with water or cleaner, since these will oth- erwise harden and in doing so lose their function.

  • Page 40: Help

    15 | Help Operating manual Cody 2.0 Help Problem Cause Solution The glass window is sooty Insufficient draft from time to time (depending on use) the window must be cleaned with glass cleaner Clarification with chimney sweeper (poss extend chimney/measure...

  • Page 41: Firebox Lining

    Operating manual Cody 2.0 15 | Help Problem Cause Solution Operating temperature not reached Bring stove to the operating temper- ature Sooting up of the window after 8- 10 hours of fires is normal Chimney draft too low Contact chimney sweep 15.1 Firebox lining...

  • Page 42: Accessories

    16 | Accessories Operating manual Cody 2.0 Accessories Have defective parts (accessories, spare parts) replaced by your specialist stove dealer. This guaran- tees that stove is and remains safe and functional.

  • Page 43: Spare Parts

    Operating manual Cody 2.0 17 | Spare parts Spare parts Accessories Item no. Quantity Item Item no. Cody 2.0 083101 Base, complete 083002-29 3 SV steel, complete 083003-29 SV ceramic, complete 083004-XX HMS complete 083005 Elbow piece 130 - set...
  • Page 44 17 | Spare parts Operating manual Cody 2.0 Keramott Item no. Quantity Item Item no. Keramott floor left 727466 Keramott floor right 727467 Keramott wood retainer 727465 Keramott panel rear left 727468 Keramott panel rear right 727469 Keramott panel right...
  • Page 45 Operating manual Cody 2.0 17 | Spare parts Item no. Quantity Item Item no. HMS back left 727480 HMS left 727481 HMS right 727482 HMS back right 727484 HMS installation instructions 945007 HMS holder 727483-95...
  • Page 46 17 | Spare parts Operating manual Cody 2.0 Base Item no. Quantity Item Item no. M20x1.5 DIN913 grub screw 724658 ISK M5x25 DIN912 cylinder screw with hexagon socket 718151-91 Large diameter washer for M5 DIN9021 718214-92 Cladding base, welded 727471-29...
  • Page 47 Operating manual Cody 2.0 17 | Spare parts Steel cladding Item no. Quantity Item Item no. Steel cladding, complete 727561-29...
  • Page 48 17 | Spare parts Operating manual Cody 2.0 Ceramic cladding Item no. Quantity Item Item no. Ceramic cladding, complete 727401...
  • Page 49 Operating manual Cody 2.0 17 | Spare parts Ash box Item no. Quantity Item Item no. A Ø4.0x7.6 DIN7337 A blind rivet 718358-91 Plate grate, 14x24cm 791320 Ash box Ash box cover 794005 Ash box cover handle 794006...

  • Page 50: Dismantling

    18 | Dismantling Operating manual Cody 2.0 Dismantling For correct uninstallation and dismantling of the stove, contact your Austroflamm specialist dealer. 18.1 Removing the cover 1) Open the door. Fig. 42: Opening the door 2) Loosen nuts. Fig. 43: Loosening the nuts 3) Carefully pull cover off forwards.

  • Page 51: Removing The Rear Panel

    Operating manual Cody 2.0 18 | Dismantling 2) Undo the top two screws of the trim. Fig. 46: Undoing the screws 3) Detach the trim upwards. Fig. 47: Detaching the trim 18.3 Removing the rear panel 1) Removing the cover. Proceed as described in the sec- tion Removing the cover [}on page 50].

  • Page 52: Removing The Side Cladding (Ceramic/Steel)

    18 | Dismantling Operating manual Cody 2.0 18.4 Removing the side cladding (ceramic/steel) 1) Removing the cover. Proceed as described in the sec- tion Removing the cover [}on page 50]. 2) Undo nuts from the side cladding and detach the side cladding.

  • Page 53: Disposal

    NOTICE For correct uninstallation and dismantling of the stove, contact your Austroflamm specialist dealer. Electric and electronic components Remove the electric and electronic components from the appliance by dismounting them. These com- ponents must not be disposed of via non-recyclable waste.
  • Page 54 19 | Disposal Operating manual Cody 2.0 Handles and decorative elements made of metal If present, disassemble or remove handles and decorative elements made of metal and dispose of as metal scrap. Local disposal options must be observed.

  • Page 55: Guarantee / Warranty

    For the replaceability of the warranty case the start-up log must be received by Austroflamm within one month at the latest of the initial commissioning. In or- der to make a claim on the warranty, repairs to your stove must only be carried out by a service en- gineer authorized by Austroflamm.

  • Page 56: Data Processing

    If you consent to the appropriate handling of your personal data for the following purposes, please tick this box. o I hereby agree that Austroflamm GmbH and AUSTROFLAMM Service GmbH & Co KG may send me service reminders and offers on other products from Austroflamm GmbH for the purposes of advert- ising via E-Mail/ SMS/ telephone.

  • Page 57: Start Up Log

    Operating manual Cody 2.0 22 | Start up log Start up log Operator / Customer Dealer / Engineer Name Company Street Street Town and postal code Town and postal code Telephone Telephone Email Email Stove Working Comments Model Serial number...
  • Page 58 22 | Start up log Operating manual Cody 2.0 Place, date Signature Operator / Customer Signature Technician...

  • Page 59: Service Report

    Operating manual Cody 2.0 23 | Service Report Service Report Date Technicians Notes Work carried out, replacement parts installed...
  • Page 60 23 | Service Report Operating manual Cody 2.0 Date Technicians Notes Work carried out, replacement parts installed...
  • Page 61 Notizen / notes / appunti / remarques...
  • Page 62 Vollständigkeit / completeness / completo / complet Geprüft von / checked by / controlled da / contrôlé par ____________________________________________________ Datum / date / data / date ____________________________________________________ AUSTROFLAMM GMBH Austroflamm-Platz 1 A- 4631 Krenglbach Tel: +43 (0) 7249 / 46 443 www.austroflamm.com info@austroflamm.com...
