Installation

Installation must only be carried out by an authorized specialist company.
Before installing the stove, check that all movable parts are working. Any defects must be reported be-
fore the installation.
In the following sections we will give you information on
• the integration or attachment of appliance parts,
• the rearrangement of the flue pipe connection
• The connection of the combustion air supply, and on
• other important facts relating to the installation.
The protective equipment and tools listed are required for the following work steps
Type of protective equipment
Work equipment
Insulated tools
Torx wrench set
Allen key set
Fork wrench set
9.1

Execution

9.1.1

Mounting the guard rail

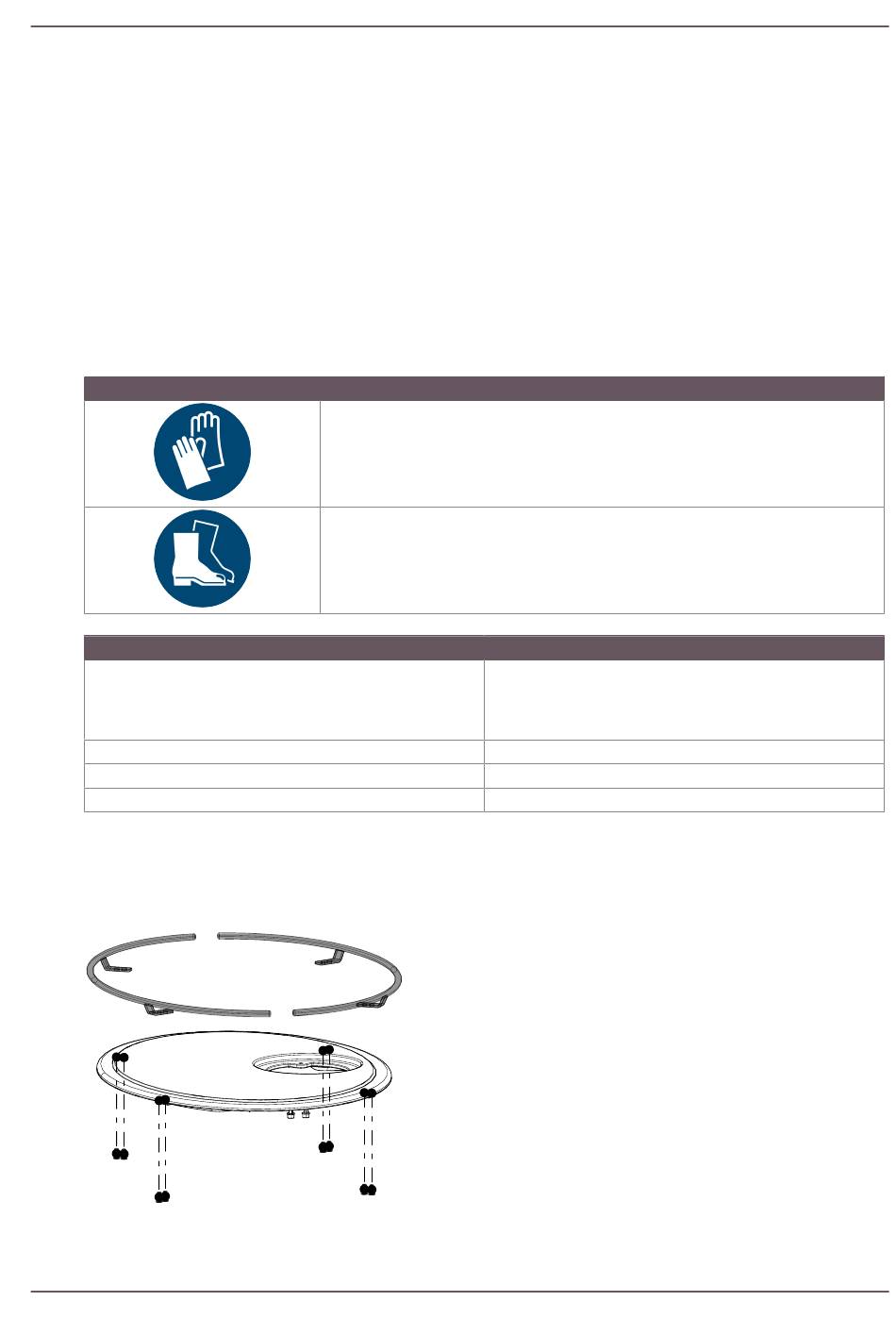

Fig. 7: Mounting the guard rail (view from
below)
EN
Safety gloves
Safety shoes
Activity
In order not to damage or scratch the varnish, no sharp
objects or tools should be used. Instead insulated tools
are used by preference when assembling and disas-
sembling stove parts.
Various installation jobs
Various installation jobs
Various installation jobs
ü The guard rail is installed in exactly the same way for
hotplates with either top flue connection or rear flue
connection.
ü If the rear side cladding is mounted, it must first be dis-
mounted. Proceed as described in the section Remov-
ing the side cladding [}on page 49].
1) Take the hotplate of your stove.
2) Install the guard rail from below on the hotplate as
shown and fix with the screws.
3) Proceed as described in the section Kochplatte AO +
AH [}on page 24].
4) Mounting the side cladding Proceed as described in
the section Mounting the side cladding [}on page
32].
