Reverse Video Sample; Auto Reverse Video Sample - Microcom 238B Operator's Manual

Chapter 4
^D57
6,1280,900,20,40,7,0,1,405,0,0
1,280,300,,6,,,,720,520,,,,,1
2,640,700,8,3,5,0,4,2,2,,,,,1
3,640,591,11,1,5,0,4,2,2,,,,,1
4,640,465,26,1,3,0,4,2,2,,,,,1
5,640,350,6,1,3,0,4,2,2,,,,,1
5,640,50,6,16,3,,4,5,150,,,,,0
^D56
^D2
Line
Microcom
Corporation
Thermal Printing Solutions
012345
^D3
4.8.2 True Reverse Video
The second method (True Reverse Video) will create a white character in a black character
cell. The size of the black box surrounding the character will be determined by the
character cell. Adjusting the size of the box that is surrounding the text is not possible using
this method.
It is possible to create a reverse video effect with barcodes using this method.
^D57
5,1280,900,0,0,7,2,0,1,0,0
1,640,700,8,1,5,0,4,2,2,,,,,8
2,640,591,11,1,5,0,4,2,2,,,,,8
3,640,465,26,1,3,0,4,2,2,,,,,8
4,640,350,6,1,3,0,4,2,2,,,,,8
4,640,50,6,16,3,,4,5,150,,,,,1
^D56
^D2
Microcom
Corporation
Thermal Printing Solutions
012345
^D3
238B Operator's Manual - 880053-0101

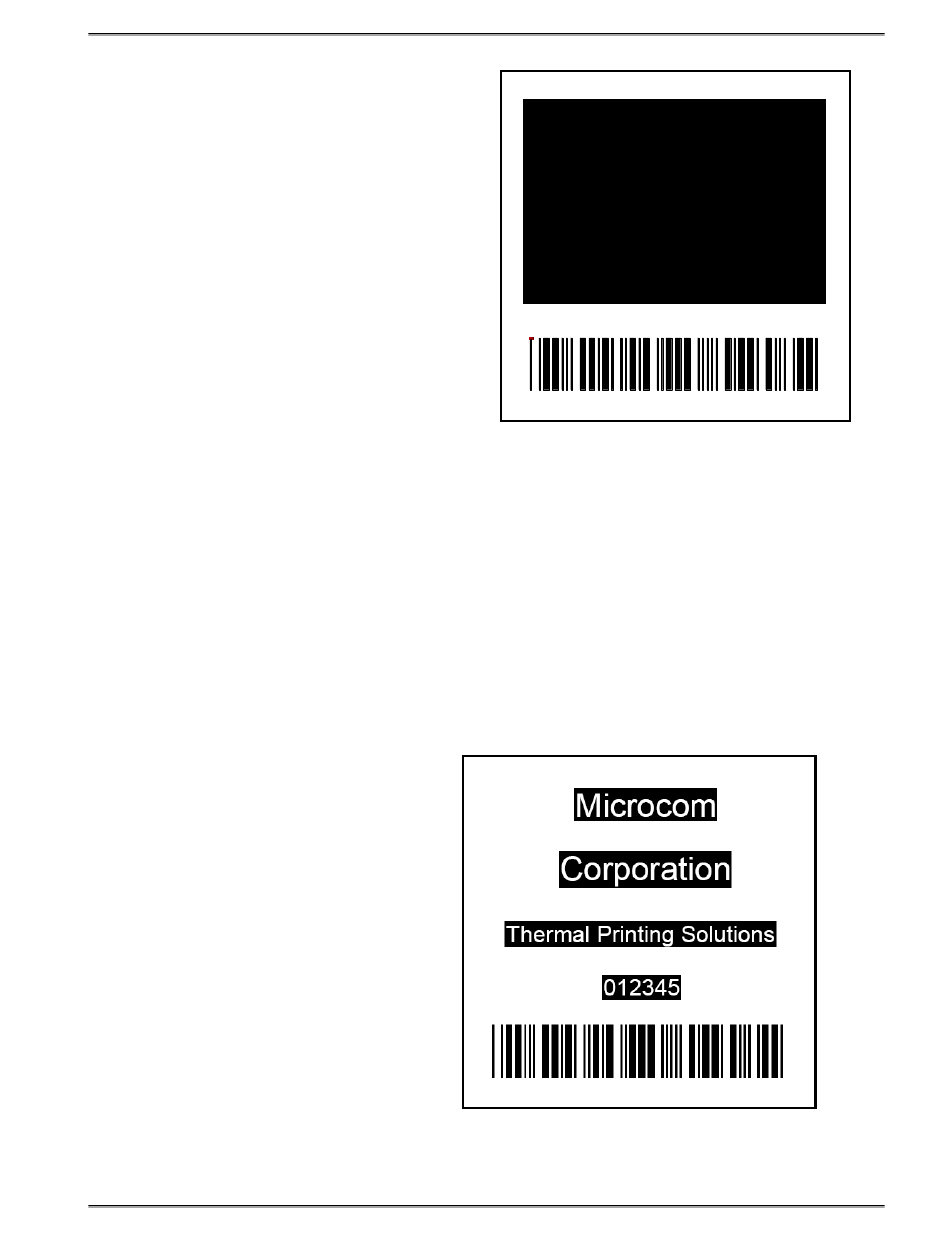

Figure 4-6

Reverse Video Sample

Figure 4-7

Auto Reverse Video Sample

Designing Labels with LDS
Micr oco m
Co rpor a tion
Thermal Printing Solutions
012345
4-19
