Getting Started
3.2 Connecting the Printer
The printer's may be interfaced to PC's, mini-computers, main frames, and special purpose
machines using the Mini-USB Type B connection.
3.2.1 Printer Power
The 238B is powered by an internal lithium-ion battery pack that is rated at 22.2V 5.2Ah
115.44Wh. The long life battery provides the ability to print up to 4000 standard sized
tickets per battery charge. Turn the printer ON by setting the power switch to the ON
position and wait for printer initialization to finish (<30 seconds). Turn the printer OFF by
setting the power switch to the CHARGE (OFF) position. Remember to turn OFF the printer
during idle times to extend the time between battery charges.
The internal battery is not user replaceable. The internal battery should only be serviced by
approved service providers.
CAUTION: Contains Lithium-Ion Battery.
To reduce the risk of fire or explosion, do not disassemble or dispose of
in fire, water or a place over 60 degrees C (140 degrees F).
Please recycle or dispose of the waste battery according to local
regulations.
ATTENTION: Contient Batterie Lithium-Ion.
Pour réduire les risque d'incendie ou d'explosion, ne pas démonter ou
la jeter dans le feu, l'eau ou un endroit plus de 60C (140F).
Veuiller recycler ou jeter la batterie usagée en accord avec les régles
locales.
Power
ON
Position
3.2.2 Battery Charger
Use only a Microcom-approved battery charger. Battery charging time is typically less than
6 hours. To charge the battery, set the printer power switch to the CHARGE (OFF) position,
plug the charger output cord into the CHARGE PORT of the printer, then plug the charger
AC power cord into a suitable AC outlet. The CHARGE PORT is located next to the printer
power switch. If the power switch is not in the CHARGE (OFF) position when the charger is
connected to the printer, the printer will power down but the battery will not be charged. If
this occurs, set the power switch to the CHARGE (OFF) position to begin charging the
battery.
The solid green light indicates the level charge in the battery. The flashing light means the
battery is charging.
3-2

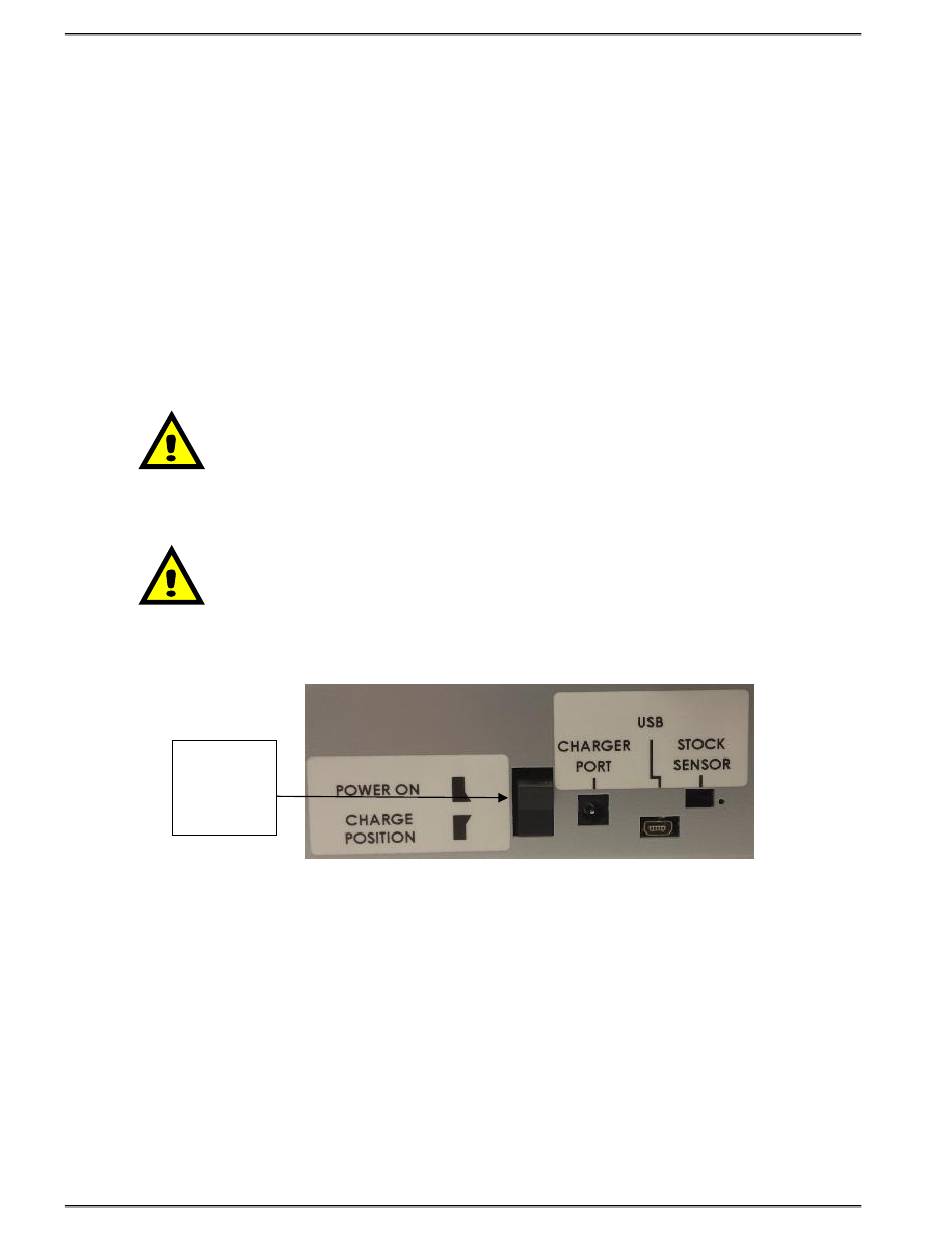

Figure 3-2

Power Switch
