This is a list of the header element mnemonics for the sample label in Figure 4-2:
HFM, LSX, LSY, WEB, GAP, DPS, LCB, AGD, SPG, OFX, OFY
5 672 300
Web Value
.0625" or
20 Dots
X beginning
This is the
origin; 1,1
4.4.1 HFM (Number of Fields in Layout)
HFM
This parameter is used to specify the number of fields in the layout. If more format fields are
defined than specified in the HFM parameter, they will be ignored and will not print. The
HFM was set to a value of 5 in the format used to create the sample in Figure 4-2. This
means that a total of five format fields are to be generated. If the HFM were changed to 4,
only the first four format fields would be generated.
4.4.2 LSX (Print Head Size X)
HFM,
This parameter is used to specify the width of the print head using dots as the unit of
measure. The maximum width of the LSX parameter is determined by the width of the print
head. LDS has been specifically designed to accommodate a variety of print head widths.
These are the LSX values that should be used for proper print registration with various print
heads:
Print Width
2.21" (56.13 mm)
2.24" (56.91 mm)
238B Operator's Manual - 880053-0101
20 38 4
Feed Direction
2" PRINT HEAD
M i c r o c o m
C o r p o r a t i o n
Thermal Printing Solutions
012345
Y beginning
LSX
2.24" or 672 Dots
(Total Print Head Dots)

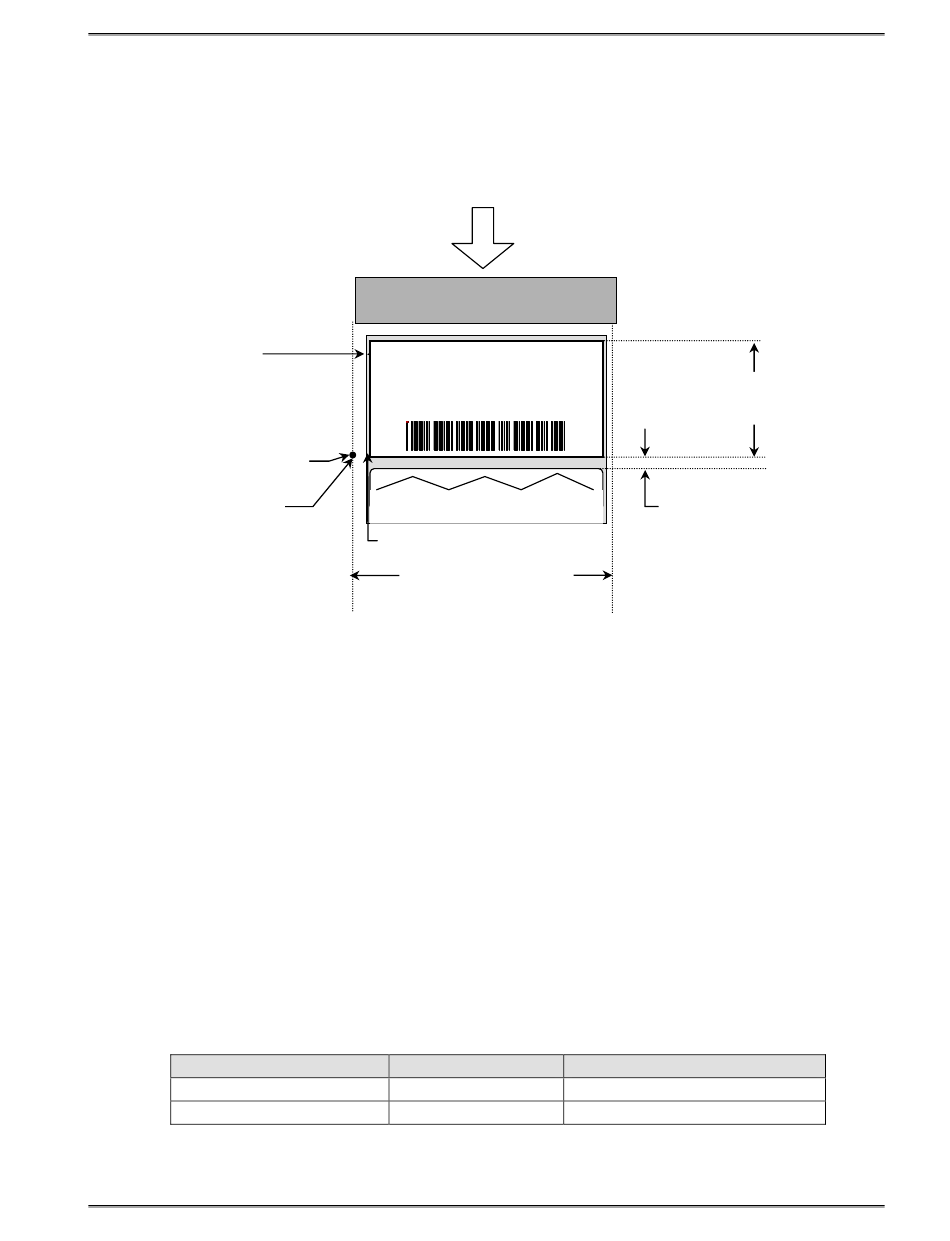

Figure 4-3 Header Elements
, LSX, LSY, WEB, GAP, DPS, LCB, AGD, SPG, OFX, OFY
LSX
, LSY, WEB, GAP, DPS, LCB, AGD, SPG, OFX, OFY
Dots/Inch
203
300
Table 4-1

Valid LSX Values

Designing Labels with LDS
0 1 272
Gap Value
.125" or 38 Dots
# of Dots (LSX Value)
448
672
0 0
LSY
1.0" or 300 Dots
