General design features

XFP is a submersible sewage and wastewater pump with a premium efficiency motor.
The water-pressure-tight, encapsulated, fully flood-proof motor and the pump section form a compact, robust,
modular construction.
6

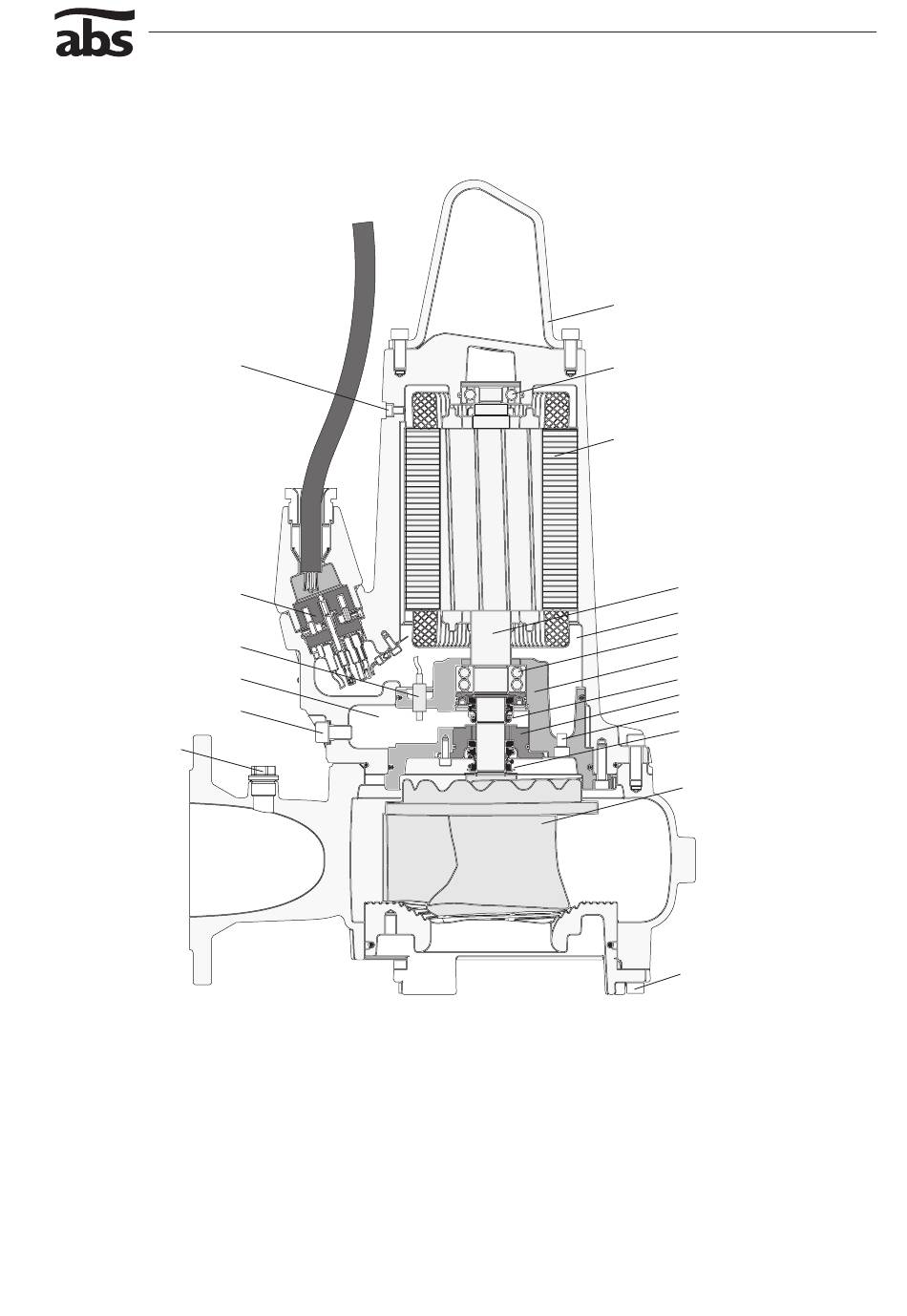

Fig 1. XFP cross-section
1 Pressure release screw
2 10-pole terminal block
3 Moisture sensor (Di)
4 Oil chamber
5 Oil chamber drain plug/
pressure test point
6 venting plug
1
2
3
4
5
7 Stainless steel lifting hoop
8 Upper bearing - single row
9 Motor with thermal sensors
10 Stainless steel shaft
11 Motor chamber
12 Lower bearing - double row
ABS submersible sewage pump XFP 80C - 150E
7
8
9
10
11
12
13
14
15
16
14
17
18
13 Bearing housing
14 Mechanical seals
15 Seal holding plate
16 Motor chamber drain plug/pres-
sure test point
17 Impeller - Contrablock version
18 Bottom plate adjustment screw
