Bottom Bearing Support Fixture - ABS XFP 80C-CB1 PE22/4-C-50 Workshop Manual

Submersible sewage pump
Hide thumbs
Table of Contents

Advertisement

1.7

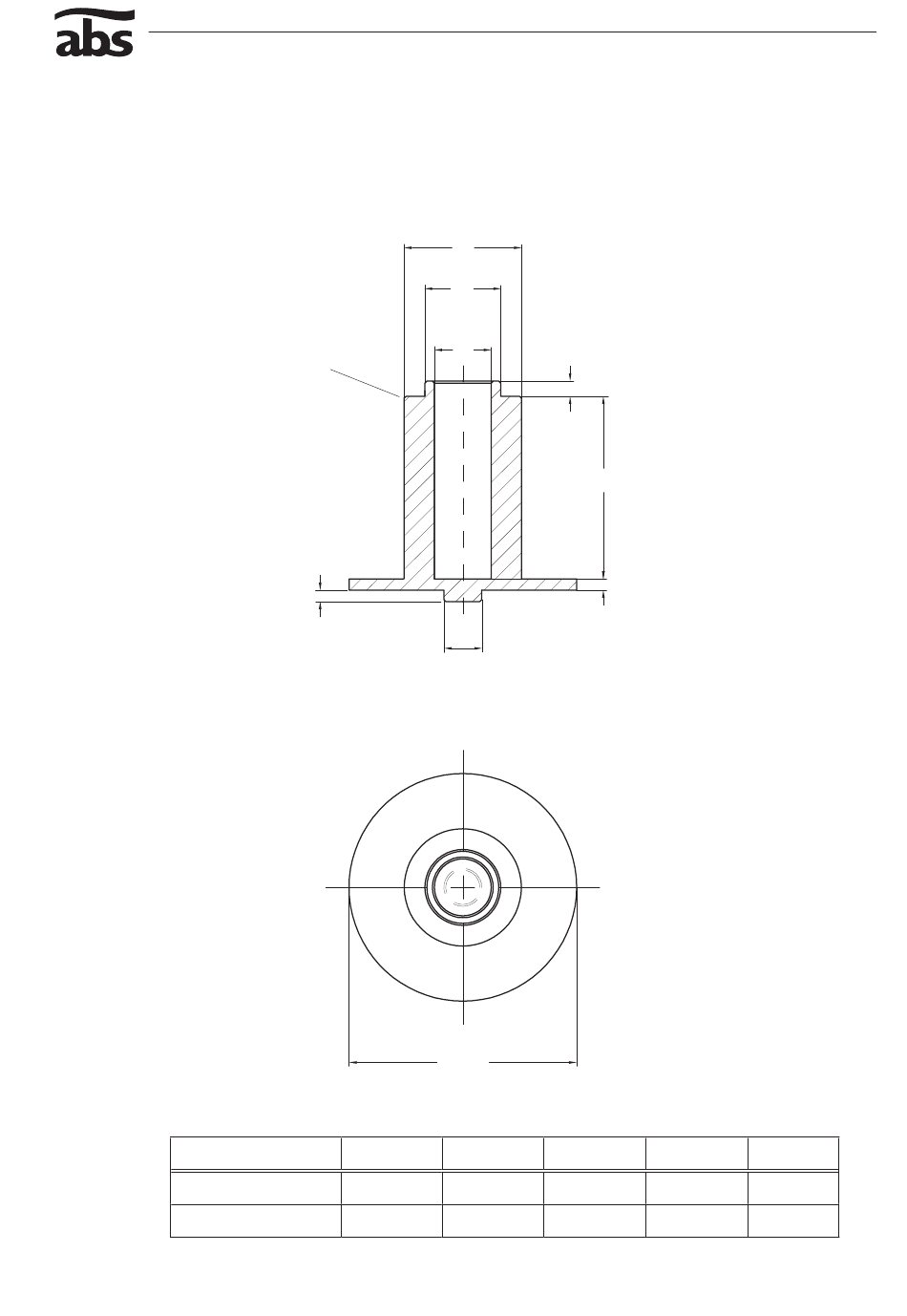

Bottom bearing support fixture

Material: MILD STEEL
Dimensions in mm
1 mm chamfers typical
80C, 100C
80E, 100E, 150E
6
A
XFP
Ø61.8
Ø79.8
ABS submersible sewage pump XFP 80C - 150E
A
B
C
D
E
6
Ø20
Ø120
B
C
Ø40
Ø30.2
Ø48
Ø35.2
Workshop Manual
3
D
E
8
96
3
124
