Stator Extraction Tool - ABS XFP 80C-CB1 PE22/4-C-50 Workshop Manual

4 Workshop Manual
ABS submersible sewage pump XFP 80C - 150E
1.8

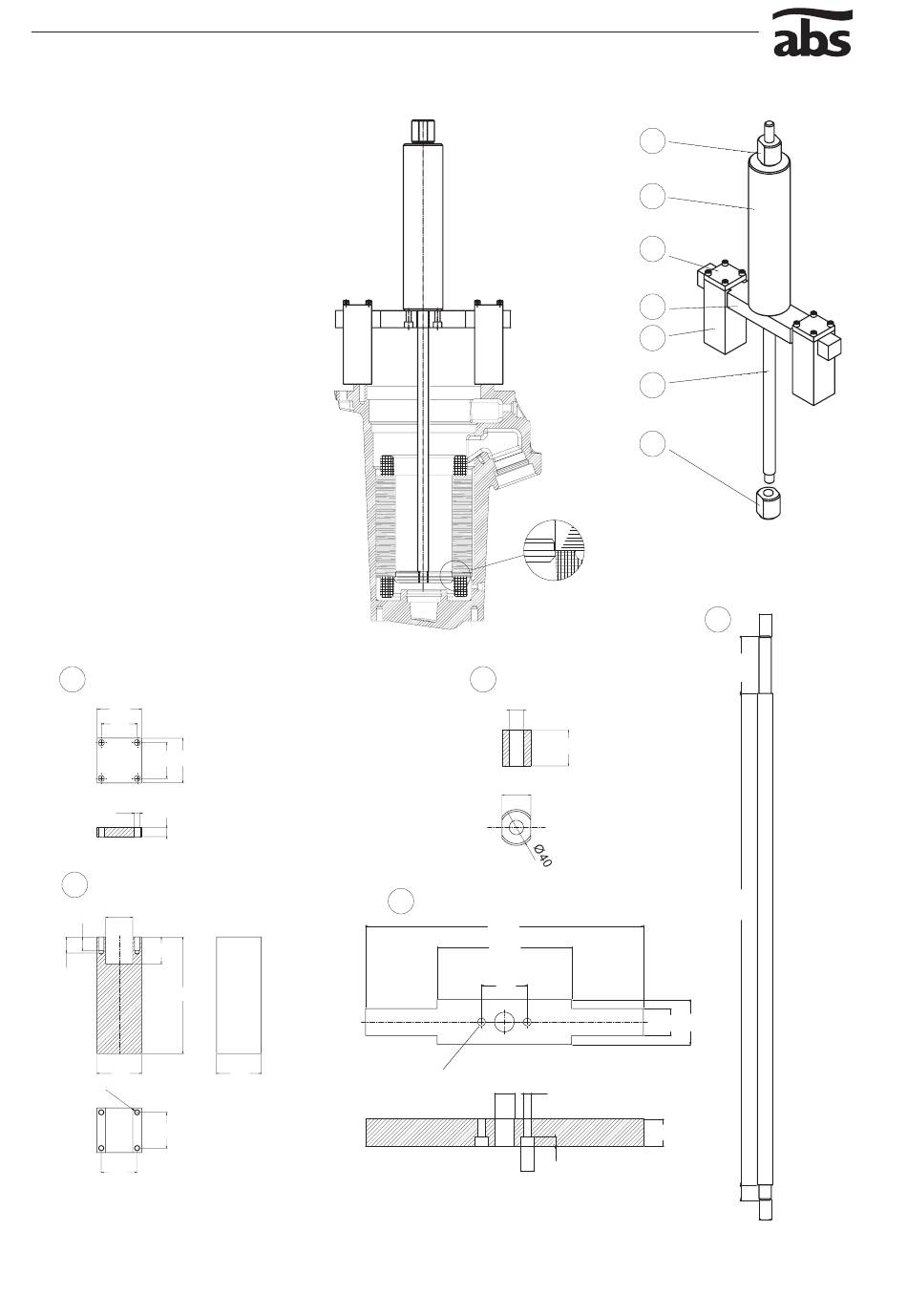

Stator extraction tool

Material: MILD STEEL
Dimensions in mm
Notes:
Part no. 2 is a hollow hydraulic cylinder HSS 106
for connection to a hydraulic hand pump.
Before applying hydraulic pressure, engage
the disc tool into position against the stator
core by tightening the adjusting nut (1).
The puller rod (6) is extended to adapt
to varying stator stack heights by using
a second adjusting nut to join it to an M16
threaded bar of required length.
