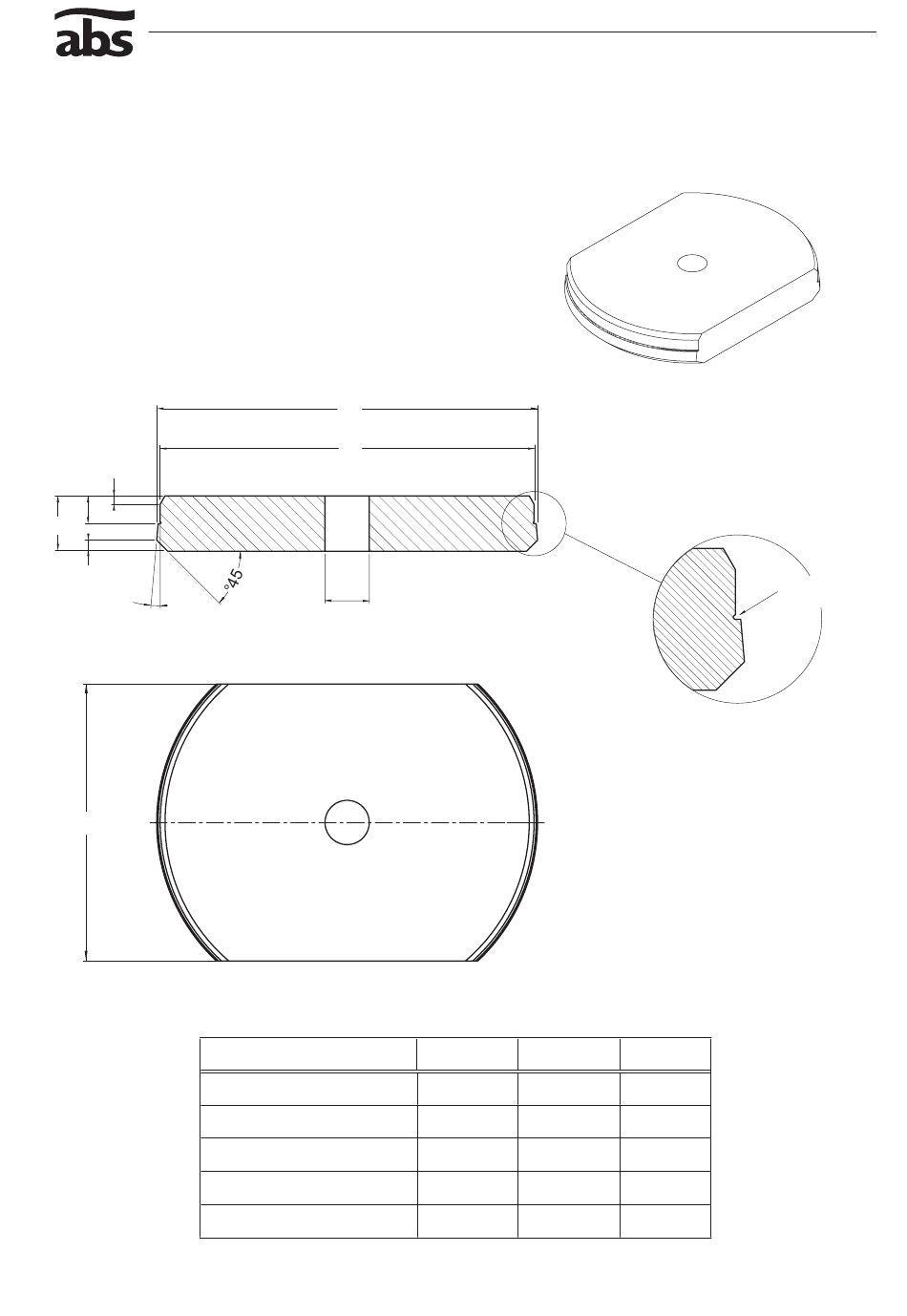

Stator puller disc tool

Material: MILD STEEL
Dimensions in mm
3
10
20
4
°5
C
PE 30/2, 40/2
PE 15/4, 22/4, 29/4, 13/6, 20/6
PE 55/2, 70/2, 110/2
PE 40/4, 60/4, 90/4
PE 30/6
A
B
M16
XFP motor
ABS submersible sewage pump XFP 80C - 150E
A
B
Ø81.5
Ø80
Ø91.5
Ø90
Ø111.5
Ø110
Ø126.5
Ø125
Ø136.5
Ø135
Workshop Manual
undercut
corner
C
60
70
85
95
100
5
