ABS submersible sewage pump XFP 80C - 150E
1.9.5

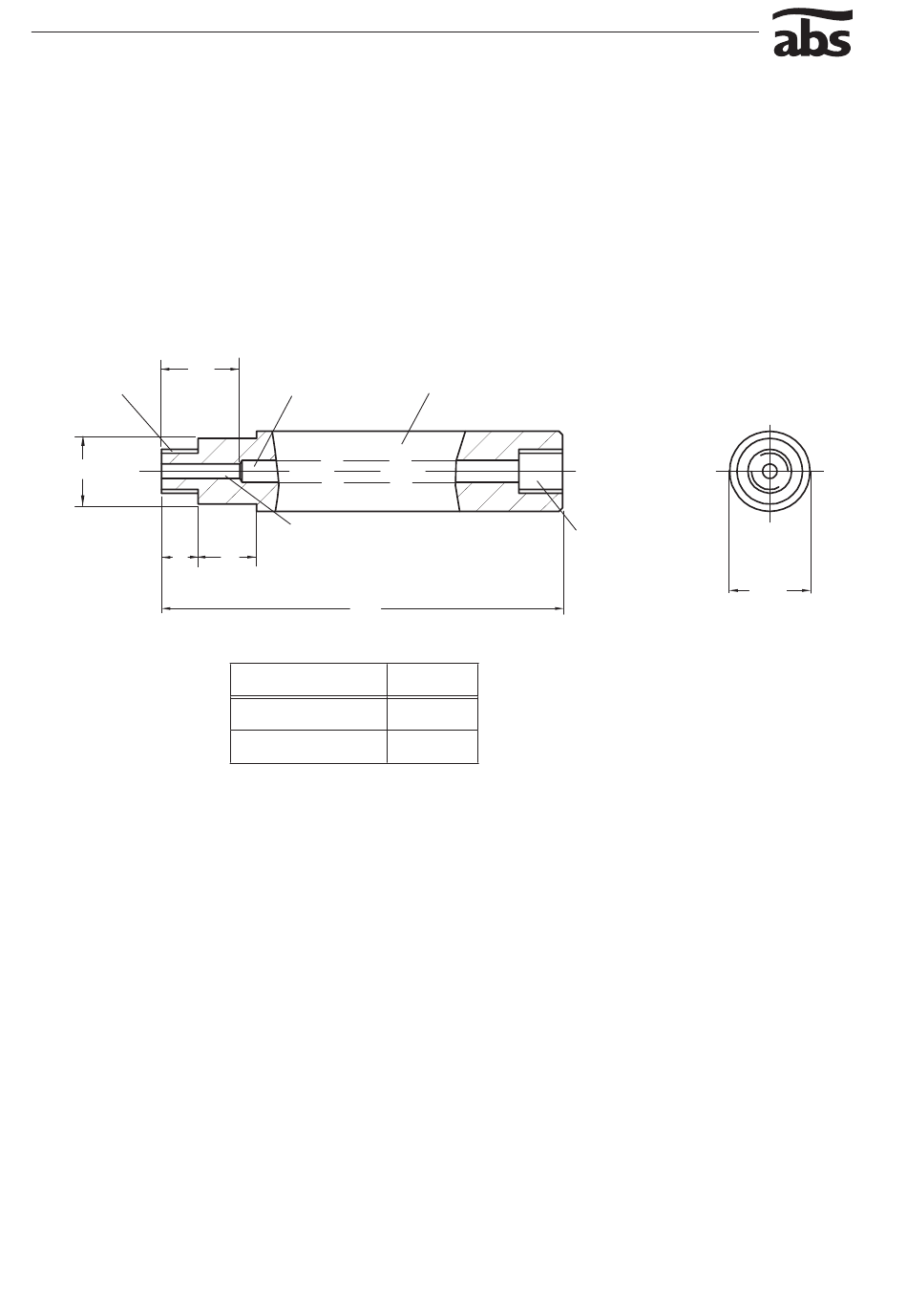

Pressure test tool - oil and motor chambers
Material: MILD STEEL
Dimensions in mm
XFP: 80C, 100C
80E, 100E, 150E
25
Thread M12
Ø18
10
Dia. 6 bore
Dia. 4 bore
A
110
Oil chamber tool
Motor chamber tool
knurl surface
Drill and tap to suit
pneumatic fitting
A
7
16
Ø22
