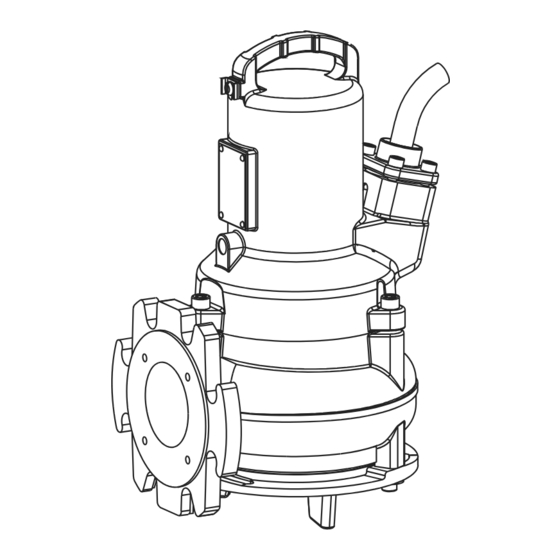

- Page 1 ABS submersible wastewater pump AS Installation and Operating Instructions www.absgroup.com...
-
Page 2: Table Of Contents
Installation and Operating Instructions Installation and Operating Instructions ABS submersible wastewater pump AS ABS submersible wastewater pump AS 0530 0631 0830 0630 0641 0840 Contents General..............................5 Application areas............................. 5 1.1.1 Approvals ..............................5 1.1.2 Explosion-proof approvals........................5 1.1.3 Particular comments on the use of explosion-proof pumps in explosive zones........5 Technical data ............................ -
Page 3: General
The maximum allowable temperature of the medium pumped is 40°C The ABS submersible sewage pumps of the AS series have been designed for the economical and reliable pumping of commercial, industrial and municipal sewage and can be installed dry or wet. -
Page 4: Nameplate
Installation and Operating Instructions ABS submersible wastewater pump AS 1.2.1 Nameplate We recommend that you record the data from the original nameplate on the nameplate illustration below and maintain it, together with your purchase receipt, as a proof for subsequent use. -
Page 5: Safety
Head Max. Max. Head Figure 4 Nameplate Standard Version Safety anything is not clear or you have any questions as to safety make certain to contact the manufacturer ABS. Transport During transport the unit should not be dropped or thrown. -
Page 6: Installation Example, Concrete Sump
Installation and Operating Instructions ABS submersible wastewater pump AS Installation example, concrete sump Legend Sump cover Venting line Sump cover Sleeve for cable protective duct to the control panel Chain Submersible pump Concrete sump. Pedestal Guide tube. Discharge line Non-return valve... -
Page 7: Wiring Diagrams
Installation and Operating Instructions ABS submersible wastewater pump AS ABS submersible wastewater pump AS 4.3.1 Wiring diagrams Figure 5 Three Phase Wiring Figure 8 Single Phase Wiring Figure 6 Three Phase Wiring with Temperature Limiter Figure 9 Single Phase Wiring with Temperature Limiter Figure 7 Three Phase Wiring with Temperature Limiter &... -
Page 8: Checking Direction Of Rotation
Installation and Operating Instructions ABS submersible wastewater pump AS ATTENTION It is important to us the correct capacitors with single phase pumps, use of incorrect capacitors will lead to motor burn-out 4.3.2 Checking direction of rotation The safety hints in the previous sections must be observed! -
Page 9: Commissioning
Lubricated-for-life ball bearings together with monitoring devices ensure optimum pump reliability provided that the pump has been connected and operated in accordance with the operating instructions. Should, nevertheless, a malfunction occur, do not improvise but ask your ABS customer service department for assistance. -
Page 10: Commentary On Maintenance Of Lifting Stations In Accordance With En 12056
NOTE The ABS warranty conditions are only valid provided that any repair work has been carried out in ABS approved workshop and where original ABS spare parts have been used. -
Page 11: Cleaning
Installation and Operating Instructions ABS submersible wastewater pump AS ABS submersible wastewater pump AS Cleaning If the pump is used for transportable applications then it should be cleaned after each usage by pumping clear the functioning of the automatic level control system be checked regularly. By switching the selection switch be cleaned. - Page 12 Installation and Operating Instructions ABS submersible wastewater pump AS...
-
Page 13: Declaration Of Conformity
