2.
INSTALLATION
2.1
UPS EQUIPPED WITH THERMAL PROBE OPTION
To install the "battery" thermal probe for external battery cabinet already assembled
by the manufacturer on the UPS, carry out all the operations specified below.
When inserting the probe into the battery compartment or into the external battery
cabinet, we recommend that you pay special attention not to short-circuit the battery.
2.1.1 Thermal probe for external battery cabinet UPS 100...800kVA 3ph-3ph UPS;
The present thermal probe is already installed in the UPS as shown in the photos
below. So remove the panel of the external battery cabinet and place the thermal probe
between the battery trays on free air, in central position if possible.

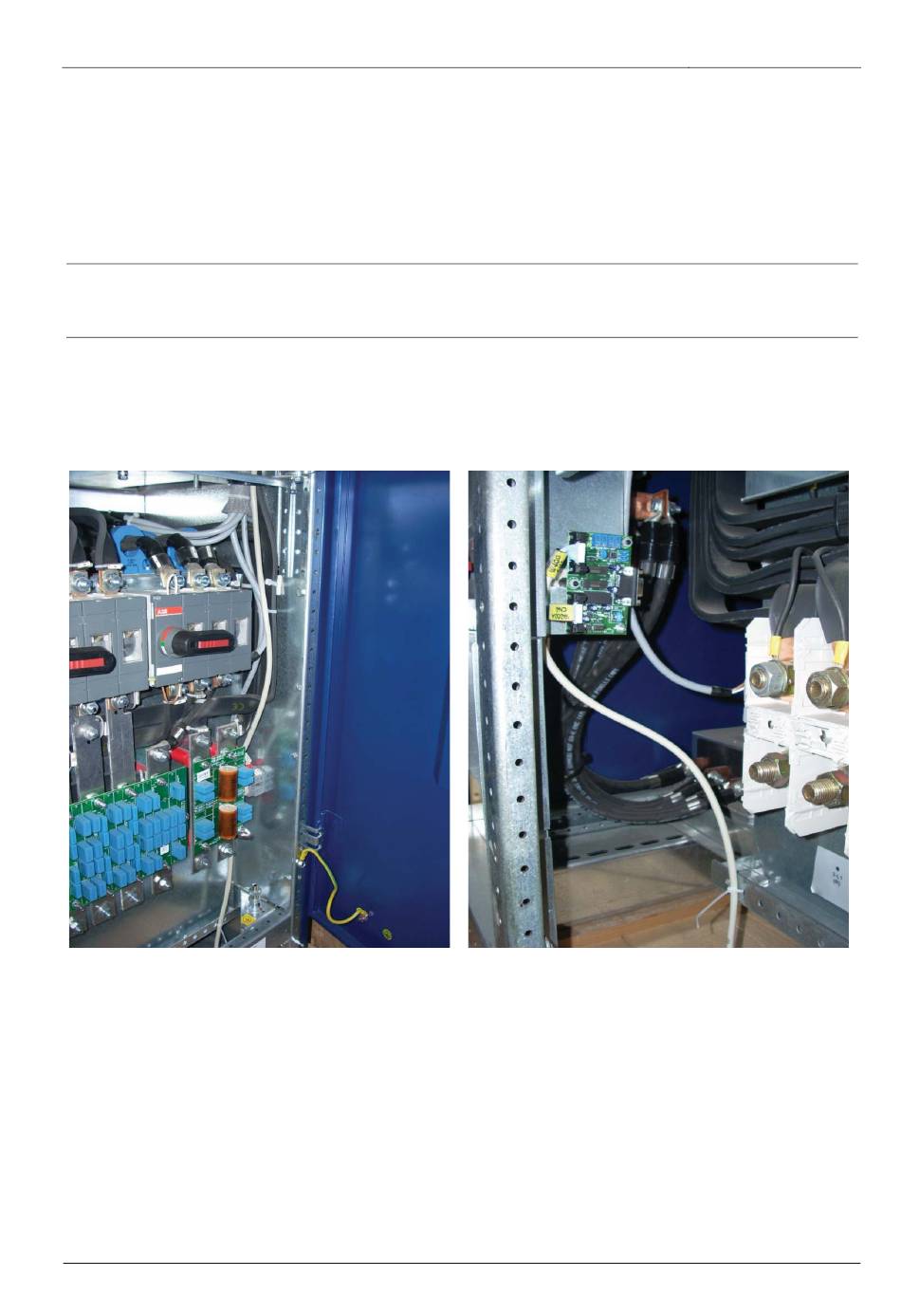

Picture 1 – Position of thermal probe for external
battery cabinet for 100...160kVA 3ph-3ph UPS
First issue 10/01/11
100...800kVA UPS OPTIONS manual
WARNING
Picture 2 – Position of thermal probe for external
battery cabinet for 200...300kVA 3ph-3ph UPS
JUD413767
9 / 32
