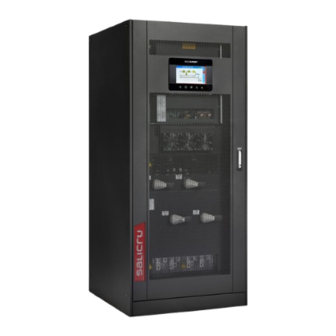

Salicru SLC X-PERT Series Option Manual
80.. 400 kva
Hide thumbs
Also See for SLC X-PERT Series:
- User manual (62 pages) ,
- User manual (68 pages) ,
- Product manual (35 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Salicru SLC X-PERT Series
Summary of Contents for Salicru SLC X-PERT Series
- Page 1 OPTIONS MANUAL UNINTERRUPTIBLE POWER SUPPLY (UPS) SLC X-PERT 80.. 400 kVA...
- Page 2 INGENIO PLUS...
- Page 3 General index 5. GALVANIC INSULATION AND 1. SRC-2 RELAY CARD OPTION ADAPTATION TRANSFORMER 1.1. CONTENTS OF PACKAGE 5.1. INTRODUCTION 1.2. FUNCTION 5.2. GENERAL DESCRIPTION 1.3. INSTALLATION 5.2.1. EXTERNAL TRANSFORMER CABINET 1.4. OPERATION 5.2.1.1. CONNECTION OF THE EXTERNAL CABINET 2. THERMAL PROBE OPTION 5.2.2.
-
Page 4: Contents Of Package
1. SRC-2 RELAY CARD OPTION 1.2. FUNCTION 1.1. CONTENTS OF PACKAGE The SRC-2 card is used to repeat to a remote location some The package of the SRC-2 device contains the following UPS status and alarms, by means of SPDT (Single-Pole-Double- component: Throw) voltage free contacts. -
Page 5: Operation
COMMON ALARM MAINS FAULT SRC-2 BATTERY AUTONOMY END INVERTER OUT OF TOLERANCE BYPASS FEEDS LOAD Fig. 4. SRC-2 board installation for SLC X-PERT 200-250- Fig. 5. SRC-2 terminal board 300 kVA 1.4. OPERATION Start up the UPS following the correct procedure (refer to the UPS Operating Manual). - Page 6 2. THERMAL PROBE OPTION 2.1. FUNCTIONS 2.2. INSTALLATION The thermal probe for battery cabinet accessory allow to carry 2.2.1. UPS EQUIPPED WITH THERMAL PROBE OPTION out a thermal compensation by measuring the temperature of the battery compartment / cabinet. To install thermal probe for battery cabinet already assembled The UPS is able to recognize the presence of the temperature by the manufacturer on the UPS it is necessary to switch off probe automatically, to carry out the measurement and to...
- Page 7 2.2.2.2. Installation To install thermal probe for battery cabinet it is necessary to switch off completely the UPS, or transfer the load on MBCB (Manual Bypass). Refer to the operating manual of the UPS for the correct procedure. WARNING!: During manual bypass operation the load is supplied directly by the mains, therefore continuous supply is not THERMAL guaranteed.
-
Page 8: Remote Panel Option
3. REMOTE PANEL OPTION 3.1. CONTENTS OF PACKAGE 3.2. FUNCTION The package of the REMOTE PANEL device contains the The remote panel is used to display 4 independent visual following components: alarms. Each event activates the flashing of the last LED Remote panel “General Alarm”... - Page 9 SRC-2 Fig. 14. Terminal board M1 of UPS’ board SRC-2 for SLC Fig. 15. Detail of M1 connection terminals X-PERT 400 kVA SRC-2, M1 board Remote panel board Fig. 17. Schematic example of the connection between the remote panel and UPS’ board SRC-2 Fig.
- Page 10 3.4. OPERATION Start the UPS following the start-up procedure (refer to the operating manual of the UPS). At the end of the UPS start-up, in case of normal operation, namely with no alarm present, the indication “UPS OK” must be displayed on the remote panel (green LED).
- Page 11 4. REMOTE CONNECTION RS485 INTERFACE 4.1. CONTENTS OF PACKAGE 4.2. FUNCTION The package of the REMOTE CONNECTION RS485 device A subset of the Modbus-RTU protocol is implemented over an contains the following components: RS485 bus. RS485 Interface board SLOT-REM-PV RS485 •...
-
Page 12: Cable Specification
4.4.2. CABLE SPECIFICATION The minimum specification requirements for the cable used to connect the data network are listed below. twisted pairs Type of cable: ˆ Minimum cross section: 22 AWG ˆ provided Shield on each pair: ˆ Cable shielding: copper braid ˆ... - Page 13 4.4.5. BIASING THE DATA NETWORK For the impedance matching of the communication network • (termination), the resistors of the devices connected at the To bias the data line, simply move dip-switch 1 and dip-switch beginning and at the end of the transmission line must be used. 3 to ON.
- Page 14 The following registers are supported by function code 03: REGISTER DESCRIPTION FORMAT RANGE NOTES Booster Input Analog Measures Input voltage RMS (phase U) 0-15 Integer 0/9999 x10 V Input voltage RMS (phase V) 0-15 Integer 0/9999 x10 V Input voltage RMS (phase W) 0-15 Integer 0/9999...
- Page 15 REGISTER DESCRIPTION FORMAT RANGE NOTES A17 – Retransfer blocked A18 – MBYP Close A19 – OCB Open A20 – Overload A21 – Thermal image A22 – Bypass switch A23 – EPO Close A24 – High temperature boolean A25 – Inverter off A26 –...
- Page 16 REGISTER DESCRIPTION FORMAT RANGE NOTES S01 – Booster Ok S02 – Battery Ok S03 – Inverter Ok S04 – Inverter feed load S05 – Inverter Synchronized S06 – Bypass Ok S07 – Bypass feed load S08 – Slave Synchronized boolean S09 –...
- Page 17 REGISTER DESCRIPTION FORMAT RANGE NOTES UPS serial number (ch.9) 0-15 Ascii 0/255 OEM serial number (ch.0) 0-15 Ascii 0/255 OEM serial number (ch.1) 0-15 Ascii 0/255 OEM serial number (ch.2) 0-15 Ascii 0/255 OEM serial number (ch.3) 0-15 Ascii 0/255 OEM serial number (ch.4) 0-15 Ascii...
- Page 18 REGISTER DESCRIPTION FORMAT RANGE NOTES Inverter frequency 0-15 Integer 0/999 x10 Hz Output voltage RMS (phase U) 0-15 Integer 0/9999 x10 Vac Output voltage RMS (phase V) 0-15 Integer 0/9999 x10 Vac Output voltage RMS (phase W) 0-15 Integer 0/9999 x10 Vac Output current RMS (phase U) 0-15...
-
Page 19: General Description
5. GALVANIC INSULATION AND ADAPTATION TRANSFORMER 5.2.1.1. CONNECTION OF THE EXTERNAL CABINET 5.1. INTRODUCTION For the UPS a single input for rectifier and bypass is provided. The scope of this manual is to briefly describe the parts that Therefore the isolating transformer supplies also the rectifier, compose the isolating section of the rectifier and / or bypass Fig. -
Page 20: Operating Procedures
5.2.3. OPERATING PROCEDURES As wrong start-up procedures can cause the interruption of the power supply and/or bad damage to the equipment the manufacturer declines any responsibility of damage to people or thing due to the nonfulfilment of the given instructions. 5.2.3.1. - Page 21 : ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................INSTALLATION AND USER MANUAL INGENIO PLUS 60-160kVA UPS OPTIONS...
- Page 22 Tel. +34 93 848 24 00 / 902 48 24 01 (Calling from Spain) Fax +34 93 848 22 05 sst@salicru.com SALICRU.COM Information about the technical support and service network (TSS), the sales network and the warranty is available at our website: www.salicru.com...
