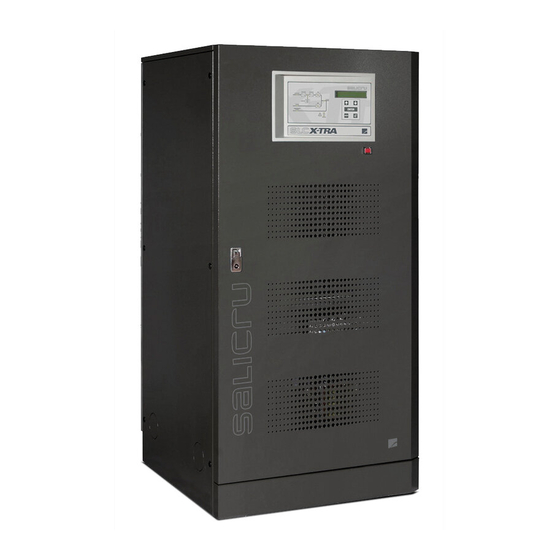

- Page 1 UNINTERRUPTIBLE POWER SUPPLY (UPS) + LIGHTING FLOW DIMMER STABILIZERS (ILUEST) + SWITCH MODE POWER SUPPLY + STATIC INVERTERS + PHOTOVOLTAIC INVERTERS + VOLTAGE STABILIZERS AND POWER LINE CONDITIONERS OPTIONS SLC X-TRA 100-800 kVA TECHNICAL MANUAL S.T.S.
-
Page 2: Table Of Contents
100…800kVA UPS OPTIONS manual Index SRC RELAY CARD OPTION ............9 CONTENTS OF PACKAGE ..............9 FUNCTION..................10 INSTALLATION ....................10 UPS 100...800KVA 3PH-3PH ................10 OPERATION ....................11 THERMAL PROBE OPTION ............12 FUNCTIONS ..................12 INSTALLATION................. 13 UPS EQUIPPED WITH THERMAL PROBE OPTION ........13 INSTALLATION OF THE OPTIONAL THERMAL PROBE KIT .....15 REMOTE PANEL OPTION.............. - Page 3 100…800kVA UPS OPTIONS manual CONFIGURATIONS ................32 THREEPHASE UPS 100...800KVA ..............32 START-UP PROCEDURE ................32 SHUT-DOWN PROCEDURE ................33 MANUAL BY-PASS PROCEDURE FOR STAND-ALONE CONFIGURATION ..................33 MANUAL BYPASS TRANSFER PROCEDURE..........33 RETURN FROM MANUAL BYPASS PROCEDURE........34 MANUAL BY-PASS PROCEDURE FOR PARALLEL CONFIGURATION ..................34 MANUAL BYPASS TRANSFER PROCEDURE..........34 RETURN FROM MANUAL BYPASS PROCEDURE........35 JUD413767...
- Page 4 100…800kVA UPS OPTIONS manual Index of pictures Picture 1 – Contents of the package ......................9 Picture 2 – Front cover plate removal ......................10 Picture 3 – SRC installation........................10 Table 1 – SRC Relays Map ........................11 Picture 1 – Battery compensation algorithm....................12 Picture 1 –...
-
Page 5: A) Src Relay Card Option
100…800kVA UPS OPTIONS manual SRC RELAY CARD OPTION CONTENTS OF PACKAGE This optional device is provided with the following components: SRC Interface Card 4 plastic nuts Installation and User Manual (this document) Picture 1 – Contents of the package JUD413767 9 of 69 First issue 10/01/11 5 / 32... -
Page 6: Function
100…800kVA UPS OPTIONS manual FUNCTION The SRC card is used to repeat to a remote location some UPS status and alarms, by means of SPDT (Single-Pole-Double-Throw) voltage free contacts. In normal condition with no Alarms and all Status Ok, all the relays Status are energized. -
Page 7: Operation
100…800kVA UPS OPTIONS manual OPERATION Start up the UPS following the correct procedure (refer to the Operating Manual). Verify that without any alarms and with all status present all the relays are energized. According to the Table1 it is possible to simulate the Alarms/Status and verify that they are transmitted remotely. -
Page 8: B) Thermal Probe Option
100…800kVA UPS OPTIONS manual THERMAL PROBE OPTION FUNCTIONS The following devices, namely the “battery" thermal probe, the “battery and UPS modules” thermal probe as well as the thermal probe for external battery cabinet allow to carry out a thermal compensation by measuring the temperature of the battery compartment / cabinet. -
Page 9: Installation
100…800kVA UPS OPTIONS manual INSTALLATION UPS EQUIPPED WITH THERMAL PROBE OPTION To install the “battery" thermal probe for external battery cabinet already assembled by the manufacturer on the UPS, carry out all the operations specified below. WARNING When inserting the probe into the battery compartment or into the external battery cabinet, we recommend that you pay special attention not to short-circuit the battery. - Page 10 60…800kVA UPS OPTIONS manual Picture 3 – Position of thermal probe for external battery cabinet for 400…800kVA 3ph-3ph UPS At the end of the abovementioned operations, close/place the front panel of the UPS and of the external battery cabinet back to its position and start up the UPS, following the instructions indicated in the operating manual of the unit.
-
Page 11: Installation Of The Optional Thermal Probe Kit
100…800kVA UPS OPTIONS manual INSTALLATION OF THE OPTIONAL THERMAL PROBE KIT 2.2.1 Thermal probe for external battery cabinet for UPS 100…800kVA 3ph-3ph Follow the instructions below to carry out the installation of the thermal probe kit for the external battery cabinet. Switch the UPS off completely, transferring the load to Manual Bypass if needed (refer to the operating manual for the correct procedure). -
Page 12: C) Remote Panel Option
100…800kVA UPS OPTIONS manual REMOTE PANEL OPTION CONTENTS OF PACKAGE The package of the REMOTE PANEL device contains the following components: Remote panel AC/DC power supply (230 Vac – 12 Vdc) Installation and user manual (this document) ATTENTION For the connection you need a cable twisted cat.5 not included on the package. Picture 1 –... -
Page 13: Function
100…800kVA UPS OPTIONS manual FUNCTION The remote panel is used to display 4 independent visual alarms. Each event activates the flashing of the last LED “General Alarm” and an acoustic signal that can be silenced by the user. The regular operating conditions of the UPS are indicated by the lighting of LED “UPS OK”. - Page 14 100…800kVA UPS OPTIONS manual Picture 3 – Remote panel connector CN2A REMOTE PANEL Relay Alarms Pin M1 Pin CN2A RL 1 General alarm RL 2 Mains failure RL 3 Battery autonomy end RL 4 Inverter out of tolerance Table 1 – UPS-Remote panel connections Picture 4 –...
-
Page 15: Operation
100…800kVA UPS OPTIONS manual Picture 5 – Remote panel: cable hole Then close the remote panel and feed it via the AC/DC power supply provided with. OPERATION Start the UPS following the start-up procedure (refer to the operating manual of the UPS). -
Page 16: D) Remote Connection Rs485 Interface
60…800kVA UPS OPTIONS manual REMOTE CONNECTION RS485 INTERFACE CONTENTS OF PACKAGE This optional device is provided with the following components: RS485 Interface Card SLOT-REM-PV Installation and User Manual (this document) Picture 1 – Contents of the package 20 of 69 JUD413767 First issue 10/01/11 16 / 32... -
Page 17: Function
100…800kVA UPS OPTIONS manual FUNCTION A subset of the Modbus-RTU protocol is implemented over an RS485 bus. UPS works as a client in a client-server architecture, that is, the UPS is normally in listening mode. Only in case of a request it will answer and therefore occupy the line for the transmission. -
Page 18: Mod-Bus Description
100…800kVA UPS OPTIONS manual Picture 2 – Mounting position of the SLOT-REM-PV Picture 3 – RS485 Board after the installation card (100...800kVA series FXS) (100...800kVA series FXS) MOD-BUS DESCRIPTION Protocol ModBus is a high-level communication protocol (layer 7 of the OSI model) which defines the format and the communication mode between a “Master”... -
Page 19: Cable Specification
100…800kVA UPS OPTIONS manual CABLE SPECIFICATION The minimum specification requirements for the cable used to connect the data network are listed below. ¾ Type of cable: twisted pairs ¾ Minimum cross section: 22 AWG ¾ Shield on each pair: provided ¾... -
Page 20: Biasing The Data Network
100…800kVA UPS OPTIONS manual BIASING THE DATA NETWORK To bias the data line, simply move dip-switch 1 and dip-switch 3 to ON. Picture 6 – Data line biasing on card PB369 RS485 CONFIGURATION The default configuration parameters of RS485 ModBus communication that can be changed via the interface software are: ¾... -
Page 21: Operation
100…800kVA UPS OPTIONS manual OPERATION After the installation of the Board SLOT-REM-PV interface it is necessary to set the properly address of the Mod-Bus device. You can change the MOD- BUS address from UPS display. If the programmation of the new Mod-Bus address will be fine, the led will change the colour, orange-yellow-green, if an error occur, the led will became red and a message will be displayed. - Page 22 100…800kVA UPS OPTIONS manual The following registers are supported by function code 03: REGISTER DESCRIPTION FORMAT RANGE NOTES Booster Input Analog Measures Input voltage RMS (phase U) 0-15 Integer 0/9999 x10 V Input voltage RMS (phase V) 0-15 Integer 0/9999 x10 V Input voltage RMS (phase W) 0-15...
- Page 23 100…800kVA UPS OPTIONS manual A17 – Retransfer blocked A18 – MBYP Close A19 – OCB Open A20 – Overload A21 – Thermal image A22 – Bypass switch A23 – EPO Close A24 – Inv High temperature/ DC fuse blow boolean A25 –...
- Page 24 100…800kVA UPS OPTIONS manual S01 – Booster Ok S02 – Battery Ok S03 – Inverter Ok S04 – Inverter feed load S05 – Inverter Synchronized S06 – Bypass Ok S07 – Bypass feed load S08 – Boost charge boolean S09 – Inverter Master Sync boolean UPS name (ch.0) 0-15...
- Page 25 100…800kVA UPS OPTIONS manual OEM serial number (ch.3) 0-15 Ascii 0/255 OEM serial number (ch.4) 0-15 Ascii 0/255 OEM serial number (ch.5) 0-15 Ascii 0/255 OEM serial number (ch.6) 0-15 Ascii 0/255 OEM serial number (ch.7) 0-15 Ascii 0/255 OEM serial number (ch.8) 0-15 Ascii 0/255...
- Page 26 100…800kVA UPS OPTIONS manual Output power 0-15 Integer 0/99999 x 10 kVA Output power 0-15 Integer 0/99999 x 10 kW Load percentage (phase U) 0-15 Integer 0/999 Load percentage (phase V) 0-15 Integer 0/999 Load percentage (phase W) 0-15 Integer 0/999 UPS temperature 0-15...
-
Page 27: E) Galvanic Insulation And Adaptation Trasformer
100…800kVA UPS OPTIONS manual GALVANIC INSULATION AND ADAPTATION TRASFORMER INTRODUCTION The scope of this manual is to briefly describe the parts that compose the isolating section of the bypass line and to guide the user to a correct installation of the equipment in its operating environmnent. - Page 28 100…800kVA UPS OPTIONS manual CONFIGURATIONS THREEPHASE UPS 100...800KVA Also for three phase line has a separate input for the bypass line. In figure 2 the interconnection diagram between transformer and UPS is shown. Picture 2 – Connection of the transformer cabinet – UPS 3Ph 100...800kVA START-UP PROCEDURE Please follow the below described UPS start-up procedure ATTENTION...
- Page 29 100…800kVA UPS OPTIONS manual SHUT-DOWN PROCEDURE Please procede as follows to shut-down the UPS. Open OCB. Open BCB. Open SBCB. Open RCB. Open QRA. MANUAL BY-PASS PROCEDURE FOR STAND-ALONE CONFIGURATION MANUAL BYPASS TRANSFER PROCEDURE Please procede as follows to put the UPS in manual bypass. ATTENTION When the UPS is in manual-bypass the load is supplied directly by the mains and therefore continuity is not guaranteed.
- Page 30 100…800kVA UPS OPTIONS manual RETURN FROM MANUAL BYPASS PROCEDURE In order to return the UPS to normal operating condition please proceed as described below. With “NORMAL-BYPASS” on Bypass and MBCB closed: Close RCB and follow instructions given on the display. N.B.: MBCB is optional for 400-800kVA line.
- Page 31 100…800kVA UPS OPTIONS manual RETURN FROM MANUAL BYPASS PROCEDURE The system is in Manual Bypass condition with one ore more MBCB switches closed and all the Bypass Switches in “Bypass” position according to the procedure. To restart the system with continuity of the loads, the RCB of all the UPS’s of the system must be closed.
- Page 32 BARCELONA Tel. +34 93 848 24 00 902 48 24 00 (Only Spain) Fax. +34 94 848 11 51 salicru@salicru.com Tel. (S.T.S.) +34 93 848 24 00 902 48 24 01 (Only Spain) Fax. (S.T.S.) +34 93 848 22 05 sst@salicru.com...
