Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
(For skip transponder programming, see following page.)

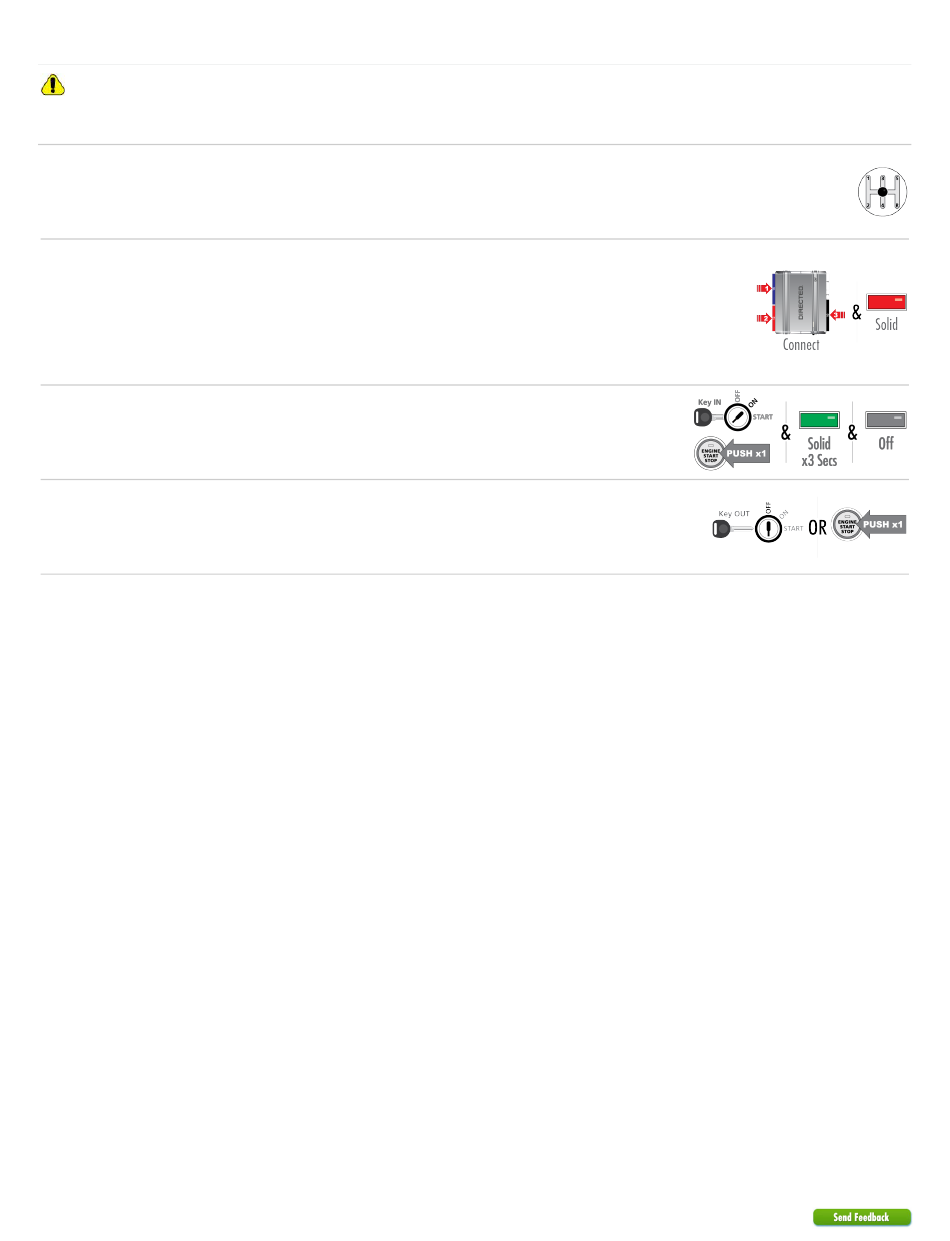

Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2
2. Connect the 12-pin.
3. Connect the 10-pin.
When the LED turns ON solid red, proceed with the next step.
Turn the key to the ON position,
OR
3
Press the Push-to-Start (PTS) button once (1),
The LED will remain ON solid green for 3 seconds, then will turn OFF.
Press once (1) more on the PTS button.
4
OR
Turn the key to the OFF position.
You have successfully completed the module programming sequence.
13
403.FORD11 2.07 2013 Ford Fusion
