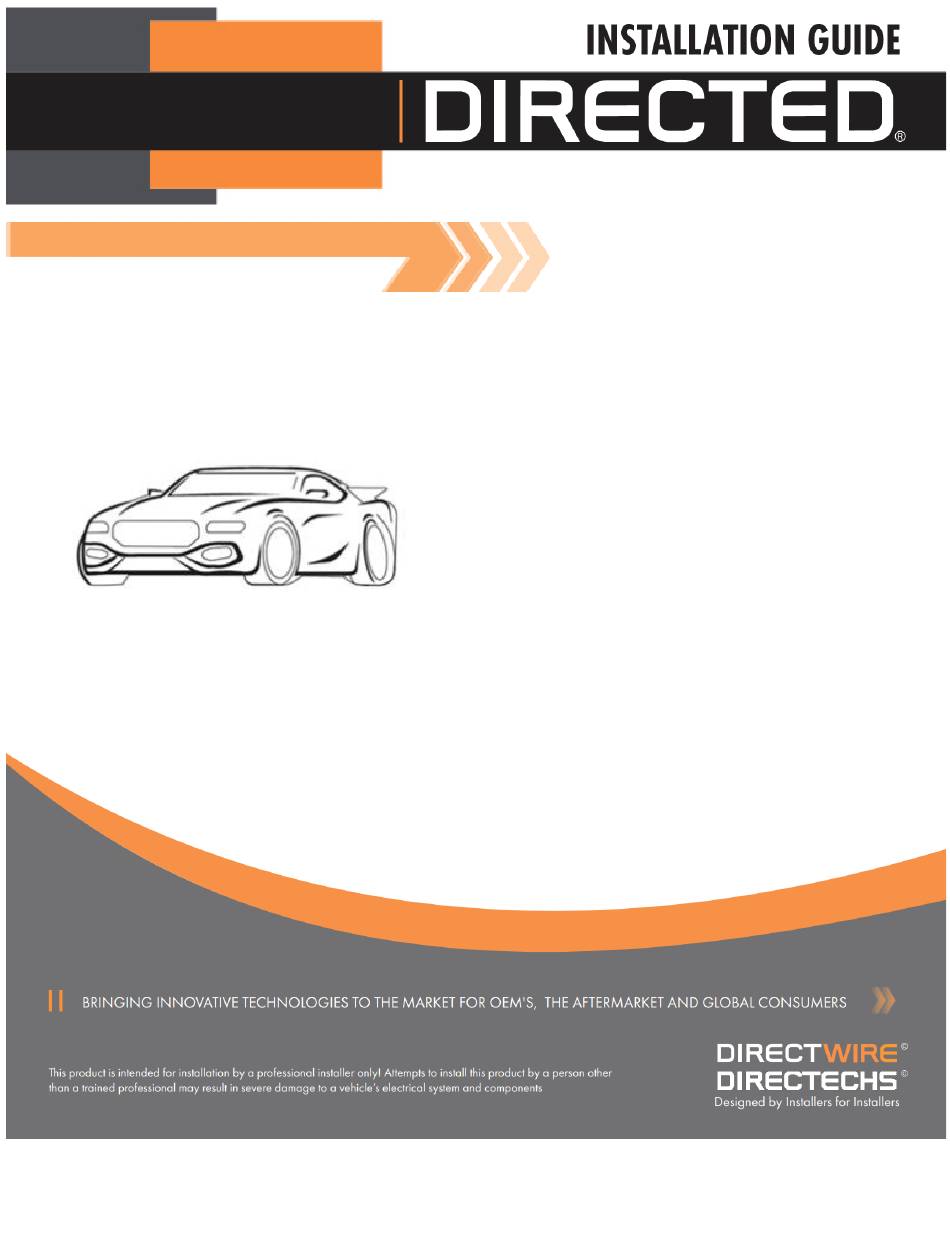

  • Page 1 403.TL7 v2.36 2011 Toyota Tacoma (G Key)

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Key type Wiring diagram Locating components in the vehicle Vehicle connections Module programming Important! The master key is required to complete the module programming successfully. Module programming for convenience only (skip transponder) Connecting the module LED diagnostics and troubleshooting Soft reset...

  • Page 3: Introduction

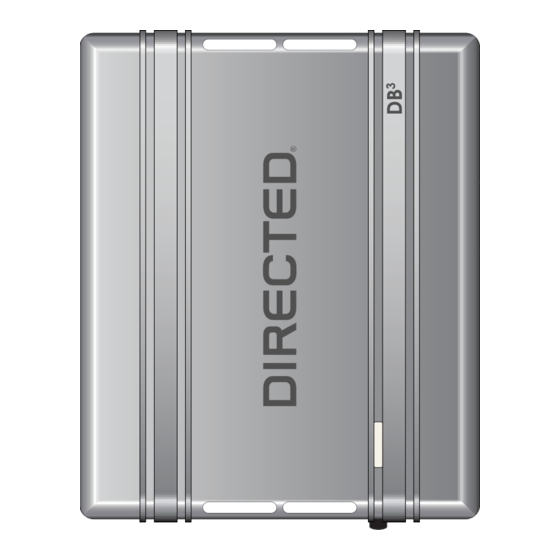

    DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.TL7 2.36 2011 Toyota Tacoma (G Key)

  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Parking Lights Control SmartStart Immobilizer Bypass-Data No Key Req'd Remote Start Takeover 403.TL7 2.36 2011 Toyota Tacoma (G Key) ©2023 VOXX•DEI LLC.

  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required T-Harness is not compatible.

  • Page 6: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Diagnostic Connector OBDII Harness from Driver Side Door 10-pin Gray or White Connector SIL: White, HS CAN High: pin 7 Yellow/Black, pin 6 (-) Unlock/Disarm:...

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.TL7 2.36 2011 Toyota Tacoma (G Key) ©2023 VOXX•DEI LLC. All rights reserved.

  • Page 8: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2011 Toyota Tacoma (G Key). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 9 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White Remote Starter (-) W2W Only - Trunk Input H3/4 White/Violet (-) W2W Only - Right Slidding Door...
  • Page 10 Additional remote start connections (Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.) Connects To Wire Wire Location (+/-) Wire Color 12 Volts ignition switch, white 8 pin plug, pin 5 white/red (30A) Accessory ignition switch, white 8 pin plug, pin 2...

  • Page 11: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Important! The master key is required to complete the module programming successfully. Convenience-Only programming, see next section. Ensure vehicle is in a safe location, and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral position.

  • Page 12: Module Programming For Convenience Only (Skip Transponder)

    Module programming for convenience features only (skip transponder programming) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. To connect the module: Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.

  • Page 13: Connecting The Module

    Make all the required connections to the vehicle, as described in this guide, and double-check to ensure everything is in order before moving onto the programming. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. To flash a module using your computer: Connect the interface module to your computer using the XKLoader2.

  • Page 14: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 15   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...

  • Page 16: Soft Reset

    Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.

  • Page 17: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.

  • Page 18: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.

  • Page 19: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.

  • Page 20: Qrg (Customer Copy)

    Quick Reference Guide (customer copy) Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there Stop the vehicle in a safe parking spot and put the gear gear in Park are 3 possible ways you can send commands to your vehicle, using the: in Park (P).
  • Page 21 Notes 403.TL7 2.36 2011 Toyota Tacoma (G Key) ©2023 VOXX•DEI LLC. All rights reserved.
