Wiring Diagram With Oem Remote Start And Without T-Harness - Directechs DIRECTWIRE DIECTED DB3 Installation Manual

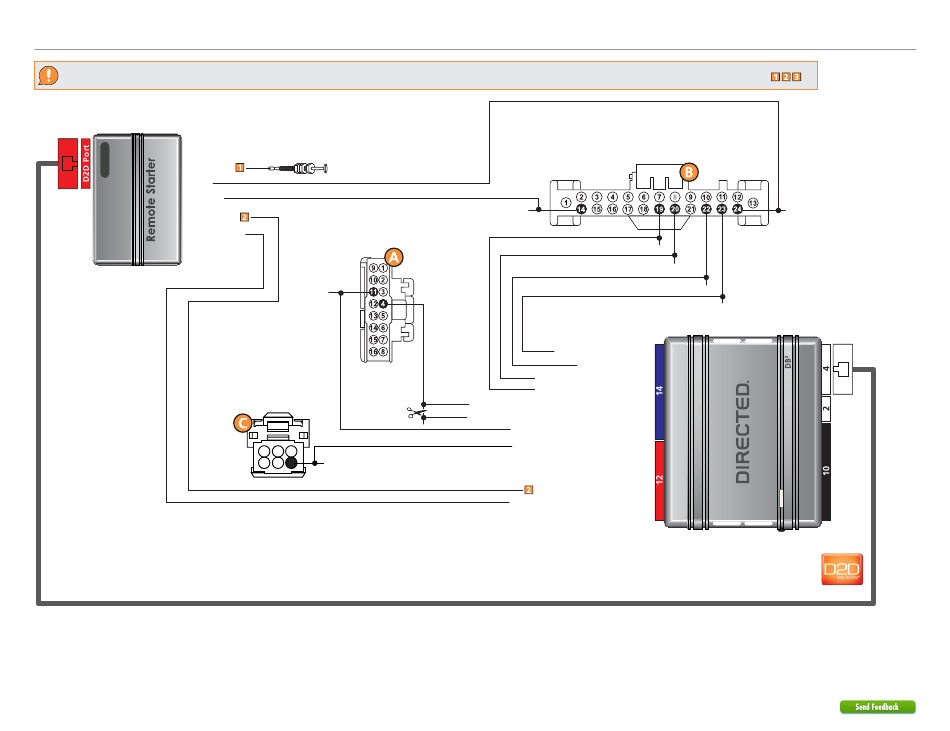

Wiring diagram with OEM Remote Start and
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
(-) Hood Input
(+) 12V
(-) Ground
(AC) Tach Input
(+) Ignition Input
8 403.FORD11 2.07 2013 Ford Fusion
©2022 VOXX•DEI LLC. All rights reserved.
without T-Harness
Hood Pin
Headlight Switch
(-) Parking Lights:
Gray or Yellow,
pin 11
Trunk Release
(black or brown conn.
at trunk release switch)
Cut
1 2 3
(-) Trunk Release:
4 5 6
Gray/Yellow, pin 6
(black conn. on OBDII connector)
(-) Ground: Black/Blue, pin 14
HS CAN Low: White, pin 19
HS CAN High: White/Blue or Blue, pin 20
Parking Light
MS CAN Low: Violet/Orange or Violet, pin 22
Interrupt:
Black/Blue , pin 4
MS CAN High: Gray/Orange or Gray, pin 23
HS CAN 2 High: Tan/Black: 3
HS CAN 2 Low: Tan: 4
HS CAN 1 High: Orange/Green: 5
HS CAN 1 Low: Orange/Brown: 6
Parking Lights Interrupt (conn. side): Orange/Red: 10
Parking Lights Interrupt (vehicle side): Yellow/Red: 11
(-) Parking Lights Output: Brown/Red: 12
(-) Trunk Release Ouptut: Black/White: 1
(AC) Tach Ouptut: Violet/White: 5
(+) Ignition Status Output: Gray/Black: 7
).
Gateway Module
(+)12V: Gray/Red, pin 24
XKD2D65
