INSTALLATION GUIDE

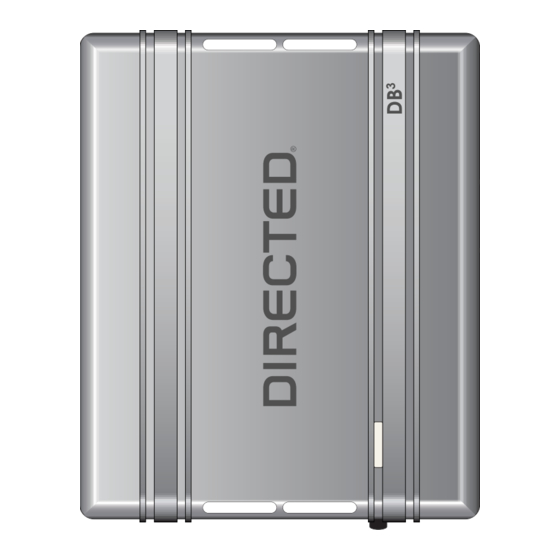

DB3
2013 Ford Taurus (40-Bit). 403.FORD6 3.24 RSR
Designed by Installers for Installers
© 2022 Directed, Vista CA
This product is intended for installation by a professional installer only! Attempts to install this
product by a person other than a trained professional may result in severe damage to a vehicle's
electrical system and components.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIRECTED DB3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Directechs DIRECTED DB3

  • Page 1 INSTALLATION GUIDE 2013 Ford Taurus (40-Bit). 403.FORD6 3.24 RSR Designed by Installers for Installers © 2022 Directed, Vista CA This product is intended for installation by a professional installer only! Attempts to install this product by a person other than a trained professional may result in severe damage to a vehicle’s electrical system and components.
  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THFD1) Wiring diagram Locating components in the vehicle Key2Go Vehicle connections Module programming 2 Keys required! 1 Key required! Module programming for convenience only (skip transponder) SmartStart/XL202 installation notes Connecting the module LED diagnostics and troubleshooting...
  • Page 3: Introduction

    SmartStart (all sold separately). Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.FORD6 3.24 2013 Ford Taurus (40-Bit)
  • Page 4: Vehicle Function Compatibilities

    Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Arm Factory Security Remote Start Ready Disarm Factory Security Remote Start Takeover Door Lock Control SmartStart Door Unlock Entry Monitoring ALL Door Pins Trunk / Hatch Release Entry Monitoring Hood Pin Ford Key2Go (40-bit keys only)
  • Page 5: Pre-Installation And Application Warnings

    Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness THFD1 Keys required for Keys required for 1 or 2 compatible programming...
  • Page 6: Installation

    Wiring diagram with T-Harness (THFD1) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Barrel Ignition Switch P.A.T.S. (connector side) 4-pin connector (connector side) THFD1 You can connect to either a (optional XL202 RFTD OR a SmartStart module.
  • Page 7: Wiring Diagram

    Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Switch OBDII Diagnostic (black connector) (connector side view) (+) 12V: Pin 4 MS CAN High: HS CAN High: You can connect to either a Pin 3...
  • Page 8: Locating Components In The Vehicle

    Locating components in the vehicle 403.FORD6 3.24 2013 Ford Taurus (40-Bit) ©2022 VOXX•DEI LLC. All rights reserved.
  • Page 9: Key2Go

    Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. Refer to “Module programming - 1-Key programming using Key2GO” on page <?> of this guide for instructions on how to program features using Key2GO.
  • Page 10: Vehicle Connections

    Vehicle connections The connection information listed below is specific to the 2013 Ford Taurus (40-Bit). Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1...
  • Page 11 Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H2/9 Violet/Brown Trunk Release Switch, black 6 pin plug, pin 6 Brown/Yellow (except police) (-) Trunk Hatch Release/Power Liftgate Output Not Applicable H2/10 Yellow/Black (DATA) TX PATS Transceiver on ignition switch, black 4 pin plug, pin 3 Data Yellow/Orange H2/11...
  • Page 12: Module Programming

    Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. 2 Keys required! Convenience-Only programming, see next section. Ensure vehicle is in a safe location, and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral position. The harnesses must be connected in this exact order: 1.
  • Page 13: Key Required

      1 Key required! Convenience-Only programming, see next section. The harnesses must be connected in this exact order: 1. Connect the 14-pin. 2. Connect the 12-pin. 3. Connect the 10-pin. When the LED turns on solid red, proceed with the next step. Insert the key and turn the ignition ON and OFF twice. ...
  • Page 14: Module Programming For Convenience Only (Skip Transponder)

    Module programming for convenience features only (skip transponder programming) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. To connect the module: Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.
  • Page 15: Smartstart/Xl202 Installation Notes

    SmartStart/XL202 installation notes The DB3 Remote Start Ready (RSR) solution offers three (3) configuration options to control your system: 3x OEM Lock Remote Start Activation, RF Kit or SmartStart (both sold separately). This section provides specific installation information for SmartStart and XL202.
  • Page 16: Connecting The Module

    DirectLink (version 4.5 or higher). Visit www.directechs.com to download the latest version of the application. Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.
  • Page 17: Led Diagnostics And Troubleshooting

    LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
  • Page 18   Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
  • Page 19: Parking Light Error Codes

    Parking light error codes The parking lights on your vehicle will flash a specific number of times 3 seconds following an unscheduled shutdown. Each flashing pattern is described below. Flashes Diagnostic Runtime expired. Over-rev shutdown. Low or no RPM. Shutdown without remote. Brake shutdown.
  • Page 20: Feature Programming

    Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
  • Page 21: Feature And Option List

    It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
  • Page 22: Limited One Year Consumer Warranty

    Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.
  • Page 23: Quick Reference Guide

    Quick Reference Guide Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, Stop the vehicle in a safe parking spot and put the gear in there are 3 possible ways you can send commands to your vehicle, using the: gear in Park (P).
  • Page 24 List of available commands The application enables a “Cloud-Connected Car” like never before, providing 2-way interaction with your vehicle. Connectivity is managed through the Directed Note that the information below is for many Viper, Clifford, Python, Avital, Automate, Cloud Services (DCS) network linking car, app, end user, and the Internet. Autostart and AstroStart models.
