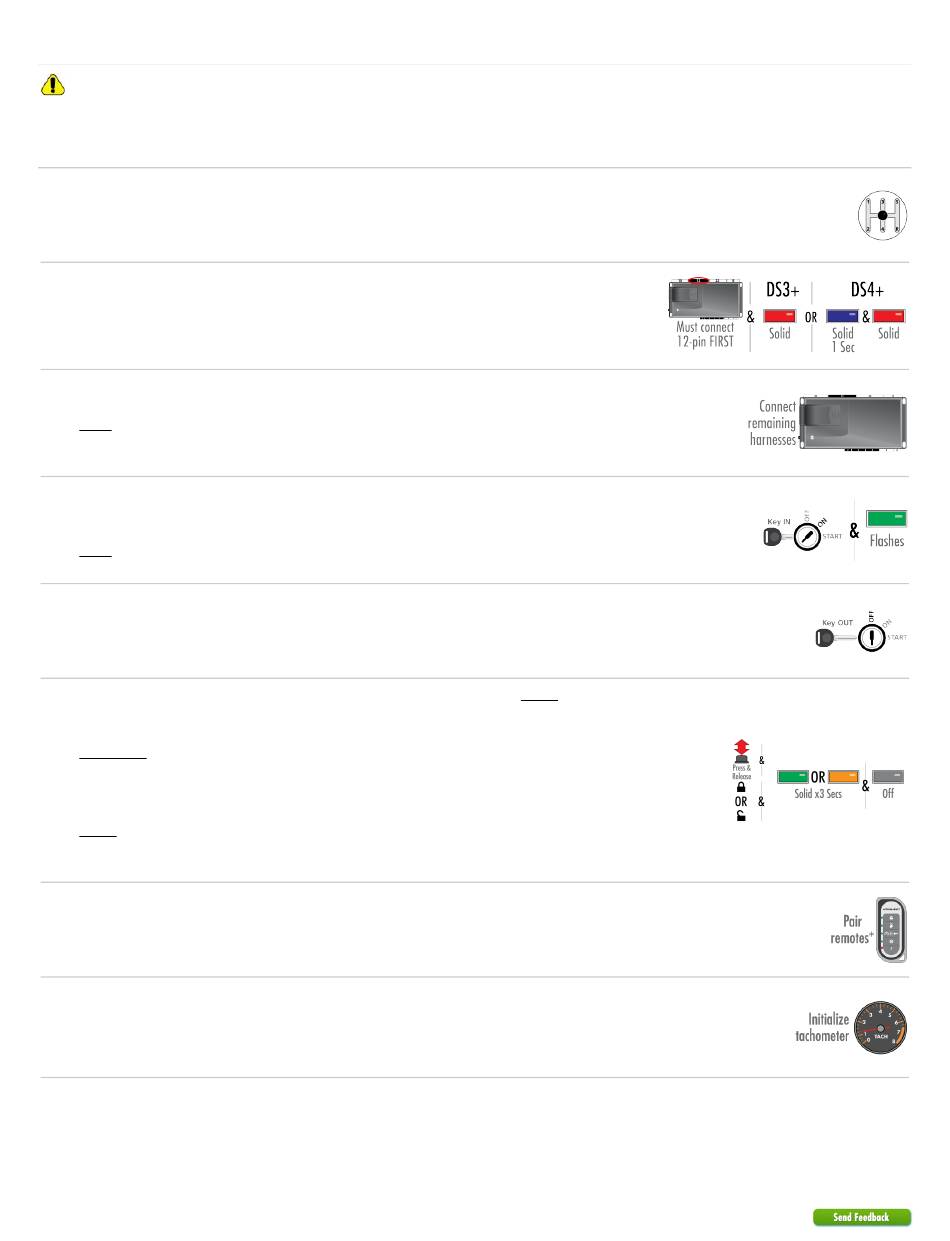

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

Key-Type vehicles

(For security-only programming, see following page.)
Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
Connect the 12-pin main power harness to the module.
2
DS3+: Wait until the LED turns on solid red then proceed to the next step.
DS4+: The LED turns ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red, then proceed to the next step.
Connect the remaining harnesses to the module.
3
Note: To skip the transponder programming and use convenience features only, press the
programming button 5 times. When the LED turns ON solid orange, then proceed to next
step.
Insert the key into the ignition barrel and turn it to the ON position. It is important to wait for
the LED to start flashing green.
4
Note: Refer to the LED Diagnostics sections for troubleshooting if the LED does not flash green
within 15 seconds.
5
Turn the key to the OFF position and remove it from the ignition barrel.
IMPORTANT: The module will control door locks only if you follow the WITH factory keyless
method.
WITHOUT factory keyless or if OEM remote is not available:
Press and release the programming button. The LED turns on solid green or orange for 3
6
seconds, and then turns OFF.
WITH factory keyless:
Press Lock or Unlock on the factory transmitter. The LED turns ON solid green OR orange for
3 seconds, and then shuts OFF.
7
Pair remotes (if applicable).
DATA/Hardwired Tach Learning: When using Data Tach, it is recommended to follow the
Tach Learning procedure; however, when using a Hardwired Tach, the procedure is
8
mandatory.
For more information, refer to the Tach Learning procedure section.
* Your aftermarket remote may differ from the model shown in the illustrations. For information on how to pair a specific remote, please refer
to its corresponding owner documentation, which can be found inside the product packaging of the complete system or on
www.directechs.com.
You have successfully completed the module programming sequence.
11
933.CHRYSLER 7.34.195.3 2005 Chrysler 300/300c
