Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with OEM Remote Start and with T-Harness (THFOD2) Wiring diagram without OEM Remote Start and with T-Harness (THFOD2) Wiring diagram with OEM Remote Start and without T-Harness Wiring diagram without OEM Remote Start and without T-Harness Locating components in the vehicle Vehicle connections Module programming...

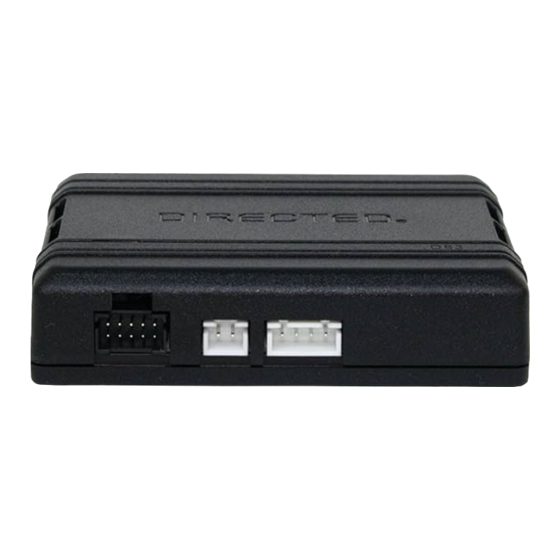

DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.FORD11 2.07 2013 Ford Fusion...
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Parking Lights Control SmartStart Door Lock Control Tach / RPM Output Door Unlock Entry Monitoring ALL Door Pins...
Pre-installation and application warnings This section highlights important information for this specific firmware and will assist in pricing accordingly, as START HERE well as bringing awareness to any operational or vehicle limitations. Compatibilities and Requirements T-Harness Keys required for Keys required THFOD2 programming for operation...
Wiring diagram with OEM Remote Start and with T-Harness (THFOD2) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( only Headlight Switch Gateway Module 4-pin Connectors (black conn. on OBDII connector) Type 2 Type 1 (-) Parking Lights:...
Wiring diagram without OEM Remote Start and with T-Harness (THFOD2) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( only Headlight Switch Gateway Module 4-pin Connectors (black conn. on OBDII connector) Type 1 Type 2 (-) Parking Lights:...
Wiring diagram with OEM Remote Start and without T-Harness Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Gateway Module (black conn. on OBDII connector) Hood Pin (-) Hood Input (+) 12V (-) Ground...
Wiring diagram without OEM Remote Start and without T-Harness Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Gateway Module (black conn. on OBDII connector) Hood Pin (-) Hood Input (+) 12V (-) Ground...
Vehicle connections The connection information listed below is specific to the 2013 Ford Fusion. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green...
Page 12
Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet...
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. (For skip transponder programming, see following page.) Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position.
Module programming for convenience features only (skip transponder) Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes. Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles equipped with a manual transmission, make sure the gearshift is in the neutral position. The harnesses must be connected in this exact order: 1.
Warning! To take advantage of advanced features, you must use DirectLink 4.5 (and higher) or the Directechs Mobile application. Flashing a module using your computer: 1. Connect the interface module to your computer using the XKLoader2.
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power.
Page 17
Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness.
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g.
It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page.
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor.
Quick Reference Guide (customer copy) Sending commands to your vehicle Pit stop/idle mode Whether you want to remote start the engine, lock/unlock the doors or pop the trunk, there The vehicle pit stop/idle mode feature is not available in this firmware. are 3 possible ways you can send commands to your vehicle, using the: Factory remote.
