Texas Instruments TSW14J57EVM User Manual

High-speed data capture and pattern generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TSW14J57 JESD204B High-Speed Data Capture and
This user's guide describes the characteristics, operation, and use of the TSW14J57EVM JESD204B high-
speed data capture and pattern generator card. Throughout this user's guide, the abbreviations EVM, and
the term evaluation module are synonymous with the TSW14J57EVM, unless otherwise noted.
...................................................................................................................
1
..................................................................................................................
2
2.1
2.2
3
3.1
3.2
3.3
4
4.1
4.2
5
1
2
3
4
5
6
7
.................................................................................................................
8
9
1
2
3
4
SLWU092 - April 2017
Submit Documentation Feedback
This datasheet has been downloaded from
Pattern Generator Card User's Guide
..........................................................................................
.....................................................................................
.....................................................................................................
................................................................................................
....................................................................................
.................................................................................................................
..........................................................................................................
...........................................................................................
.......................................................................................
....................................................................................................
..............................................................................................................
...........................................................................................
.....................................................................................................
..........................................................................................
...............................................................................................
.....................................................................................
.....................................................................................
TSW14J57 JESD204B High-Speed Data Capture and Pattern Generator
Copyright © 2017, Texas Instruments Incorporated
Contents
List of Figures
.......................................................................
List of Tables
............................................................................
...........................................................................
................................................
.........................................................................
http://www.digchip.com
User's Guide
SLWU092 - April 2017
Card User's Guide
at this
page
2
2
5
5
5
5
6
7
11
11
11
14
3
4
12
12
13
14
14
15
15
6
6
7
8
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSW14J57EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments TSW14J57EVM

Summary of Contents for Texas Instruments TSW14J57EVM

  • Page 1: Table Of Contents

    TSW14J57 JESD204B High-Speed Data Capture and Pattern Generator Card User's Guide This user's guide describes the characteristics, operation, and use of the TSW14J57EVM JESD204B high- speed data capture and pattern generator card. Throughout this user's guide, the abbreviations EVM, and the term evaluation module are synonymous with the TSW14J57EVM, unless otherwise noted.

  • Page 2: Introduction

    ADC EVMs and generates and sends desired test patterns to DAC EVMs. Functionality The TSW14J57EVM has a single industry standard FMC+ connector that interfaces directly with TI JESD204B ADC and DAC EVMs. The FMC+ carrier connector is compatible with the FMC mezzanine connector.

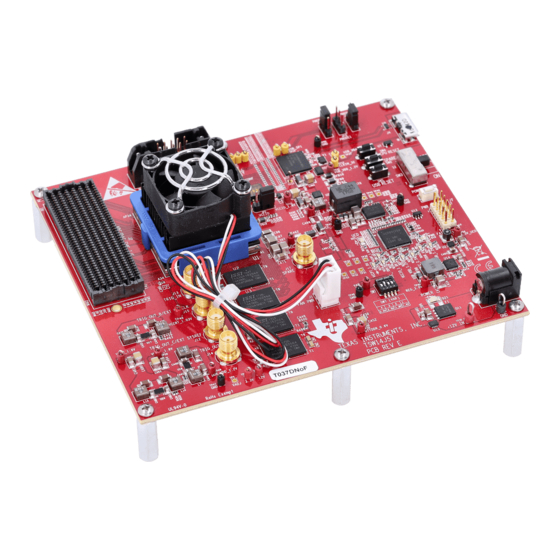

  • Page 3 Functionality www.ti.com Copyright © 2017, Texas Instruments Incorporated Figure 1. TSW14J57EVM The major features of the TSW14J57 are: • Subclasses: 0 (backward compatible), 1, 2 • Support for deterministic latency • Serial lanes speeds up to 15 Gbps • 16 routed transceiver channels •...

  • Page 4: Tsw14J57 Evm Block Diagram

    USB 3.0 Parallel Port FMC+ Connector ADC or DAC EVM Copyright © 2017, Texas Instruments Incorporated Figure 2. TSW14J57 EVM Block Diagram TSW14J57 JESD204B High-Speed Data Capture and Pattern Generator SLWU092 – April 2017 Card User's Guide Submit Documentation Feedback...

  • Page 5: Adc Evm Data Capture

    Power Connections The TSW14J57EVM hardware is designed to operate from a single supply voltage of +12 V DC. The power input is controlled by the on and off switch, SW3. Make sure this switch is in the off position before inserting the provided power cable.

  • Page 6: Switches, Jumpers, And Leds

    Hardware Configuration www.ti.com NOTE: The typical power supply range for the TSW14J57EVM is between 10V to 14V with a power consumption of about 14.5W. It is recommended that at least a 2 A rated supply be provided to the TSW14J57EVM due to the current consumption increase when data is being captured by HSDC Pro.

  • Page 7: Leds

    On if 3.3V is being provided for the power supply sequencer 3.3.2 Status LEDs Eight status LEDs on the TSW14J57EVM indicate the status of the FPGA, DDR4, and JESD204B interface: D1 – Indicates DAC EVM established SYNC with the TSW14J57 device when off D2 –...

  • Page 8: Fmc+ Connector Description Of The Tsw14J57

    This specification is being used by FPGA vendors on their development platforms. The FMC+ connector, J2, provides the interface between the TSW14J57EVM and the ADC or DAC EVM under test. This 560-pin Samtec high-speed, high-density connector (part number ASP-184329-01) is suitable for high-speed differential pairs up to 28 Gbps.
  • Page 9 Alt. SYNC± (C → M) Alternate ADC mezzanine-bound SYNC signal. For use when SYNC (C → M) is not available SLWU092 – April 2017 TSW14J57 JESD204B High-Speed Data Capture and Pattern Generator Card User's Guide Submit Documentation Feedback Copyright © 2017, Texas Instruments Incorporated...
  • Page 10 The drivers are automatically installed during the installation process. On the TSW14J57EVM, the USB port is used to identify the type and serial number of the EVM under test, load the desired FPGA configuration file, capture data from ADC EVMs, and send test pattern data to the DAC EVMs.

  • Page 11: Software Start-Up

    USB Interface and Drivers • Connect a USB 3.0 cable between J4 of the TSW14J57EVM and a host PC. • Connect the provided power cable between the EVM and a +12 VDC source. LED D21 should turn green now.

  • Page 12: Tsw14J57Evm

    Click on the High-Speed Data Converter Pro icon that was created on the desktop panel, or go to C:\Program Files (x86)\Texas Instruments\High Speed Data Converter Pro and double click on the executable called “High Speed Data Converter Pro.exe” to start the GUI.

  • Page 13: High-Speed Data Converter Pro Gui Top Level

    USB port. When the software is installed and the USB cable is connected to the TSW14J57EVM and the PC, the TSW14J57 USB 3.0 converter should be located in the Hardware Device Manager under the universal...

  • Page 14: Downloading Firmware

    The files used by the GUI currently reside in the directory called C:\Program Files (x86)\Texas Instruments\High Speed Data Converter Pro\14J57 Details\Firmware. To load a firmware, after the GUI has established connection, click the “Select ADC” window in the top left...

  • Page 15: Status Leds

    Copyright © 2017, Texas Instruments Incorporated Figure 8. Status LEDs For information regarding the use of the TSW14J57EVM with a TI ADC or DAC JESD204B serial interface EVM, consult the High-Speed Data Converter Pro GUI User's Guide (SLWU087) and the individual EVM User’s Guide, available on www.ti.com.
  • Page 16 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 17 FCC Interference Statement for Class B EVM devices NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 18 【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの 措置を取っていただく必要がありますのでご注意ください。 1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用 いただく。 2. 実験局の免許を取得後ご使用いただく。 3. 技術基準適合証明を取得後ご使用いただく。 なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。 上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ ンスツルメンツ株式会社 東京都新宿区西新宿６丁目２４番１号 西新宿三井ビル 3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/ /www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page 3.4 European Union 3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive): This is a class A product intended for use in environments other than domestic environments that are connected to a low-voltage power-supply network that supplies buildings used for domestic purposes.
  • Page 19 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2017, Texas Instruments Incorporated...
  • Page 20 IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to, reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are developing applications that incorporate TI products;...
