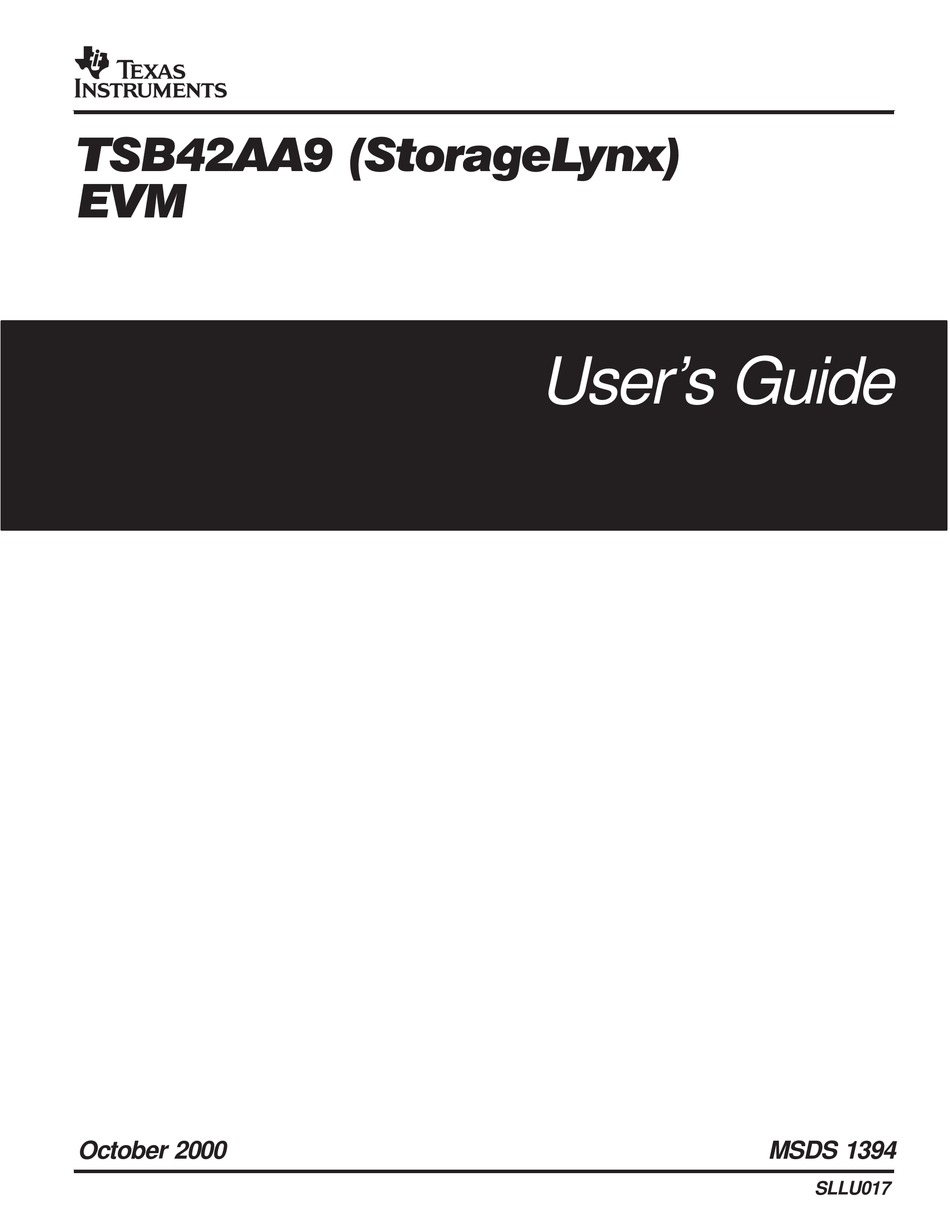

- Page 1 TSB42AA9 (StorageLynx) User’s Guide October 2000 MSDS 1394 SLLU017...
- Page 2 IMPORTANT NOTICE Texas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgment, including those pertaining to warranty, patent infringement, and limitation of liability.
- Page 3 Chapter 1 – Introduction Chapter 2 – TSB42AA9 (StorageLynx) EVM Features Chapter 3 – TSB42AA9 (StorageLynx) EVM Hardware Chapter 4 – TSB42AA9 (StorageLynx) EVM Programming Application Chapter 5 – Programming the TSB42AA9 (StorageLynx) EVM Chapter 6 – Troubleshooting Appendix A – Sample StorageLynx EVM Bill of Materials Appendix B –...
- Page 4 Related Documentation From Texas Instruments This is an example of a warning statement. A warning statement describes a situation that could potentially cause harm to you. The information in a caution or a warning is provided for your protection. Please read each caution and warning carefully.
-
Page 5: Table Of Contents
Running Title—Attribute Reference Contents Introduction ..............TSB42AA9 (StorageLynxt) EVM Features . -
Page 7: Introduction
Chapter 1 Introduction The TSB42AA9 (StorageLynxt) EVM is a free-standing evaluation module that acts as a bridge between a PC or Macintosh 1394 bus and an ATA/ATAPI device. It is used to evaluate system compatibility, to develop optional soft- ware that resides in external memory for StorageLynx, and to develop device drivers. -
Page 9: Tsb42Aa9 (Storagelynxt) Evm Features
Chapter 2 TSB42AA9 (StorageLynxt) EVM Features The StorageLynx EVM bundle provides the following features: Two IEEE 1394 port connectors External 12-V wall power connector 40-pin ATA/ATAPI connector Flash memory (128K x 8 bit, access times may vary) Serial EEPROM (4K) Three device modes switchable by user 50-MHz and 25-MHz operation 40-pin socket for external ICE 8051... -
Page 11: Tsb42Aa9 (Storagelynxt) Evm Hardware
Chapter 3 TSB42AA9 (StorageLynxt) EVM Hardware This chapter contains a StorageLynx EVM hardware overview as well as installation instructions for the StorageLynx board and its associated parts and devices. Topic Page Hardware Overview ......... . . StorageLynx EVM Hardware Installation . -
Page 12: Hardware Overview
Hardware Overview 3.1 Hardware Overview Figure 3–1. Basic Block Diagram of the StorageLynx EVM To Wall Power STORAGELYNX BENCH EVM Voltage Power Switcher Regulator 12V/5V, not populated External Power Input (not used) Serial Flash EEPROM Memory ATA/ATAPI 1394 Devices: ATA/ Conn To SBP2 ATAPI... -
Page 13: Component Layout Diagram Of The Storagelynx Evm
Hardware Overview internal memory and configuration registers while the embedded 8052 processor is disabled. This capability is not normally used, but is available for testing and debugging purposes. External Power Input. The EVM has a connection for a 12–V external power supply. -
Page 14: Storagelynx Evm Hardware Installation
StorageLynx EVM Hardware Installation 3.2 StorageLynx EVM Hardware Installation The following parts/devices are needed to set up the EVM: 1394 cable ATA/ATAPI device (HDD, etc.) ATA/66 ribbon cable PC power supply for ATA/ATAPI device PC/Macintosh with 1394 connection (PC with Windows 98SE is necessary for the programming application) To set up the EVM, perform the following steps: 1) Ensure the ATA/ATAPI device power supply is off. -
Page 15: Switch Settings For The Storagelynx Evm
StorageLynx EVM Hardware Installation Figure 3–3. Switch Settings for the StorageLynx EVM Not Used Not Used Not Used 50 MHz 25 MHz Not Used Switch Switch Settings Settings Switch Switch Settings Settings Not Used Mode 0—ATA/ATAPI bridge mode (Internal ROM) Mode 1—ATA/ATAPI development mode (external memory) Mode 2—Reserved Mode 3—External 8051 ICE mode... -
Page 17: Tsb42Aa9 (Storgelynxt) Evm Programming Application
Chapter 4 TSB42AA9 (StorageLynxt) EVM Programming Application This chapter contains an overview and installation instructions for the Storage- Lynx EVM programming application Topic Page StorageLynx EVM Programming Application Overview ... StorageLynx EVM Programming Application Installation . -
Page 18: Storagelynx Evm Programming Application Overview
StorageLynx EVM Programming Application Overview 4.1 StorageLynx EVM Programming Application Overview The StorageLynx EVM bundle contains the following software files: S2LynxVC.exe. StorageLynx programming application executable file. Support files: SEQFWAPI.reg. Registration file for registry edits. SEQFWAPI.sys. WAPI1394.dll. Sbp2lynx.hex. Flash memory software. Intel Hex file format output by most 8051 compilers. -
Page 19: Storagelynx Evm Programming Application Installation
StorageLynx EVM Programming Application Installation 4.2 StorageLynx EVM Programming Application Installation Note: Included software will run only under Windows 98SE. There is currently no automatic install utility included with the EVM. To install the software on the PC, perform the following: Copy WAPI1394.dll to c:\windows\system. -
Page 21: Programming The Tsb42Aa9 (Storagelynxt) Evm
Chapter 5 Programming the TSB42AA9 (StorageLynxt) This chapter explains how to run the StorageLynx EVM programming applica- tion. The StorageLynx EVM programming application can only be run after the EVM hardware and software are successfully installed. See Section 3.2 for hardware installation instructions and Section 4.2 for software installation in- structions. -
Page 22: Example Of Successfully Loaded Software
Figure 5–1. Example of Successfully Loaded Software... -
Page 23: Troubleshooting
Chapter 6 Troubleshooting If a problem occurs when running the Texas Instruments supplied software, use the following troubleshooting tips to correct the problem. If the problem persists, contact Texas Instruments Applications Engineering. Close the S2LynxVC screen. Unplug the 1394 cable and plug the cable back in. -
Page 25: Sample Bill Of Materials
Appendix A Sample Bill of Materials Table A–1.Sample StorageLynx t EVM Bill of Materials Item Part Value Part Number C7,C8,C10,C11,C13, 1 pF Kemet C0603C102J5 C14,C16,C17,C19,C20, C24,C27,C29,C33,C35, C52,C55,C56 C26,C28,C46 10 pF Kemet C0603C103J5 0.1 µF C3,C4,C5,C6,C9,C12, Kemet C0603C104J5 C15,C18,C21,C22,C32, C34,C37,C42,C43,C44, C50,C51,C53,C54 18 pF Kemet C0603C473J5... -
Page 26: Sample Storagelynx Evm Bill Of Materials
30340–6002HB Q1,Q2,Q3 SOT-23 N-CH MOSFET Supertex TN2106K1 SPST Switch Dip 8 C & K Components TD08H0SK1 TP1,TP2,TP3 Testpoint TQFP100 StorageLynx Texas Instruments TSB42AA8 PQFP64 2 port PHY Texas Instruments TSB41LV02 TSOP32 Flash Memory AM29LV010B–55EC SOIC8 Serial EEPROM Atmel AT24C04N–10SC–2.7 U5,U6,U9,U10,U13... -
Page 27: B Storagelynxt Evm Schematics
Appendix B StorageLynx EVM Schematics This appendix contains the StorageLynx EVM schematics. StorageLynx EVM Schematics... - Page 28 Figure B–1.StorageLynx EVM—PHY...
- Page 29 Figure B–2.StorageLynx EVM—EEPROM/Flash StorageLynx EVM Schematics...
- Page 30 Figure B–3.StorageLynx EVM—ATA/ICE8051...
- Page 31 Figure B–4.StorageLynx EVM—Power Supplies StorageLynx EVM Schematics...
