This document is the EVM User's guide for the TS3DDR4000-EVM which provides an easy evaluation of
TI's 12-bit 1:2 high speed DDR3/DDR3/DDR4 switch/multiplexer.
spacer
1
2
...................................................................................................................
3
3.1
4
4.1
4.2
4.3
5
5.1
5.2
5.3
6
1
2
TS3DDR4000 Breakout Connections
3
4
5
6
7
...................................................................................................................
8
9
1
2
SLVUAE8 - February 2015
Submit Documentation Feedback
............................................................................................................
.................................................................................................................
.......................................................................................................
............................................................................................................
......................................................................................................
..........................................................................................................
....................................................................................................
..........................................................................................................
.....................................................................................
.........................................................................................
............................................................................................
..........................................................................................................
.................................................................................................
............................................................................................
...............................................................................................................
.................................................................................................................
.......................................................................................
Copyright © 2015, Texas Instruments Incorporated
TS3DDR4000 EVM User's Guide
Contents
...............................................................................
............................................................................
..............................................................................
............................................................................
............................................................................
List of Figures
List of Tables
User's Guide
SLVUAE8 - February 2015
TS3DDR4000 EVM User's Guide
2
2
3
3
4
4
5
5
7
7
8
9
10
3
4
4
5
5
5
7
9
9
6
8
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TS3DDR4000 EVM
Summary of Contents for Texas Instruments TS3DDR4000 EVM
-
Page 1: Table Of Contents
SEL0, SEL1, /EN Jumpers .................... TS3DDR4000 EVM Schematic ........................Top Copper ....................... Bottom Copper List of Tables ......................... Logic Control ..................TS3DDR4000 EVM Bill of Materials SLVUAE8 – February 2015 TS3DDR4000 EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 2: About This Manual
Handle using an antistatic wristband. Operate on an antistatic work surface. For more information on proper handling, see the Electrostatic Discharge (ESD) application note (SSYA008). TS3DDR4000 EVM User's Guide SLVUAE8 – February 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 3: Introduction

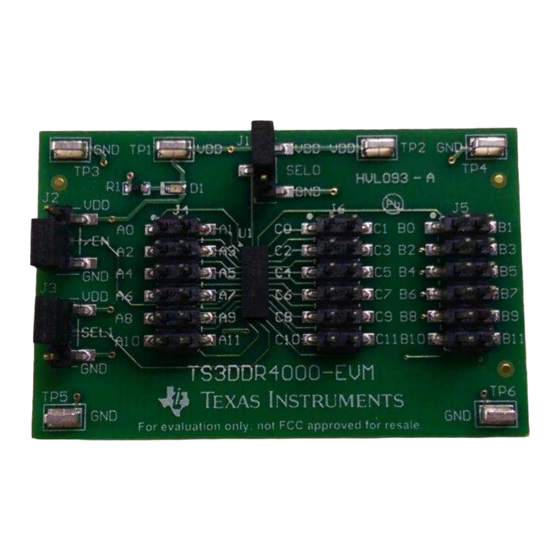

List of Hardware Items for Operation The following items are required for EVM evaluation: • TS3DDR4000-EVM • Power Supply Figure 1 illustrates the TS3DDR4000-EVM board. Figure 1. TS3DDR4000-EVM SLVUAE8 – February 2015 TS3DDR4000 EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 4: Ts3Ddr4000-Evm Connections Overview
Figure 2. TS3DDR4000 Breakout Connections All pins are labeled in silkscreen for easy reference as shown in Figure Figure 3. Silkscreen Labeling of Data Lines TS3DDR4000 EVM User's Guide SLVUAE8 – February 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 5: Power
TS3DDR4000-EVM Connections Overview www.ti.com Power The TS3DDR4000 EVM requires an external supply to operate. When powered, the power consumption of the board will be less than 10 mA. When power is connected, the power indicator LED D1 will be lit. Green Figure 4. -
Page 6: Logic Control
Jumper position indicates which pins are shorted. If pins 1-2 are shorted that select/enable lines is connected to VDD. If pins 2-3 are shorted that select/enable lines is connected to ground. TS3DDR4000 EVM User's Guide SLVUAE8 – February 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 7: Board Documentation
Board Documentation This section contains the schematic, bill of materials, and printed-circuit board (PCB) layouts. Schematic Figure 7 shows the TS3DDR4000 EVM schematic. VDD is power input to board VDD input range is 2.375 V to 3.6 V Green Place de-coupling capacitors as close device as possible. -
Page 8: Bill Of Materials
Board Documentation www.ti.com Bill of Materials Table 2 lists the TS3DDR4000 EVM BOM. Table 2. TS3DDR4000 EVM Bill of Materials Designator Value Description Package Part Number Manufacturer Reference !PCB1 Printed Circuit Board HVL093 C1, C3 CAP, CERM, 1uF, 6.3V, +/-10%, X7R, 0603... -
Page 9: Pcb Layout
Board Documentation www.ti.com PCB Layout Figure 8 through Figure 9 illustrate the TS3DDR4000 EVM PCB layouts. Figure 8. Top Copper Figure 9. Bottom Copper SLVUAE8 – February 2015 TS3DDR4000 EVM User's Guide Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... -
Page 10: Related Documentation
Related Documentation www.ti.com Related Documentation • Product page: http://www.ti.com/product/TS3DDR4000 • TS3DDR4000 Datasheet (SCDS356) • Link to tools: http://www.ti.com/product/TS3DDR4000/toolssoftware TS3DDR4000 EVM User's Guide SLVUAE8 – February 2015 Submit Documentation Feedback Copyright © 2015, Texas Instruments Incorporated... - Page 11 STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.
