SMC Networks AFG20 Series Operation Manual page 26

Applicable Work
model category

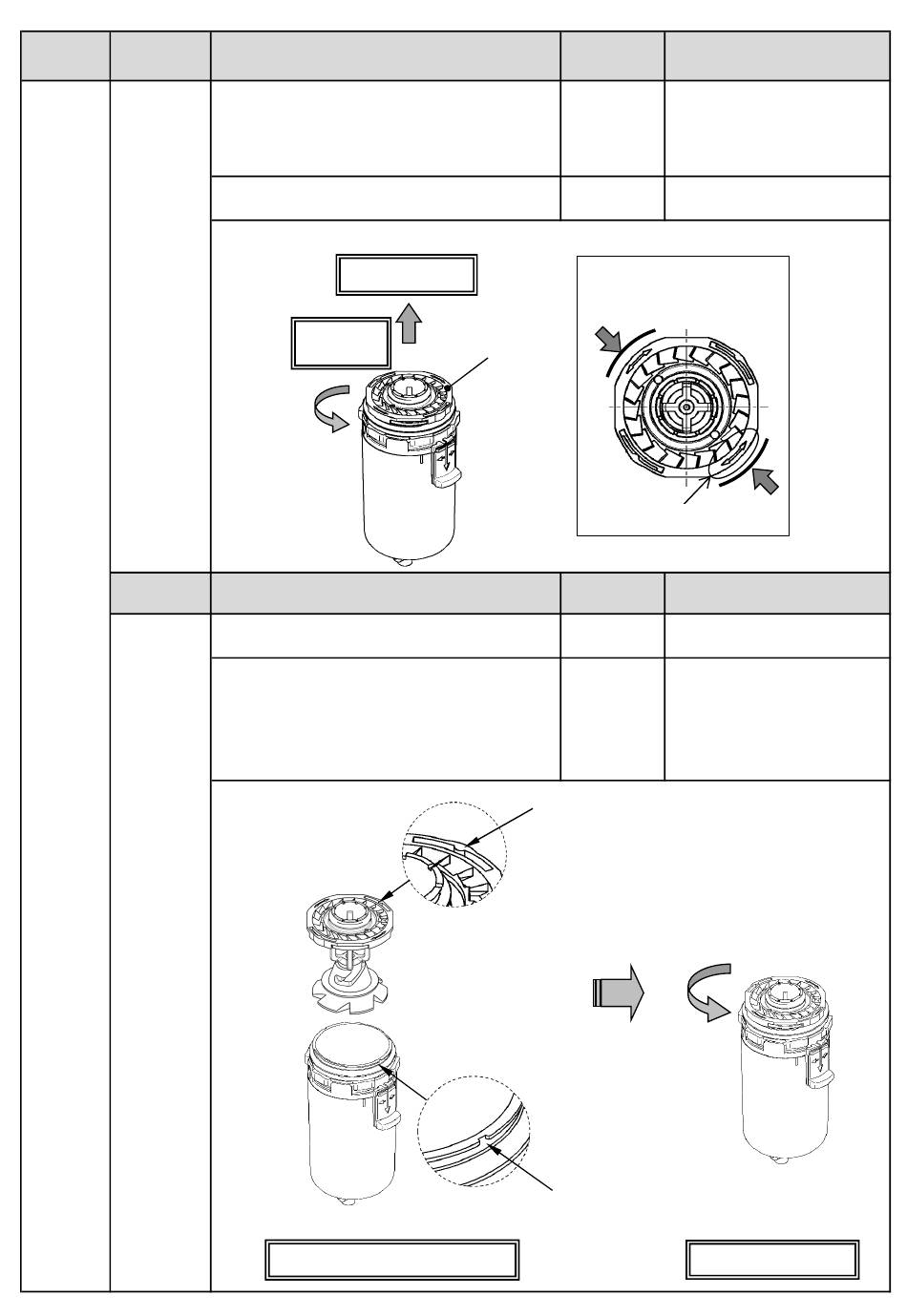

AFG30-D Disassembly 1) Remove the bowl assembly referring to the
AFG40-D
Work
category
Assembly
Procedure
section [10-1. Bowl Assembly Replacement]
(P23). With the bowl assembly removed, rotate
the deflector 90 degrees while holding the
holding parts.
2) Pull upward and remove the deflector assembly
while holding the holding part.
【Step 2】
Pull upward
【Step 1】
Rotate 90
degrees
Procedure
1) Insert the deflector assembly into the bowl
assembly.
2) Rotate 90 degrees in either direction so that the
protruded part of the deflector assembly
engages with the recessed part of the bowl
assembly. Mount the bowl assembly referring to
the section [10-1. Bowl Assembly Replacement]
(P23).
【Step 1】
Insert the deflector assembly
Holding part of the deflector
Deflector assembly
Engraved arrows
Recessed part
Protruded part
25
Tool Criteria
-
－
Tool Criteria
-
－
【Step 2】
Rotate 90 degrees
-
－
-
－
