Applicable Work
model category

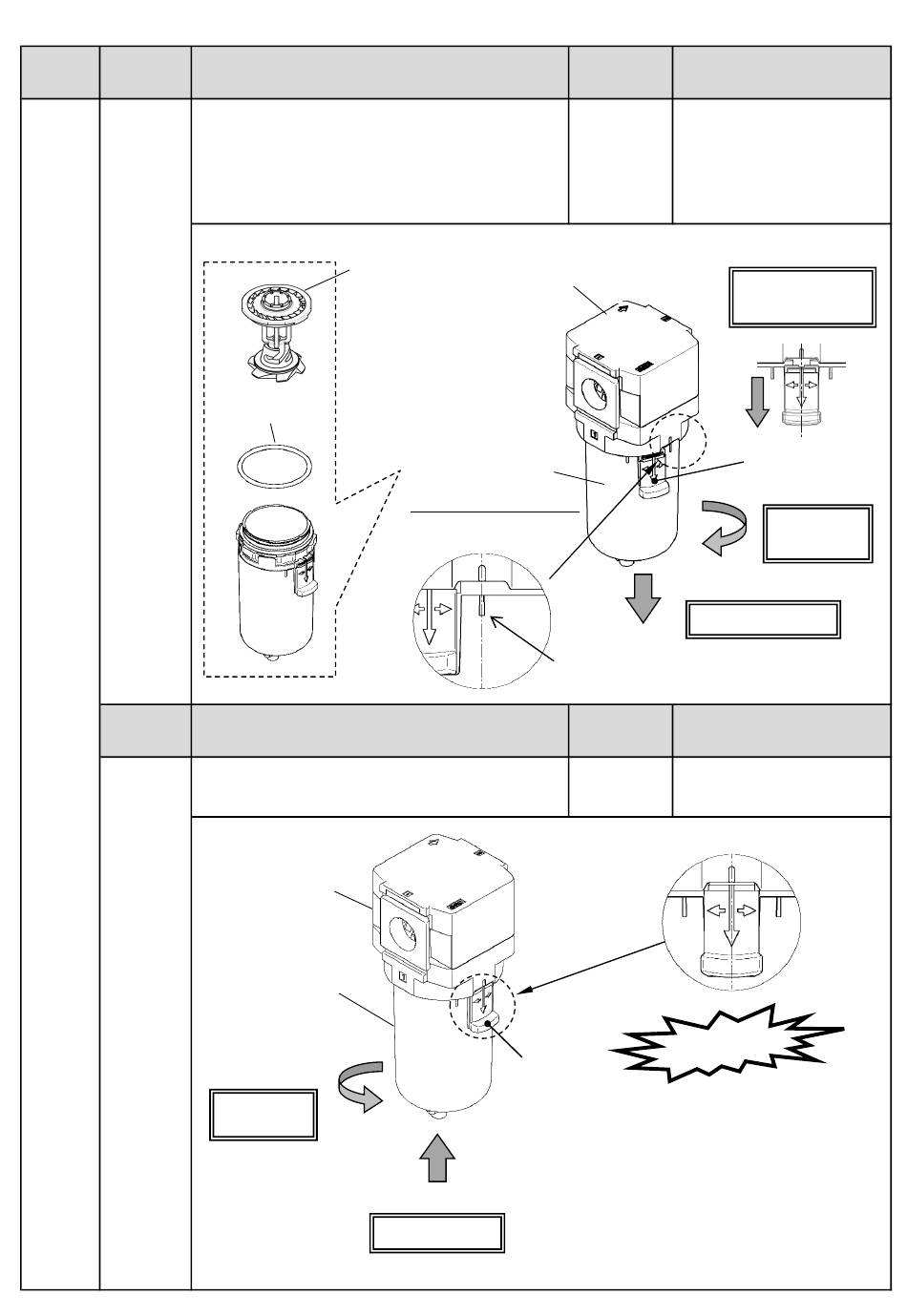

AFG30-D Disassembly 1) Remove the bowl assembly from the product.
AFG40-D
Work
category
Assembly 1) Mount the bowl assembly to the product and rotate
Procedure
While the lock button is held down, rotate the bowl
assembly by approx. 30 degrees so that the mating
marks of the body and bowl assembly meet each
other. Then remove the bowl assembly by pulling it
downward.
Deflector assembly
Replacement of the bowl
seal will be easier when the
Deflector assembly is
removed first.
Refer to the section
[10-2. Deflector assembly
mounting/dismounting]
(2)
Bowl seal
(P25).
Procedure
the bowl assembly until the lock button is locked in
position as shown in the figure below.
Product
(3)
Bowl assembly
【Step 2】
Rotate 30
degrees
【Step 1】
Insert upward
Product
(3)
Bowl assembly
Align the mating marks
Mating mark of the body
Mating mark of the
bowl assembly
Lock button
23
Tool Criteria
-
【Step 1】
Pull down
the lock button
Lock button
【Step 2】
【Step 3】
Pull downward
Tool Criteria
-
Caution
Make sure that the lock button
is locked to the flute of the
product before pressurising it.
-
Rotate 30
degrees
-
