7. Assembly of Optional Parts

Bracket
Water separator
Groove
Bottom of the
body
Bracket B

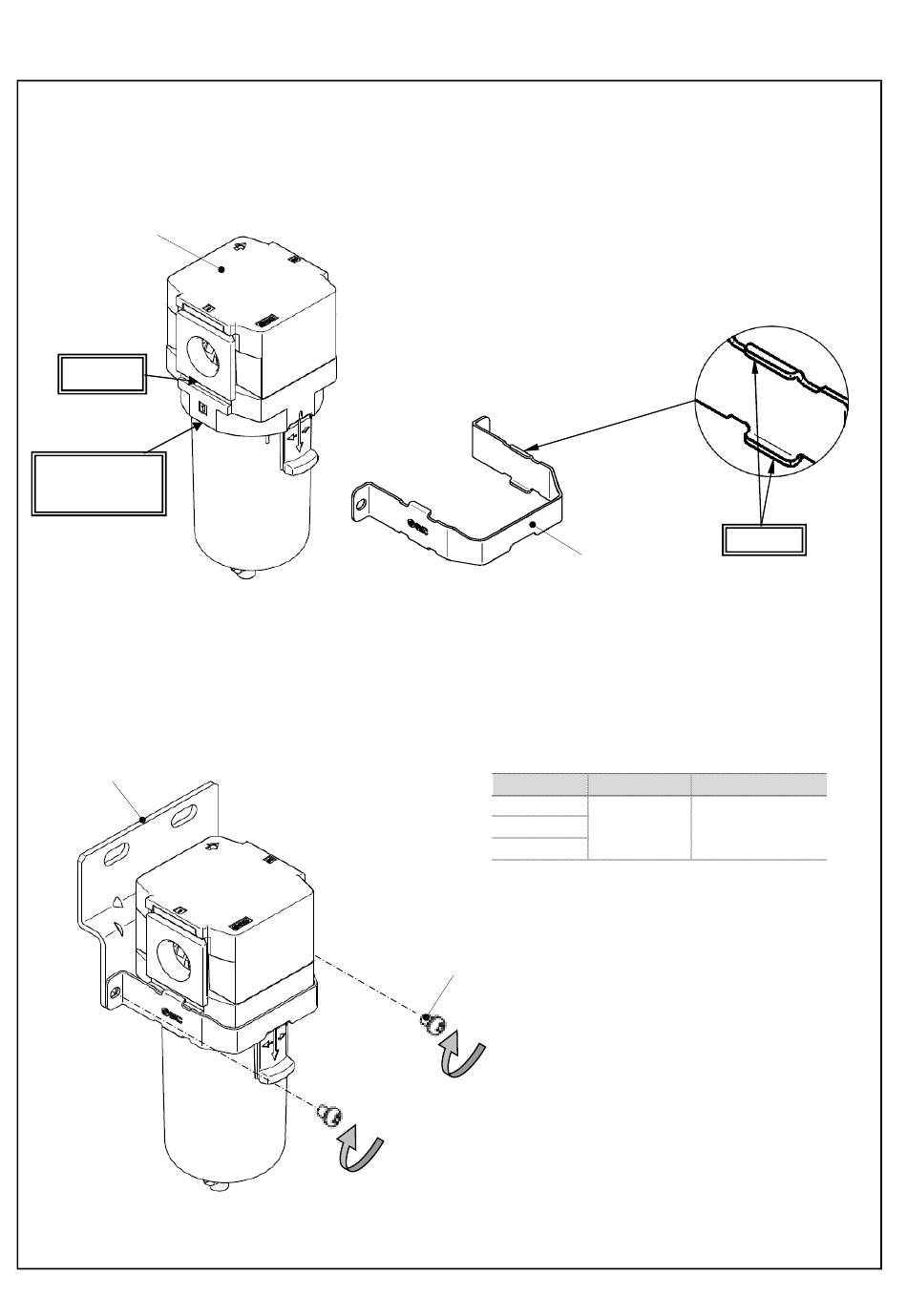

1) Mounting of bracket A
Insert bracket A from the front of the air filter so that
the fingers of the bracket A hold the air filter at the
groove and the bottom of the body.
Bracket A
2) Mounting of bracket B
Fix the bracket B with the set screw (2 pcs.) included
in the package. Refer to the table below for the
tightening torque.
Model
AFG20-D
AFG30-D
screwdriver
AFG40-D
Set screw
(2 pcs.)
18
Fingers
Tool Tightening torque
Phillips
0.75 + / - 0.2 N m
