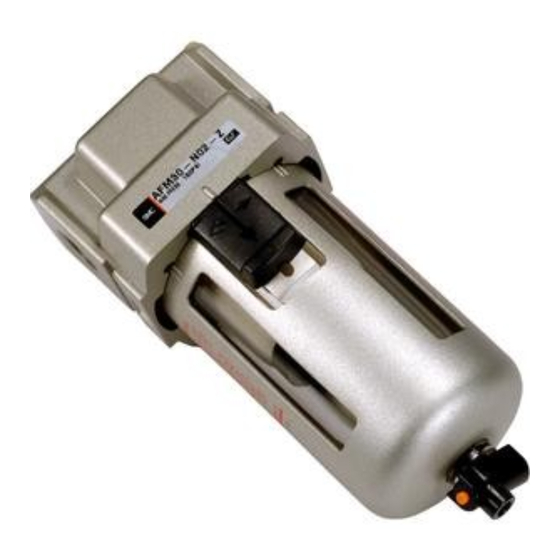

- Page 1 Doc. No. AF-OMX0053-C PRODUCT NAME Mist Separator MODEL / Series / Product Number AFM20-(F,N)01～(F,N)02(B,C)(-2,6,C,J,L,R,Z)-D AFM30-(F,N)02～(F,N)03(B,C,D)(-2,6,8,J,L,R,W,Z)-D AFM40-(F,N)02～(F,N)04(B,C,D)(-2,6,8,J,L,R,W,Z)-D AFM40-(F,N)06(B,C,D)(-2,6,8,J,R,W,Z)-D...
-
Page 2: Table Of Contents
Contents Page 1. Safety Instructions 2. Application 3. Standard Specifications 4. How to Order 5. Structural Drawing, Option and Replacement Parts 6. Bowl Assembly Specifications 11-18 7. Assembly of Optional Parts 8. Operation and Adjustment 20-21 9. Trouble Shooting 10. How to Replace the Components 23-26 10-1. -
Page 3: Safety Instructions
Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations. - Page 4 Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing business. Use in non-manufacturing business is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.
- Page 5 Precautions for Design Warning (1) Do not use the product if no leakage is allowed due to the environment, or if the fluid is not air. (2) Polycarbonate resin is used for the external parts including the bowl. Organic solvents including thinner, acetone, alcohol and ethylene chloride;...
- Page 6 Caution (1) Please install the product in a location where pulsation is unlikely to occur. When the difference between the inside and outside exceeds 0.1MPa, the element might be broken (2) AD27-D with auto drain may have leakage of accumulated drain during pressure exhaust (this leakage is allowed in their constructions and not considered failure).
- Page 7 Piping Warning (1) Before piping is connected, it should be thoroughly blown out with air (flushing) or washed to remove chips, cutting oil and solid foreign material from inside the pipe. Contamination of piping may cause damage or malfunction. (2) When screwing together pipes and fittings, etc., be certain that chips from the pipe threads and sealant do not get inside the pipe.
- Page 8 Handling Precautions Warning (1) Element service indicator (semi-standard: L) is used to check the differential pressure between IN and OUT ports. When the differential pressure exceeds 0.025 Mpa, the element service indicator may start even when the element is in initial state. (2) When adjusting the flow rate of the product with an element service indicator, adjust the flow rate from minimum to maximum.
-
Page 9: Application
2. Application This product aims at eliminating oil and solid foreign matter in the air line. 3. Standard Specifications Model AFM20-D AFM30-D AFM40-D AFM40-06-D Port size 1/8, 1/4 1/4, 3/8 1/4, 3/8, 1/2 Fluid ｡ Ambient and fluid temperature -5 to 60 C (with no freezing) Proof pressure 1.5 MPa... -
Page 10: How To Order
4. How to Order ❶ ❷ ❸ ❹ ❺ ❶ Symbol Description Body size ● ● ● ❷ ● ● ● Thread type ● ● ● ● ― ― ● ● ● ❸ ● ● ― Port size ● ― ―... -
Page 11: Structural Drawing, Option And Replacement Parts
5. Structural Drawing, Option and Replacement Parts Structural drawing / Option / Replacement parts AFM30-D / AFM40-D AFM20-D Option Part No. Part name AFM20-D AFM30-D AFM40-D AFM40-06-D Note 2) AF24P-070AS AF34P-070AS AF44P-070AS AF49P-070AS Bracket assembly Note 1) The number in the table and structural drawing is consistent with the number in the sections [10. How to Replace the Components] (P23-26) and [11. -
Page 12: Bowl Assembly Specifications
6． Bowl Assembly Specifications 6-1. Bowl assembly / auto drain for AFM20-D － － Option symbol － Semi-standard symbol Semi-standard: － (Standard) Semi-standard: C Piping port Piping port (4) Part No. (4) Part No. thread ty pe thread ty pe C2SF-D C2SF-C-D C2SF(-Z)-D... - Page 13 Note 1) Note 1) Option symbol － Semi-standard symbol Semi-standard: － Semi-standard: C Piping port Piping port (4) Part No. (4) Part No. thread ty pe thread ty pe AD27-D AD27-C-D AD27(-Z)-D AD27-C(Z)-D Appearance and part No. Semi-standard: 6 Semi-standard: 6C Piping port Piping port (4) Part No.
- Page 14 6-2. Bowl assembly / auto drain for AFM30-D － － Option symbol － Semi-standard symbol Piping port thread ty pe Appearance and part No. Piping port thread ty pe － Option symbol Semi-standard symbol Piping port thread ty pe Appearance and part No.
- Page 15 － － Option symbol Semi-standard symbol Appearance and part No. Note 1) Note 1) Option symbol － Semi-standard symbol Piping port thread ty pe Appearance and part No. Piping port thread ty pe Note 1) Option symbol Semi-standard symbol Semi-standard: 8 Piping port (4) Part No.
- Page 16 Note 1) Note 1) Option symbol － Semi-standard symbol Semi-standard: 2 Piping port Piping port (4) Part No. thread ty pe thread ty pe AD38-2-A AD38N-2(Z)-A Appearance and part No. Piping port thread ty pe Note 1) Option symbol Semi-standard symbol Appearance and part No.
- Page 17 6-3. Bowl assembly / auto drain for AFM40-D － － Option symbol － Semi-standard symbol Piping port thread ty pe Appearance and part No. Piping port thread ty pe － Option symbol Semi-standard symbol Piping port thread ty pe Appearance and part No.
- Page 18 － － Option symbol Semi-standard symbol Appearance and part No. Note 1) Note 1) Option symbol － Semi-standard symbol Semi-standard: － Piping port (4) Part No. thread ty pe AD47-D AD47N(-Z)-D Appearance and part No. Semi-standard: 6 Piping port (4) Part No. thread ty pe AD47-6-D AD47N-6(Z)-D...
- Page 19 Note 1) Note 1) Option symbol － Semi-standard symbol Piping port thread ty pe Appearance and part No. Piping port thread ty pe Note 1) Option symbol Semi-standard symbol Appearance and part No. Note 1) Minimum operating pressure is 0.1 MPa. Note 2) Part No.
-
Page 20: Assembly Of Optional Parts
7. Assembly of Optional Parts Bracket 1) Mounting of bracket A Insert bracket A from the front of the mist separator so Mist separator that the fingers of the bracket A hold the mist separator at the groove and the bottom of the body. Groove Bottom of the body... -
Page 21: Operation And Adjustment
8. Operation and Adjustment 8-1. Discharge from the product with drain cock Pressurize the inside of the mist separator when discharging drain. Drain will not be discharged properly if not pressurized. Drain discharge mechanism is different depending on the bowl assembly. Check the bowl assembly and discharge the drain following the method below. - Page 22 8-2. Manual drain discharge from the auto drain Pressurize the inside of the mist separator when discharging drain. Drain will not be discharged properly if not pressurized. To discharge the auto drain manually, follow the procedure below. After discharging the drain, rotate the cock to the opposite direction by hand to close the drain valve.
-
Page 23: Trouble Shooting
9. Trouble Shooting Refer to the sections [8. Operation and Adjustment] (P20-21), [10. How to Replace the Components] (P23-26) and [11. Disassembly Drawing] (P27). Trouble Page for Possible cause Countermeasure reference Category Failure As pressure drop 1. Clog of the element. Replace the element assembly. -
Page 24: How To Replace The Components
10. How to Replace the Components ！ Warning Before replacement, make sure that no pressure remains in the product. After replacement, confirm that the product satisfies specific functions and no external leakage occurs before operating it. 10-1. Bowl Assembly Replacement Applicable Work Procedure Tool... - Page 25 Applicable Work Procedure Tool Criteria model category AFM30-D Disassembly 1) Remove the bowl assembly from the product. AFM40-D While the lock button is held down, rotate the bowl assembly by approx. 30 degrees so that the mating － － marks of the body and bowl assembly meet each other.
-
Page 26: Element Replacement
10-2. Element Replacement Applicable Work Procedure Tool Criteria model category AFM20-D Disassembly 1) Remove the bowl assembly referring to the section Spanner [10-1. Bowl Assembly Replacement] (P23). After nominal size: that, remove the element assembly by rotating it counterclockwise using a spanner. Product Possible to apply spanner... - Page 27 Applicable Work Procedure Tool Criteria model category AFM30-D Disassembly 1) Remove the bowl assembly referring to the AFM40-D section [10-1. Bowl Assembly Replacement] － (P24). After that, remove the element assembly Round nose pliers by rotating it counterclockwise using round nose pliers.
-
Page 28: Disassembly Drawing
11. Disassembly Drawing AFM30-D, AFM40-D AFM20-D Body Body AFM30-D: Rod AFM40-D: Tension bolt Tension bolt Element assembly Element assembly Bowl seal Bowl seal Bowl assembly Bowl assembly -27-... -
Page 29: Dimensions
12. Dimensions (Port size) Optional specifications With Standard specifications Model Bracket mount auto drain ー AFM20-D 1/8, 1/4 87.6 17.5 104.9 AFM30-D 1/4, 3/8 115.4 21.5 26.5 26.5 157.1 AFM40-D 1/4, 3/8, 1/2 147.1 25.5 35.5 38.4 35.5 12.5 186.9 AFM40-06-D 149.1 35.5 38.4... - Page 30 Revision history Size 40-06 added. Addition to the Waning of the Piping. Nov. 2020. Element service indicator specification added. Sep. 2021. Changed the nylon bowl assembly number. (30,40 size) Nov. 2023 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
