10. How to Replace the Components

！ Warning
Before replacement, make sure that no pressure remains in the product.
After replacement, confirm that the product satisfies specific functions and no external leakage occurs before operating it.

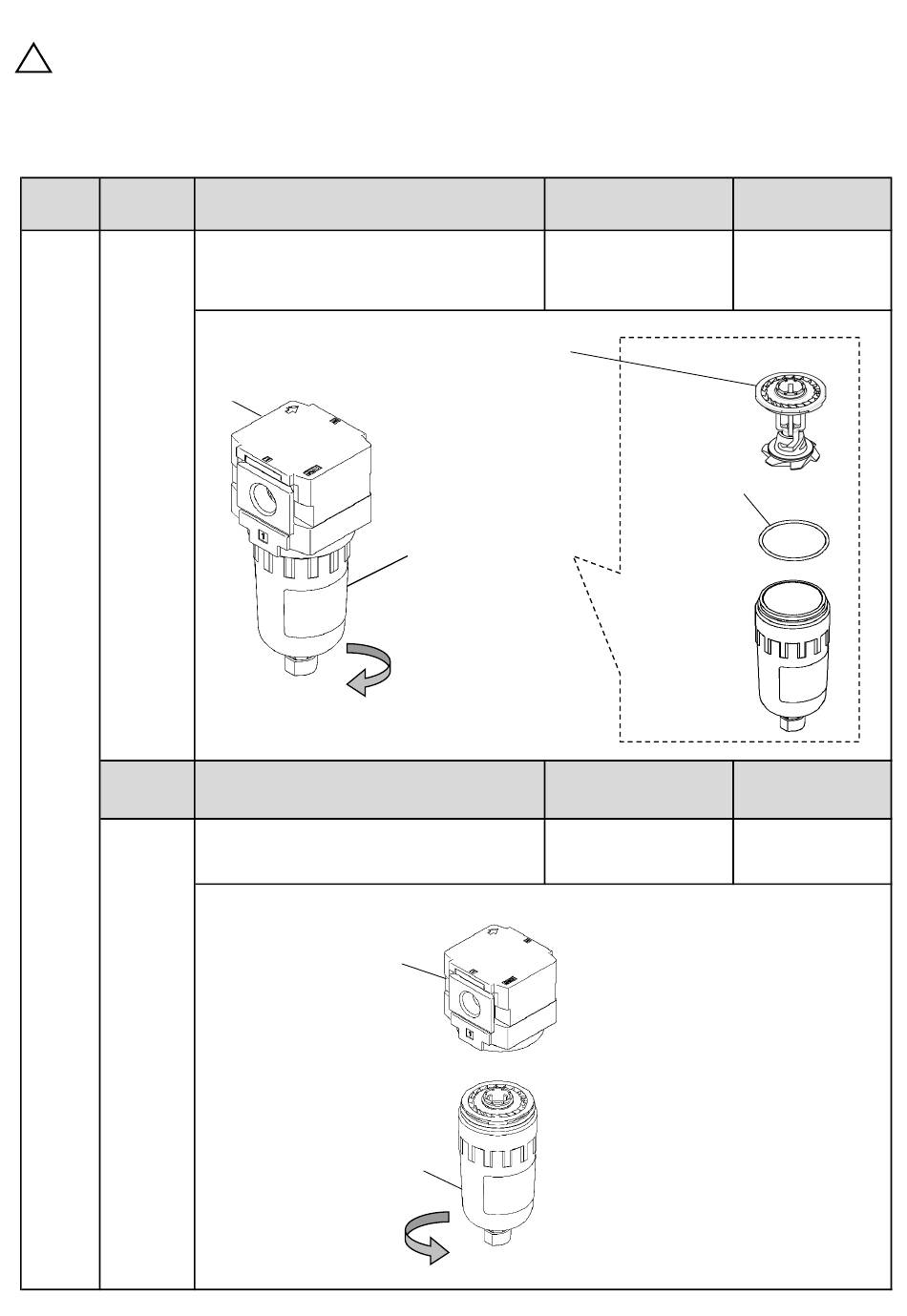

10-1. Bowl Assembly Replacement

Applicable Work
model category
AFG20-D Disassembly 1) Remove the bowl assembly from the product.
Work
category
Assembly
Procedure
If the bowl assembly is tightened too much to
be removed, use the spanner specified for SMC
until it can be loosened by hand.
Product
Procedure
1) Screw the bowl assembly into the product.
Tighten it referring to the specified torque.
Product
(3)
Bowl assembly
Spanner specified for SMC
Product No.: 1129129
Deflector assembly
Replacement of the bowl
seal will be easier when the
deflector assembly is
removed first.
Refer to the section
[10-2.Deflector assembly
mounting/dismounting]
(P24).
(3)
Bowl assembly
22
Tool Criteria
(2)
Bowl seal
Tool Criteria
Reference
- tightening
torque: 2.1 N m
-
