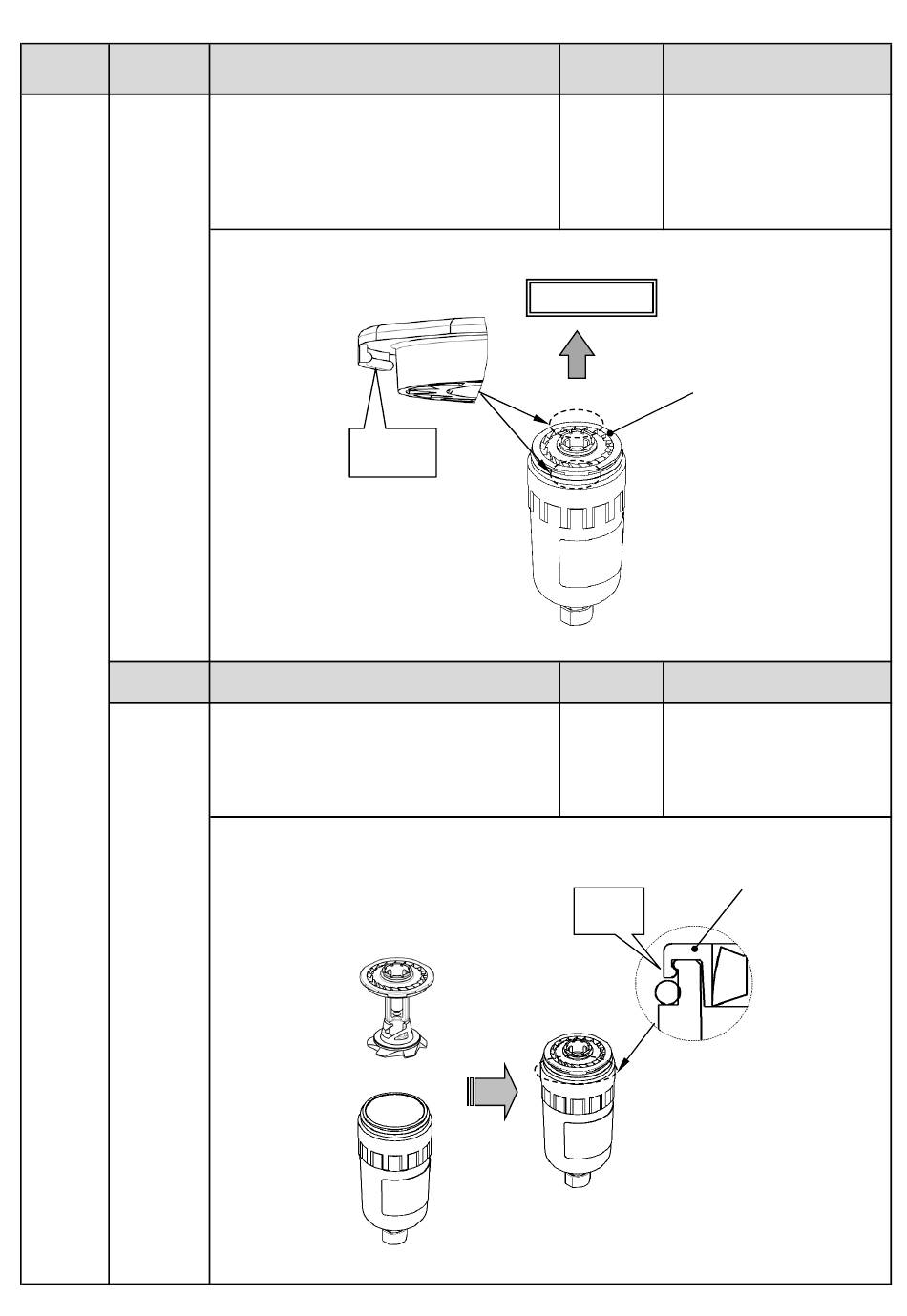

10-2. Deflector assembly mounting/dismounting

Applicable Work
model category
AFG20-D Disassembly 1) Remove the bowl assembly referring to the
Work
category
Assembly
Procedure
section [10-1. Bowl Assembly Replacement]
(P22), then remove the snap fits (2 pcs.) of the
deflector and pull upward to remove the
deflector assembly.
Snap fits
(2pcs.)
Procedure
1) Press the deflector assembly downward until
the snap fits (2 pcs.) are engaged with the bowl
assembly. Mount the bowl assembly referring to
section [10-1. Bowl Assembly Replacement]
(P22).
Tool
－
Pull upward
Tool
－
Snap fits
（2pcs.）
24
Criteria
－
Deflector assembly
Criteria
－
Deflector assembly
