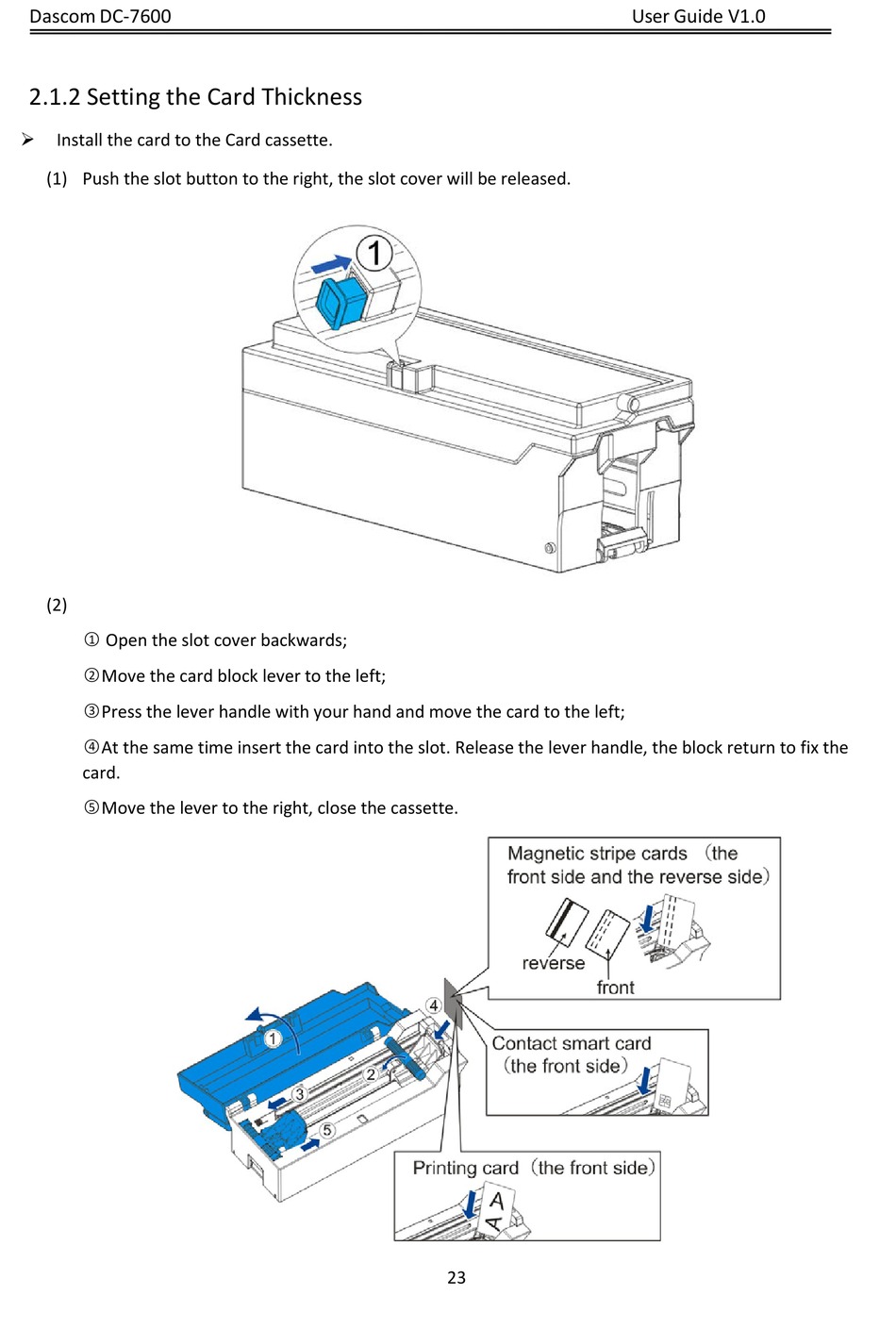

2.1.2 Setting the Card Thickness

Install the card to the Card cassette.

(1) Push the slot button to the right, the slot cover will be released.
(2)
Open the slot cover backwards;
○
1
E
A
M ove the card block lever to the left;
○
2
E
A A
P ress the lever handle with your hand and move the card to the left;
○
3
E
A A
A t the same time insert the card into the slot. Release the lever handle, the block return to fix the
○
4
E
A A
card.
M ove the lever to the right, close the cassette.
○
5
E
A A
23
