EVAL-AD7383FMCZ

DESCRIPTION OF MEMORY MAP VIEW WINDOW

Click Proceed to Memory Map in the AD7383 chip view window
(see Figure 14) to open the AD7383 Memory Map view window
shown in Figure 17. The AD7383 Memory Map view window
shows all registers of the AD7383.
The registers of the AD7383
when powered up. To implement the values changed in all of
the registers, click Apply Changes to write to the registers.
In some cases, the values of every register have been changed,
but the user wants to implement changes on a selected register
only. Click Apply Selected to write the new value on the
selected register to the AD7383.
Click Read All to read the values of all the registers from the chip.
Evaluation Board User Guide
are populated with default values

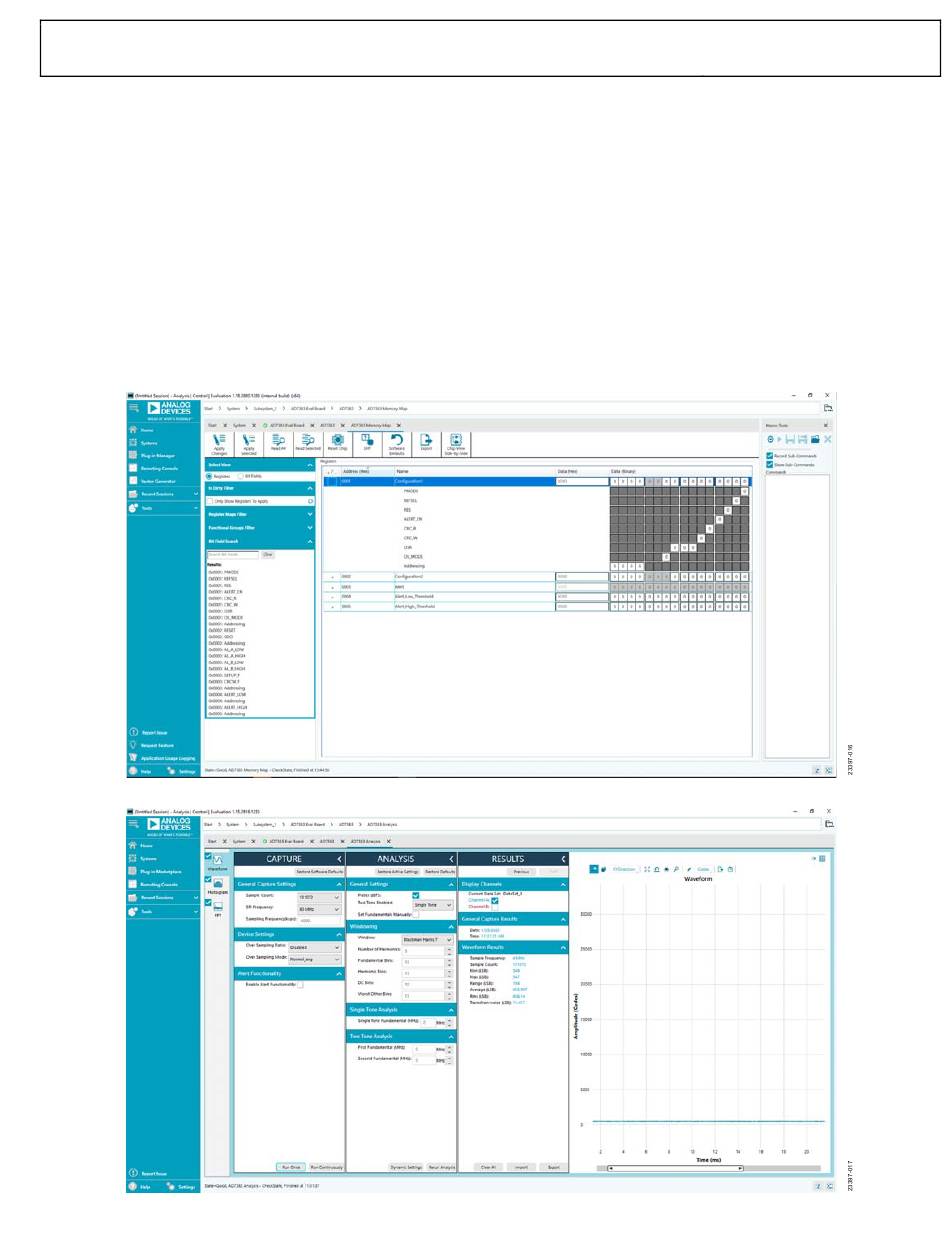

Figure 17. AD7383 Memory Map View Window
Figure 18. AD7383 Analysis View Window
Click Read Selected to read the selected register from the chip.
Click Reset Chip to prompt the software to reset the AD7383.
Click Diff to check for differences in register values between
the software and the chip.
To revert all the register values back to their defaults, click
Software Defaults, and then click Apply Changes to write to
the AD7383.

DESCRIPTION OF ANALYSIS VIEW WINDOW

Click Proceed to Analysis in the AD7383 chip view window (see
Figure 14) to open the AD7383 Analysis view window shown in
Figure 18. The AD7383 Analysis view window contains the
Waveform tab, Histogram tab, and FFT tab.
Rev. A | Page 13 of 16
UG-1770
