ACE SOFTWARE OPERATION

DESCRIPTION OF ANALYSIS VIEW WINDOW

The Analysis view window allows the user to showcase the per-

formance of the

ADAQ4001

or the ADAQ4003. Before performing

any measurements, set the capture settings (see the

analog.com

section) and analysis settings (see the

tion).

The Analysis view window contains the Waveform tab (see

20), Histogram Tab (see

CAPTURE

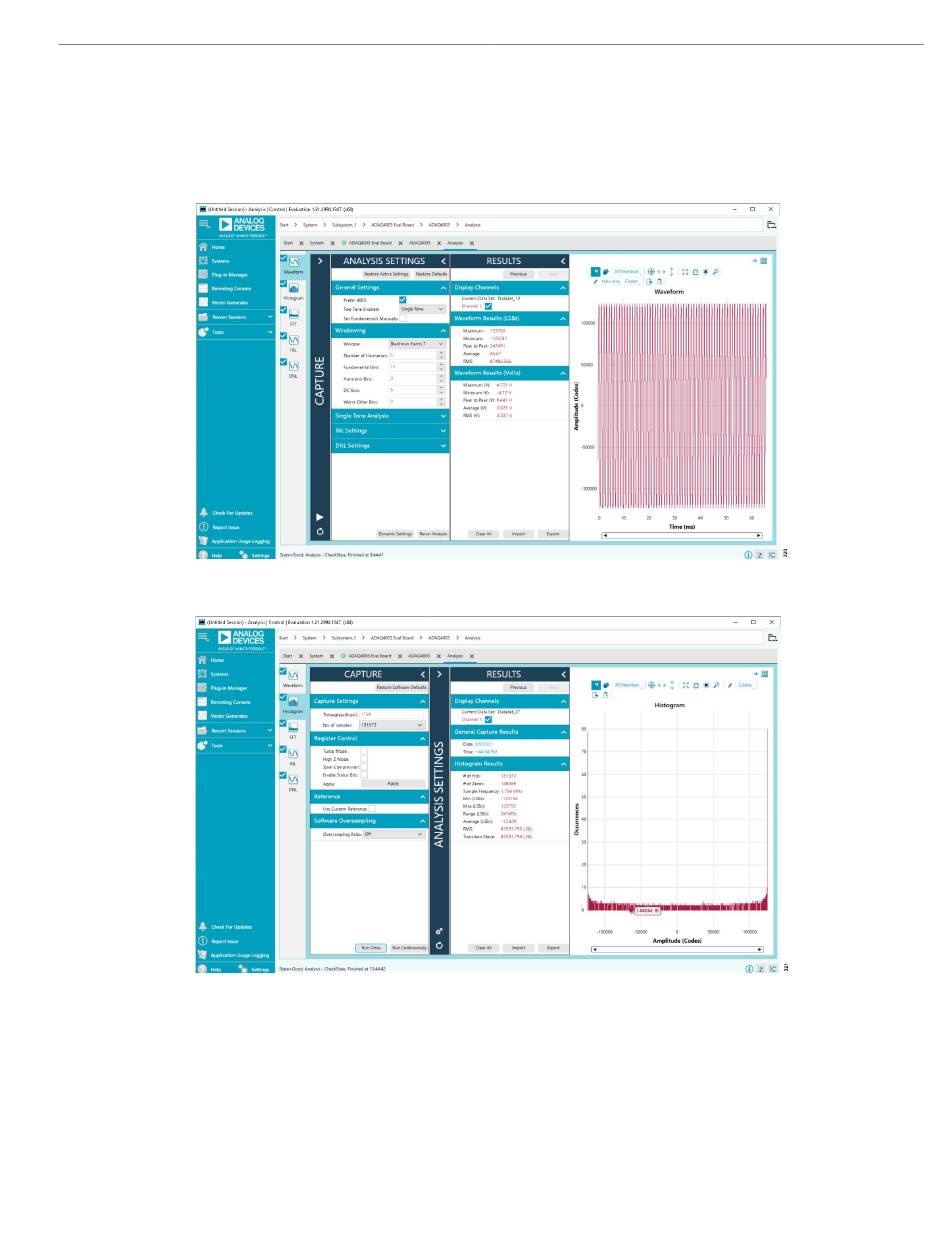

Figure 20. Waveform Tab

Figure 21. Histogram Tab

UG-1533

ANALYSIS SETTINGS

Figure

21), and FFT tab (see

Figure

Rev. A | 14 of 30

sec-

Figure

22).
