When data is altered but ENTER has not been pressed yet, then the alteration can still be
cancelled by waiting for 20 seconds or by pressing ENTER during three seconds: the former
value will be reinstated. The PRESET-value can be used time after time till a new value is
programmed.
Changes are only saved when you press the PROG/ENTER key.
▪
Leading zero
The amount of leading zeros is dependent on the batch maximum setting. In this menu the
leading zeros will show. When you confirm the selection with the PROG/ENTER key, the F130-P
will hide the leading zeros in the operational preset menu.
It is not possible to enter a preset value which exceeds the batch maximum setting. E.g. if the
batch maximum is set to 20000, it will not be possible to set 21000. If you want to preset
21000, you must change the batch maximum setting.
▪
Batch maximum/minimum
When you program a new value which is not valid, the decrease-sign ▼ (batch too big, program
a smaller batch) or the increase-sign ▲ (batch to small, program a bigger batch) will show.
▪
To start the batch process
The batch process can only be started when "READY" is shown. The batch process is started by
pressing the START/ key. Depending on the SETUP-settings, one or two relays will be
switched. The arrows at the display indicate if the ACTUAL-value is counting up or down.
▪
To interrupt or to stop the batch process
When the STOP/ key is pressed once, the batch process is paused; the actual values are not
lost. At the display, the word "PAUSE" blinks. In this case the, the batch process can be resumed
with the START/ key.
When the STOP/ key is pressed two times, the batch process is stopped completely. In this
case the actual values are "lost" and the system returns to steady state: the batch process
cannot be resumed.

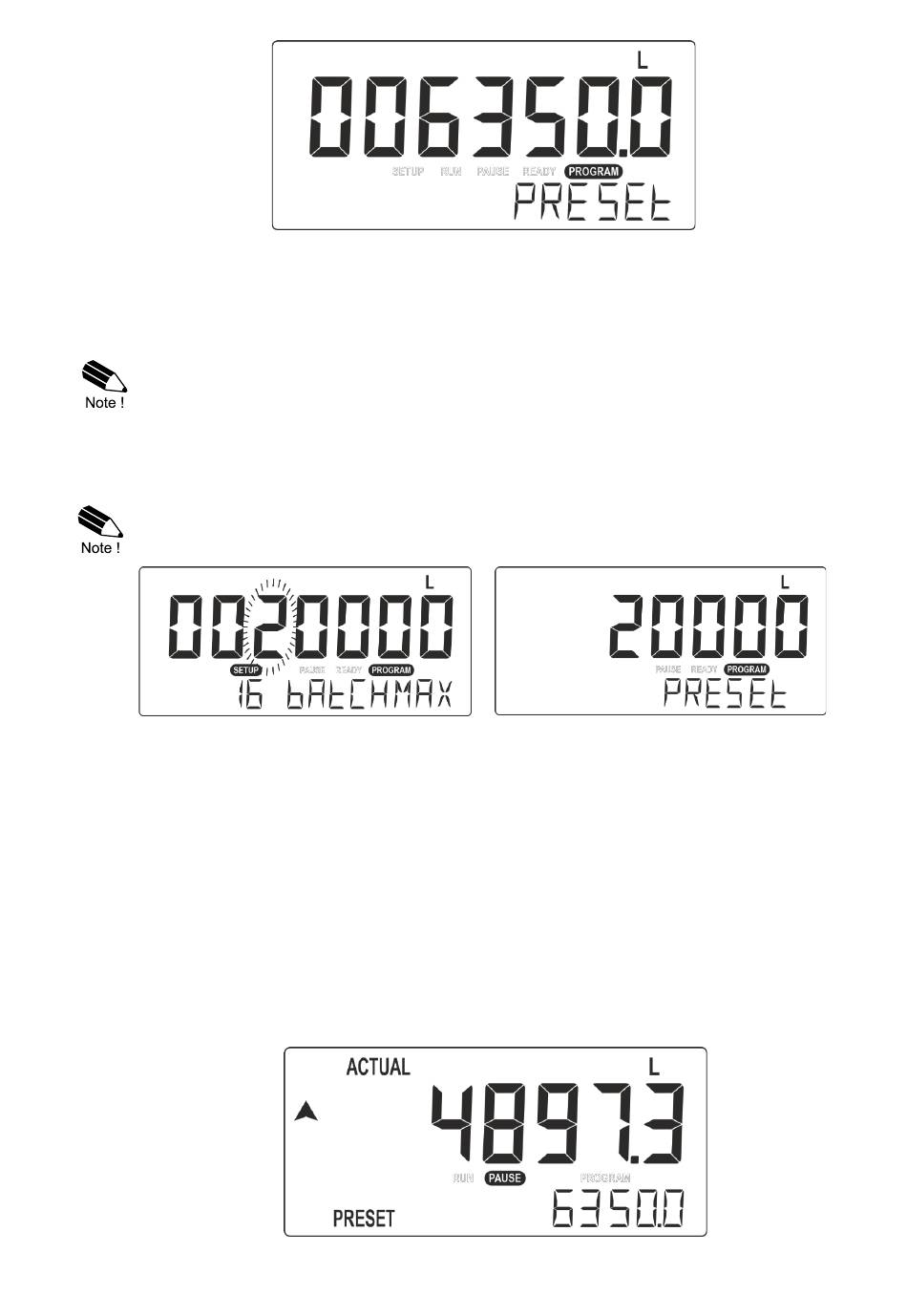

Fig. 4: Program preset value (typical).
Fig. 5: Leading zero (typical).
Fig. 6: Process paused (typical).
