1 INTRODUCTION

1.1

SYSTEM DESCRIPTION OF THE F130-P

Functions and features
The batch controller model F130-P is a microprocessor driven instrument designed for batching and
filling of small up to large quantities as well as displaying the flow rate, the total and the accumulated
total. This product has been designed with a focus on:
▪
ultra-low power consumption to allow long-life battery powered applications (type PB/PC);
▪
intrinsic safety for use in hazardous applications (type XI);
▪
several mounting possibilities with aluminum or GRP enclosures for harsh industrial
surroundings;
▪
ability to process all types of flowmeter signals;
Flowmeter input
This manual describes the unit with a pulse input from the flowmeter.
One flowmeter with a passive or active pulse, Namur or sine wave (coil) signal output can be
connected to the F130-P. To power the sensor, several options are available.
Standard outputs
▪
Two passive transistor or relay outputs: for two- or one stage control with pulse output.
▪
Pulse output to transmit a pulse that represents a totalized quantity as programmed.
Configuration of the F130-P
The F130-P is designed for use in many types of applications. For that reason, a setup menu is
available to program the F130-P according to your specific requirements.

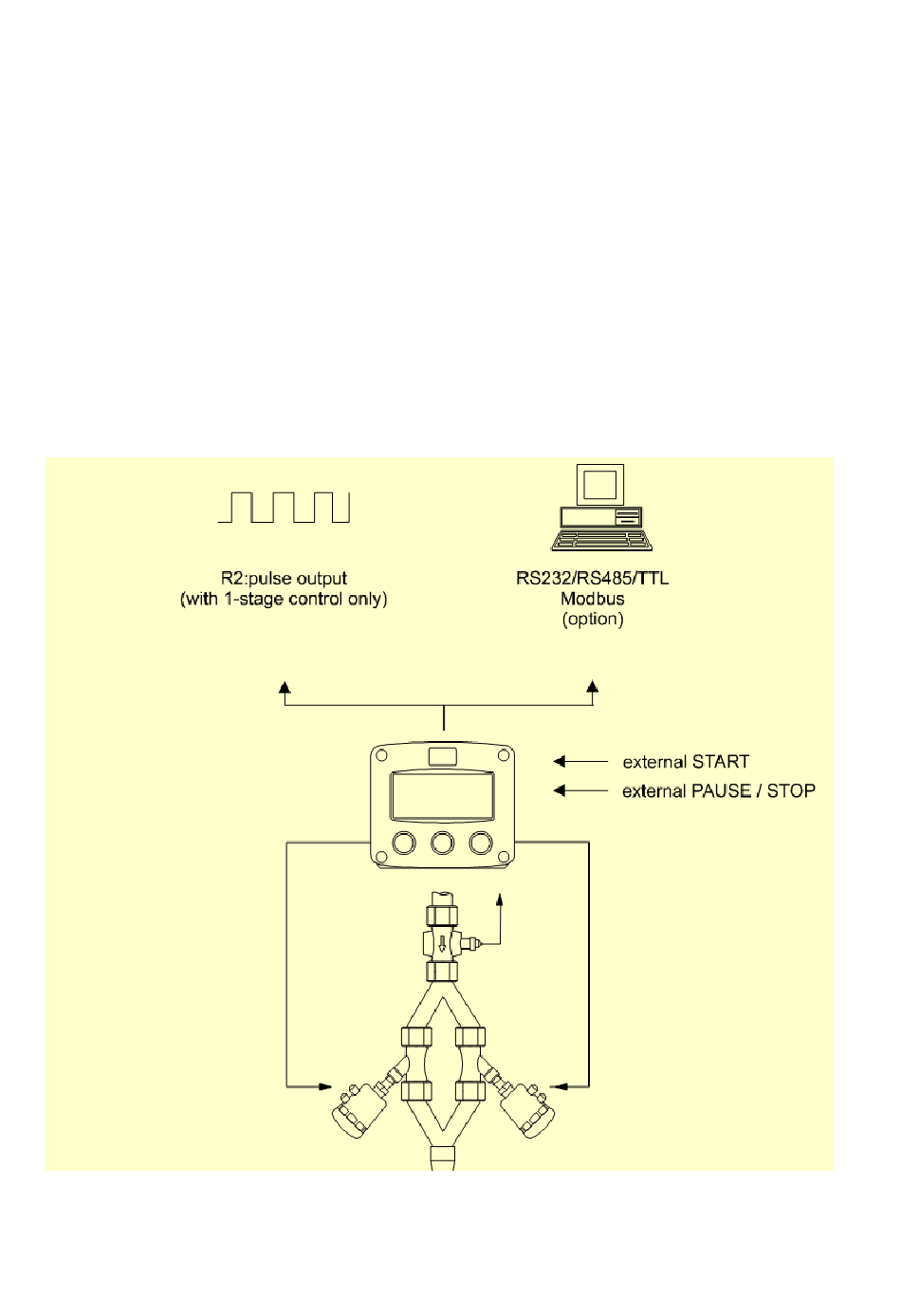

Fig. 1: Typical application
