2 OPERATIONAL

2.1

GENERAL INFORMATION

This chapter describes the daily use of the F130-P. This instruction is meant for users / operators.
•
This device may only be operated by persons who are authorized and trained by the
operator of the facility. All instructions in this manual are to be observed.
•
Take careful notice of the "Safety rules, instructions and precautionary measures" in the
front of this manual.
2.2

CONTROL PANEL

The control panel has three keys. The following keys are available:
Functions of the keys
This key is used to program and save new values or settings.
The PROG/ENTER key is also used to gain access to the setup menu (read
chapter 3).
This key is used to START the batch process.
The START/ key is also used to increase a value after the PROG/ENTER key has
been pressed (read chapter 3).
This key is used to pause or stop the batch process. When the batch process is
stopped, it cannot be continued. The STOP/ key is also used to select the total and
the accumulated total.
The STOP/ key is also used to select a digit or an option after the PROG/ENTER
key has been pressed (read chapter 3).
2.3

OPERATOR INFORMATION AND FUNCTIONS

In general, the F130-P operates in the operator mode. The shown information depends on the
settings which are made in the setup menu.
The signal from the connected sensor is processed by the F130-P in the background, independent
from the selected display refresh rate.

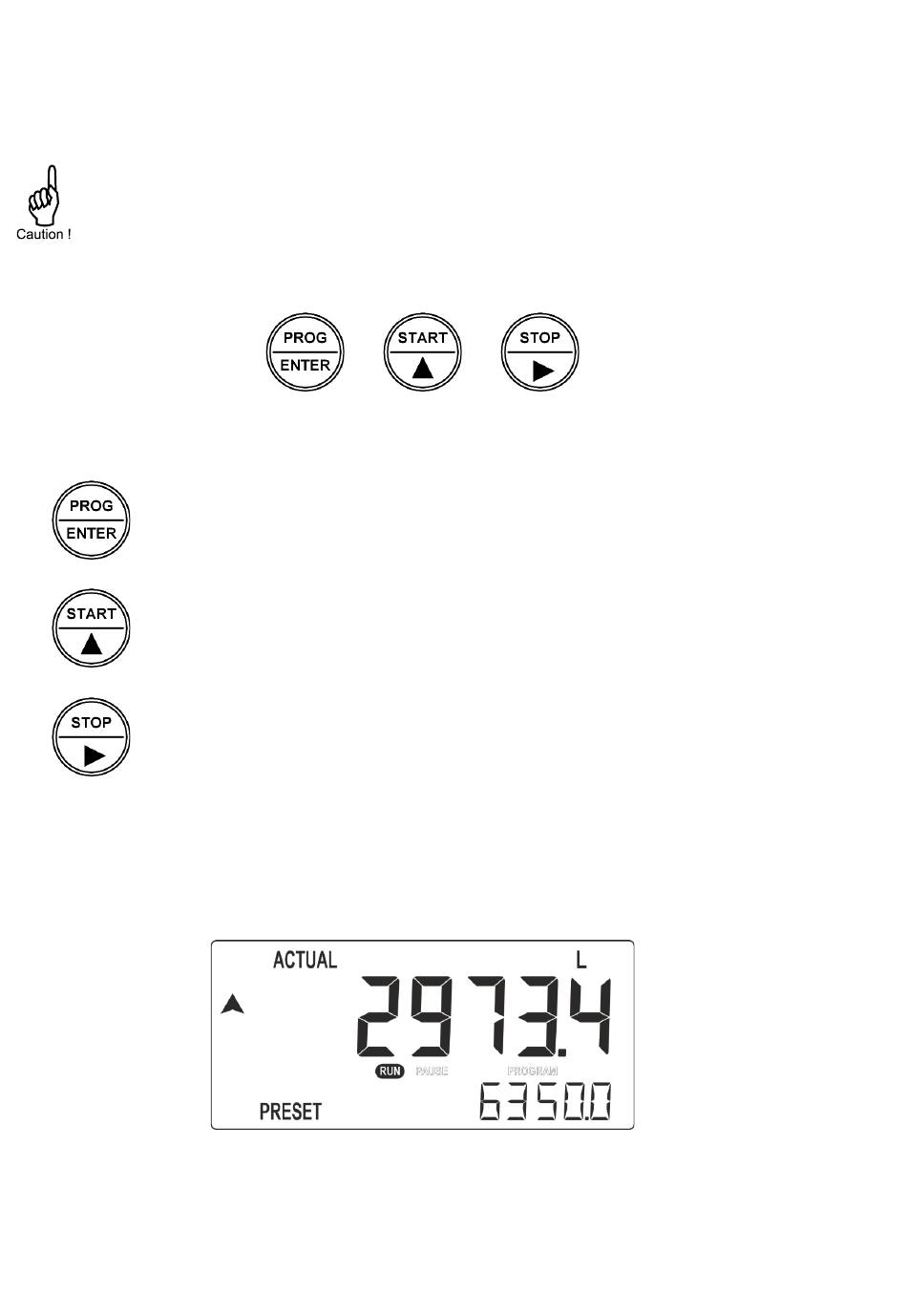

Fig. 3: Example of display information during process.
▪
To enter a batch quantity (change the preset)
You can only change the preset when the READY indicator is on.
1. Press the PROG/ENTER key until the PROGRAM indictor starts to blink.
2. Use the START/ and STOP/ key to change the value.
3. Momentarily, press the PROG/ENTER key to confirm the new preset.
Fig. 2: Control panel.
