MODULAR SYSTEM DESCRIPTION

1.1 INTRODUCTION
This manual is for the construction main-
tenance and operation of a modular unit
composed of multiple premixed conden-
sation boilers in the MURELLE EQUIPE
220-660 ErP series linked in sequence/
cascade independently of one another.
The packages are provided with the fol-
lowing codes:
– MURELLE EQUIPE 220 ErP
Boilers and Mounting Frames and He-
aders code 9001220
Low Loss Header Connection Kit code
8101532
Low Loss Header code 8101552
1.2 DIMENSIONS AND FITTINGS
Note: The low loss header and flue can be positioned to exit at either the left or right hand side.

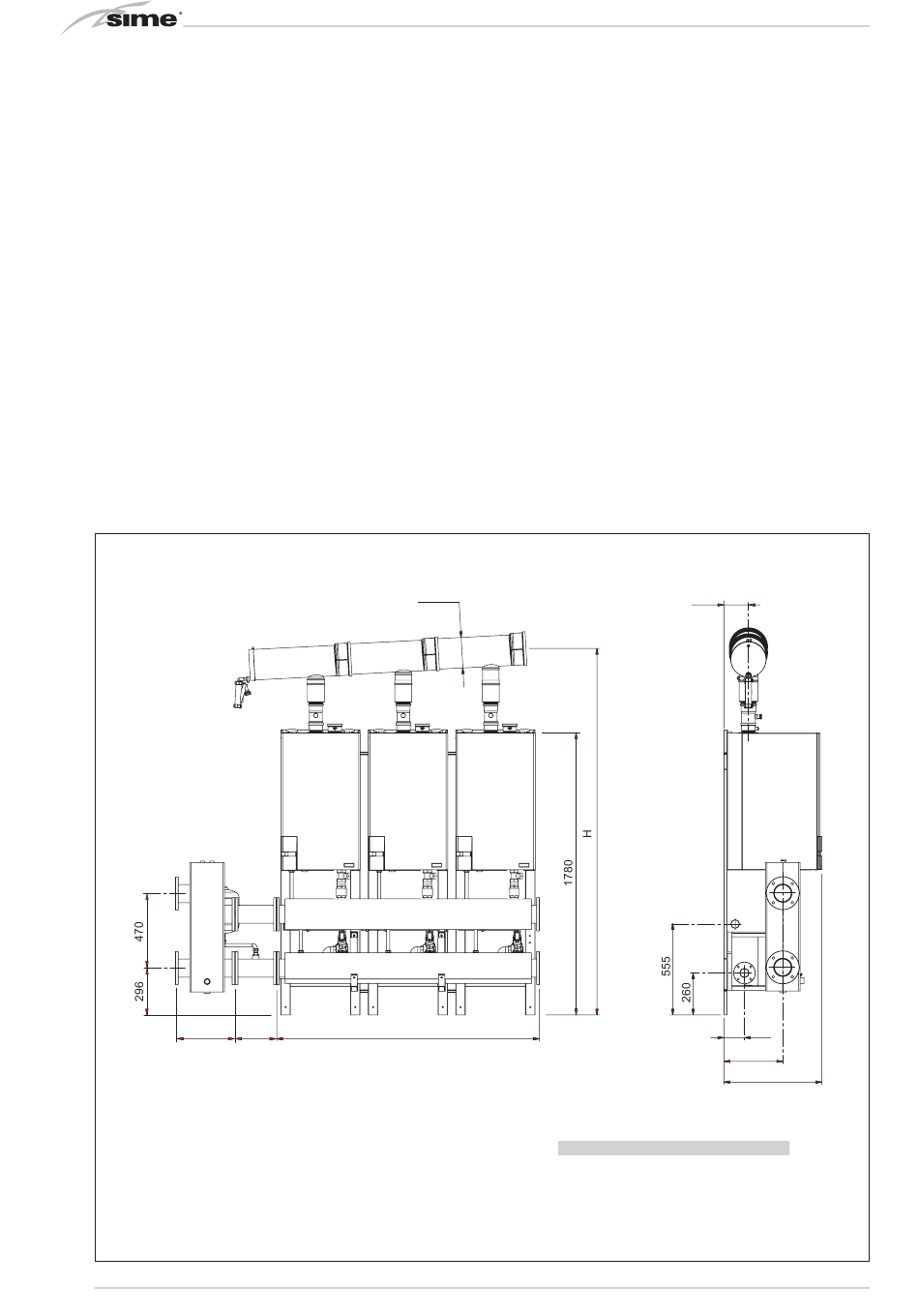

1.2.1 MURELLE EQUIPE 220-330 ErP (fig. 1/a)
MURELLE EQUIPE 220-330 UK
M
R
260
380
FIXTURES
MURELLE EQUIPE 440-550 UK
M C.H. flow (Flange PN6-DN100)
R C.H. return (Flange PN6-DN100)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
4
Cascade Flue code 9000220
– MURELLE EQUIPE 330 ErP
Boilers and Mounting Frames and He-
aders code 9001330
Low Loss Header Connection Kit code
8101532
Low Loss Header code 8101552
Cascade Flue code 9000330
– MURELLE EQUIPE 440 ErP
Boilers and Mounting Frames and He-
aders code 9001440
Low Loss Header Connection Kit code
8101533
Low Loss Header code 8101553
Cascade Flue code 9000440
– MURELLE EQUIPE 550 ErP
ø D
L
Boilers and Mounting Frames and He-
aders code 9001550
Low Loss Header Connection Kit code
8101533
Low Loss Header code 8101553
Cascade Flue code 9000550
– MURELLE EQUIPE 660 ErP
Boilers and Mounting Frames and He-
aders code 9001660
Low Loss Header Connection Kit code
8101533
Low Loss Header code 8101553
Cascade Flue code 9000660
VENTILATION, for guidance see APPEN-
DIX 2.
155
S3
G
DIMENSIONS
Murelle Equipe 220 ErP 330 ErP
L mm 1104
H mm 2292
ø D
D mm 200
131
374
620
1656
2326
200
155
Fig. 1/a
