1.11

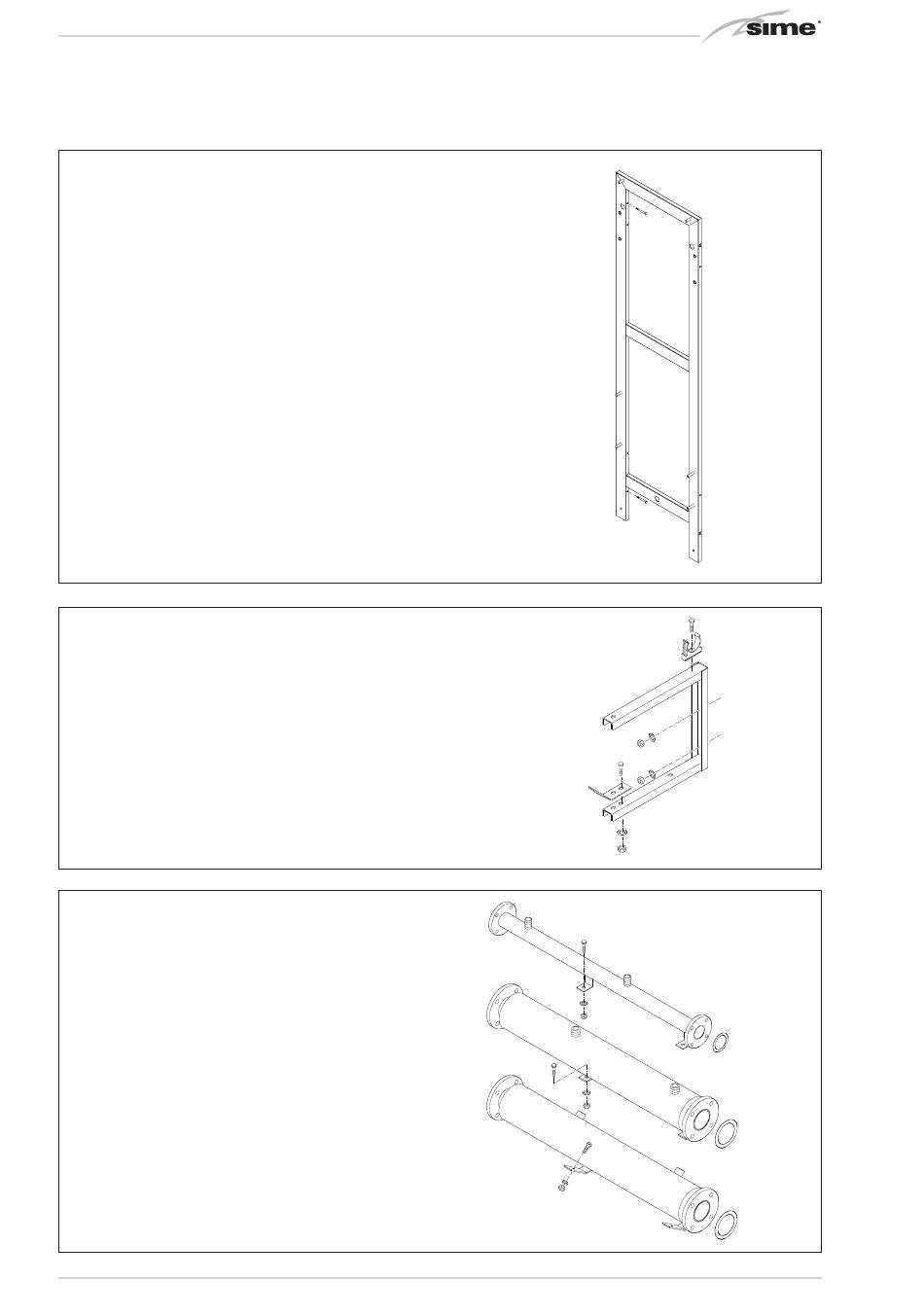

COMPOSITION OF THE KIT (fig. 5)
– N. 2 frames code 6294800 (MURELLE EQUIPE 220 ErP)
– N. 3 frames code 6294800 (MURELLE EQUIPE 330 ErP)
– N. 4 frames code 6294800 (MURELLE EQUIPE 440 ErP)
– N. 5 frames code 6294800 (MURELLE EQUIPE 550 ErP)
– N. 6 frames code 6294800 (MURELLE EQUIPE 660 ErP)
M
G
R
M2
– N. 2 collector support brackets code 6294811
(MURELLE EQUIPE 220-330 ErP)
– N. 4 collector support brackets code 6294811
(MURELLE EQUIPE 440-550-660 ErP)
– N. 2 polyurethane coated delivery/return collectors code
6291940 with gasket and M12 fixing screws and N. 1 gas col-
lectors code 6286330 (MURELLE EQUIPE 220 ErP)
– N. 2 polyurethane coated delivery/return collectors code
6291941 with gasket and M12 fixing screws and N. 1 gas col-
lectors code 6286331 (MURELLE EQUIPE 330 ErP)
– N. 4 polyurethane coated delivery/return collectors code
6291940 with gasket and M12 fixing screws and N. 2 gas col-
lectors code 6286330 (MURELLE EQUIPE 440 ErP)
– N. 2 polyurethane coated delivery/return collectors code
6291940 + N. 2 polyurethane coated delivery/return collec-
tors code 6291941 with gasket and M12 fixing screws, N.
2 gas collectors code 6286330 + N. 1 gas collectors code
6286331 (MURELLE EQUIPE 550 ErP)
– N. 4 polyurethane coated delivery/return collectors code
6291941 with gasket and M12 fixing screws and N. 2 gas col-
lectors code 6286331 (MURELLE EQUIPE 660 ErP)
Pmax
Pmin
Pmax
Pmin
M
G
M2
K
C
Fig. 5/a
K
C
KI
Fig. 5/b
C
K
C
Fig. 5/c
11
