M
G
R
M2

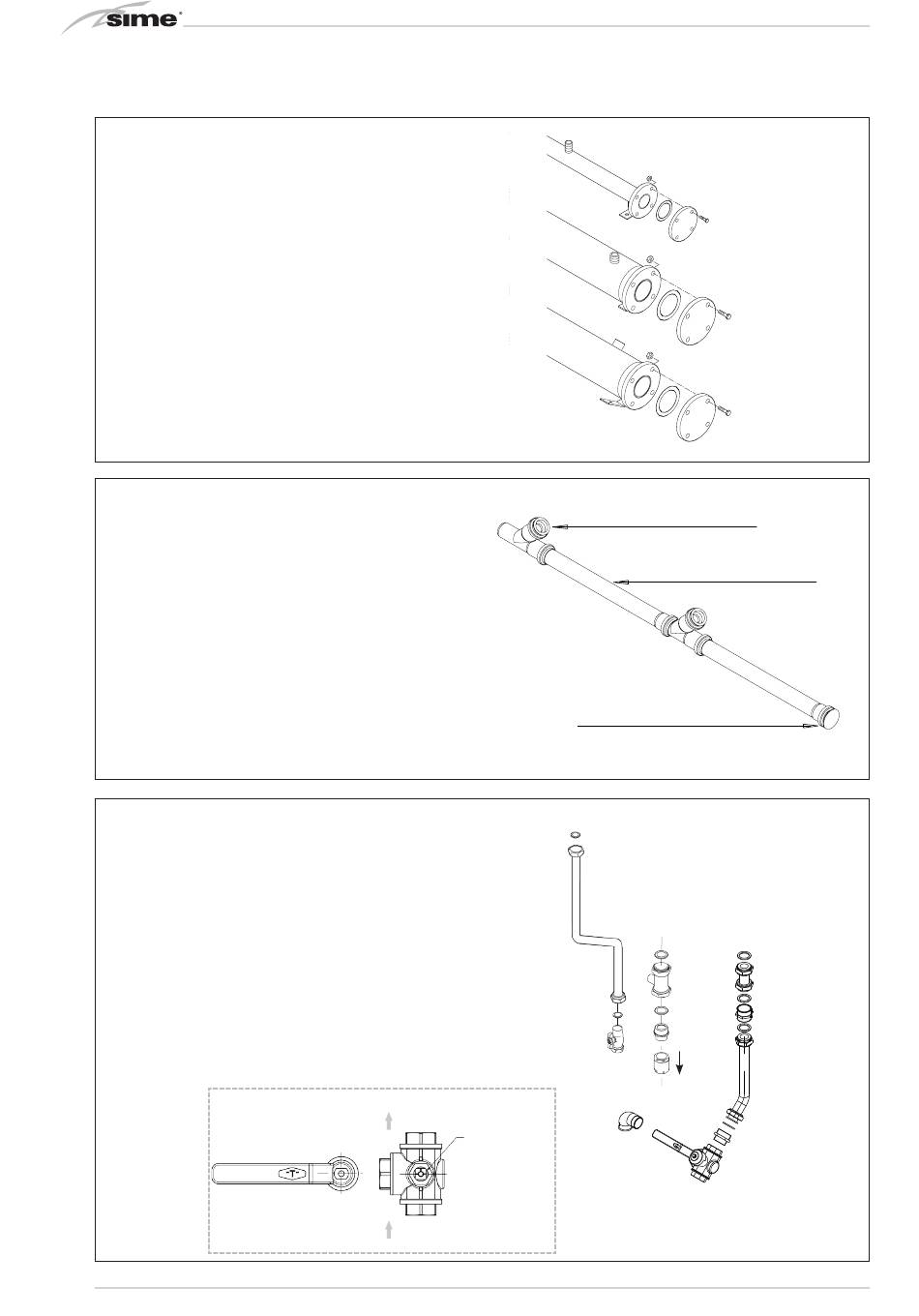

– N. 1 blind flange PN6 DN 50 for gas collector with gasket
and fixing screws, code 6105150
– N. 2 blind flanges PN6 DN 100 for system delivery/return
collectors with gasket and fixing screws, code 6105155
– N. 1 condensate drain collector consisting of 2 fittings, 2 tubes
and 1 cap. Moreover, the collector is supplied with brackets,
nuts and M8 fixing screws (MURELLE EQUIPE 220 ErP)
– N. 1 condensate drain collector consisting of 3 fittings, 3 tubes
and 1 cap. Moreover, the collector is supplied with brackets,
nuts and M8 fixing screws (MURELLE EQUIPE 330 ErP)
– N. 1 condensate drain collector consisting of 4 fittings, 4 tubes
and 1 cap. Moreover, the collector is supplied with brackets,
nuts and M8 fixing screws (MURELLE EQUIPE 440 ErP)
– N. 1 condensate drain collector consisting of 5 fittings, 5 tubes
and 1 cap. Moreover, the collector is supplied with brackets,
nuts and M8 fixing screws (MURELLE EQUIPE 550 ErP)
– N. 1 condensate drain collector consisting of 6 fittings, 6 tubes
and 1 cap. Moreover, the collector is supplied with brackets,
nuts and M8 fixing screws (MURELLE EQUIPE 660 ErP)
– N. 2 kit of three-way/gas delivery/return cocks with connection tubes,
nipple 1", check valve and gaskets (MURELLE EQUIPE 220 ErP)
– N. 3 kit of three-way/gas delivery/return cocks with connection tubes,
nipple 1", check valve and gaskets (MURELLE EQUIPE 330 ErP)
– N. 4 kit of three-way/gas delivery/return cocks with connection tubes,
nipple 1", check valve and gaskets (MURELLE EQUIPE 440 ErP)
– N. 5 kit of three-way/gas delivery/return cocks with connection tubes,
nipple 1", check valve and gaskets (MURELLE EQUIPE 550 ErP)
– N. 6 kit of three-way/gas delivery/return cocks with connection tubes,
nipple 1", check valve and gaskets (MURELLE EQUIPE 660 ErP)
CAUTION: Before assembling the three-way drain cocks, direct the ball
KIT COLLETTORE FUMI "MURELLE EQUIPE 550 ErP"
regulator shaft as indicated in the figure.
COD. 5192961
LEVER ASSEMBLY POSITION
12
COD. 6296530
L= 170
NIPPLE 3/4"
SHAFT DIRECTION
DRAIN
BALL ADJUSTMENT
CURVE
COD. 5192954
RETURN
COLLECTOR
COD. 6296530
COD. 5192954
L= 170
COD. 5192954
COD. 6296530
L= 170
COD. 5192954
COD. 6296530
L= 170
45° fitting code 6034301
Raccordo a 45° cod. 6034301
Plastic tube code 6034304
Tubo in plastica cod. 6034301
Cap code 6034303
Tappo cod. 6034303
L=31
COD. 519295
COD. 629651
L=250
Fig. 5/d
Fig. 5/e
M
C.H. flow
R
C.H. return
G
Gas
M2 D.H.W. tank flow
Fig. 5/f
