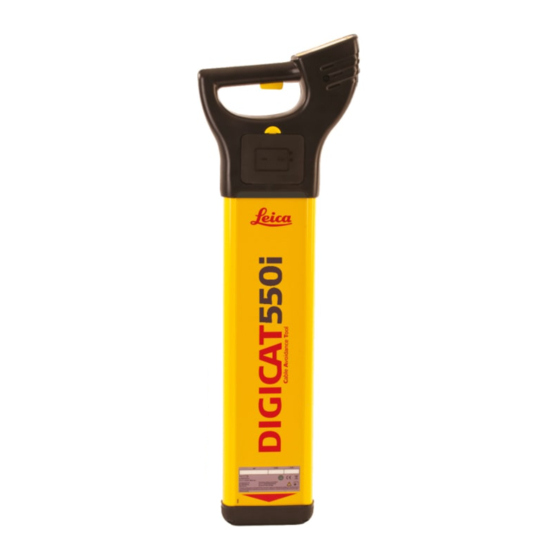

Leica DIGICAT 500i/550i
User Manual
V 1.0

Advertisement

Table of Contents
loading

Related Manuals for Leica DIGICAT 500i

Summary of Contents for Leica DIGICAT 500i

  • Page 1 Leica DIGICAT 500i/550i User Manual V 1.0...
  • Page 3 Leica DIGICAT 500i/550i User Manual Version 1.0 English...
  • Page 4 The model and the serial number of your product are indicated on the type plate. Enter the model and serial number in your manual and always refer to this information when you need to contact your agency or Leica Geosystems authorised service workshop. Type: _________________________ Serial No.:...
  • Page 5 This manual applies to all DIGISYSTEM instruments, which are the i Series. Differences Validity of this manual between the various instruments and models are marked and described. DIGICAT 500i/550i, Introduction...

  • Page 6: Table Of Contents

    DIGICAT 500i/550i, Table of Contents Table of Contents In this manual Chapter Page General Information How to Use this Manual i Series General Information i Series Instruments and Accessories How to Use the Locator General Information Locator Overview Locator Setup and Information...
  • Page 7 How to Locate a Service Using the Sonde Care and Transport Transport Storage Cleaning and Drying Safety Directions General Introduction Intended Use Limits of Use Responsibilities Hazards of Use Electromagnetic Compatibility EMC FCC Statement, Applicable in U.S. DIGICAT 500i/550i, Table of Contents...

  • Page 8: Digicat 500I/550I, Table Of Contents

    DIGICAT 500i/550i, Table of Contents Technical Data 10.1 Locator i Series Technical Data 10.2 Transmitter Technical Data 10.3 Conductive Rod Technical Data 10.4 Sonde Technical Data 10.5 Property Connection Set Technical Data 10.6 Signal Clamp Technical Data International Limited Warranty...
  • Page 9 DIGICAT 500i/550i, Table of Contents...

  • Page 10: General Information

    It is recommended to set up the product while reading through this manual. Naming convention DIGICAT 500i, DIGICAT 550i are hereinafter referred to as Locator. Differences between the models are marked and described. DIGITEX is hereinafter referred to as Transmitter.

  • Page 11: Series General Information

    Services without a detectable signal may be present. The Locators can only locate non-metallic services such as plastic pipes, typically used by the water and gas utilities, with the use of appropriate accessories. Precautions: Always excavate with care. DIGICAT 500i/550i, General Information...
  • Page 12 DIGICAT 500i/550i, General Information Accessories Designed to increase the detection of services with no (or little) signals on them. Generally work in conjunction with the Locator and Transmitter. Functional Check Designed to demonstrate the equipment is working satisfactorily in between service inter-...

  • Page 13: Series Instruments And Accessories

    The i Series is a collection of products used to locate buried metallic and nonmetallic serv- ices. i Series instruments overview a) Locator b) Transmitter i Series accessories overview a) Conductive Rod (non metallic service tracer) b) Extension Cable c) Property Connection d) Signal Clamp e) Sonde DIGICAT 500i/550i, General Information...

  • Page 14: How To Use The Locator

    DIGICAT 500i/550i, How to Use the Locator How to Use the Locator General Information Operating modes • Passive modes (Power and Radio) • Active modes (8 kHz and 33 kHz) • Auto mode (Combined Power and Radio modes) Electromagnetic signals An electromagnetic signal radiates from buried conductive services as an electrical current flows through them.

  • Page 15: Locator Overview

    6 x LR6 (AA) alkaline batteries are used. Replace all batteries when indicated. f) Case Foot The case foot can be replaced if it is worn. Contact your agency or Leica Geosystems author- ised service workshop. DIGICAT 500i/550i, How to Use the Locator...
  • Page 16 DIGICAT 500i/550i, How to Use the Locator Display panel overview a) Signal Strength Indicator Indicates the response of the Locator to a signal (service). b) Mode Indicators Displays the selected mode: Power, Radio, 8 kHz, 33 kHz, Auto (as shown, from bottom to top).

  • Page 17: Locator Setup And Information

    Displays supplier/company name. Displays supplier/company telephone number. Displays the operator’s name. Displays the power mode regional setting. Refer to "Appendix B World Frequency Zones" for more information. Displays unit serial number. Displays software version DIGICAT 500i/550i, How to Use the Locator...
  • Page 18 Before use, verify the Locator is setup to be compatible with mains frequency supply in your country. Options are 50 or 60 Hz. Refer to "Appendix B World Frequency Zones" for more information. Contact your agency or Leica Geosystems authorised service workshop if your unit is incor- rectly configured for your region. Changing the battery 1.

  • Page 19: Hazard Zone

    • 8 kHz • 33 kHz • Auto mode (Power mode only) Hazard zone status Status indicator Description indicators Hazard zone is switched on. Hazard zone on and is alarming. Hazard zone is switched off. DIGICAT 500i/550i, How to Use the Locator...
  • Page 20 DIGICAT 500i/550i, How to Use the Locator Caution The absence of a positive indication does not guarantee the non-existence of a service. Services without a detectable signal may be present. The Locators can only locate non-metallic services such as plastic pipes, typically used by the water and gas utilities, with the use of appropriate accessories.

  • Page 21: How To Locate A Service

    The unit will then go into Power mode maximum sensitivity. Locating process The locating process is split into three steps: • Sweep Search • Pinpointing the service • Direction of the service DIGICAT 500i/550i, How to Use the Locator...
  • Page 22 DIGICAT 500i/550i, How to Use the Locator Sweep Search The unit will automatically select Power mode and maximum sensitivity. Auto mode combines the benefit of simultaneous detection in Power and Radio modes and helps to confirm the presence of services upon initial site occupation.
  • Page 23 • The signal strength indicator does not indicate the size, depth or type of a service. Peak hold When activated peak hold will show the highest peak reading obtained during the pinpoint process. The displayed reading can be adjusted between 0 to 5 seconds. DIGICAT 500i/550i, How to Use the Locator...
  • Page 24 DIGICAT 500i/550i, How to Use the Locator Detecting direction of 1. Position the Locator directly the service over the service. 2. Rotate the Locator on its axis. 3. The blade of the Locator will be in line with the service when the signal strength indicator is at its minimum.
  • Page 25 Transmitter. This signal is radiated from the centre of the service. This is even more important when the signal is produced by a Sonde, lying in a large diameter conduit! Precautions: Always compensate depth reading for service size. DIGICAT 500i/550i, How to Use the Locator...
  • Page 26 DIGICAT 500i/550i, How to Use the Locator Measuring Sonde depth 1. Switch on the sonde and set to (550i only) the required frequency. Refer to "7 How to Use the Sonde" for more information. 2. Select either 33 kHz or 8 kHz mode to suit the Sonde’s...
  • Page 27 Always compensate depth reading for service size. Depth code informa- Information code Description Information on tion instrument label The service is too shallow to register prop- metres ft-inch erly. metres ft-inch 0.3 m DIGICAT 500i/550i, How to Use the Locator...
  • Page 28 DIGICAT 500i/550i, How to Use the Locator Information code Description Information on instrument label The service is too deep. metres ft-inch metres ft-inch 3.0 m 10ft The signal received by the Locator is too small to register properly. The signal received by the Locator is too...
  • Page 29 Information code Description Information on instrument label Depth function not available. The Locator is set to the wrong mode for a depth reading to be taken. DIGICAT 500i/550i, How to Use the Locator...

  • Page 30: Wireless Data Communication, Where Applicable

    DIGICAT 500i/550i, How to Use the Locator Wireless Data Communication, where applicable Bluetooth Bluetooth connectivity is an optional extra available on the 500i and 550i Locators. Data can be wirelessly transferred from the Locator to a suitable data logging device, enabling the operator to capture information about the Locator’s status and the service depth.
  • Page 31 01 to 48 Signal strength: 01 to 48 M or I Units of measurements: M or I (Metres or Imperial) 0.30 to 3.00 or --- Depth value displayed depends on value for UM. DIGICAT 500i/550i, How to Use the Locator...

  • Page 32: How To Use The Transmitter

    DIGICAT 500i/550i, How to Use the Transmitter How to Use the Transmitter General information Tracing signal The Transmitter applies an electrical current signal onto a buried metallic service, which enables the service to be traced and identified by the Locator operating in the same mode.
  • Page 33 • Combined 8 and 33 kHz (Connection mode only) is useful in congested areas when either 8 or 33 kHz may provide a better result. The best results can be simply achieved by switching modes on the Locator. DIGICAT 500i/550i, How to Use the Transmitter...

  • Page 34: Transmitter Overview

    DIGICAT 500i/550i, How to Use the Transmitter Transmitter Overview Transmitter main parts a) Accessory Cover b) Battery Cover c) Power Control Switches the unit on or off. d) Mute Control Used to silence the Transmitter. e) Mode Display Indicates which mode is selected: Induction or Connection.
  • Page 35 1. Loosen the two screws of the battery cover and remove them together with the cover. 2. Replace all batteries with four new LR14 (C) batteries. Alkaline batteries should be used. DIGICAT 500i/550i, How to Use the Transmitter...

  • Page 36: How To Locate A Service Using The Transmitter

    DIGICAT 500i/550i, How to Use the Transmitter How to Locate a Service Using the Transmitter Start up test The following test sequence will take place every time the Transmitter is activated. On test Test pattern 8KHz 33KHz Audio output On throughout test sequence.
  • Page 37 • The signal will couple to adjacent services dependent on depth and direction. • Reducing the signal output can help to increase the battery life and the Transmitter is less likely to apply a signal to an adjacent service. DIGICAT 500i/550i, How to Use the Transmitter...
  • Page 38 DIGICAT 500i/550i, How to Use the Transmitter Using the Transmitter in Connection mode 1. Switch the Transmitter on and observe the battery level. Change batteries when indi- cated. 2. Plug the Transmitter’s cable set into the connection socket, the Transmitter will go into Connection mode as indicated on the mode display.
  • Page 39 • In dry conditions it may be necessary to add water around the earth point to get a good connection. • Examine connection points and remove contamination if a continuous audible output is not achieved. • An extension cable is available to extend the red or black cable sets. DIGICAT 500i/550i, How to Use the Transmitter...

  • Page 40: How To Use The Conductive Rod

    DIGICAT 500i/550i, How to Use the Conductive Rod How to Use the Conductive Rod General Information Description The Conductive Rod is a service tracer enabling small diameter non-conductive pipes or ducts to be traced. It can be used in Line mode or Sonde mode.

  • Page 41: How To Locate A Service Using The Conductive Rod

    • Ensure there are no services below the ground when using the earth pin. Use the Locator in advance. • At least half the Conductive Rod needs to be uncoiled when in use. DIGICAT 500i/550i, How to Use the Conductive Rod...
  • Page 42 DIGICAT 500i/550i, How to Use the Conductive Rod Using the Conductive 1. Insert the rod into the pipe, duct, conduit or drain until the desired length is in place. 2. Connect the cable set to the Transmitter socket and the rod socket in the middle of the Rod in Sonde mode frame.
  • Page 43 DIGICAT 500i/550i, How to Use the Conductive Rod...

  • Page 44: How To Use The Signal Clamp

    DIGICAT 500i/550i, How to Use the Signal Clamp How to Use the Signal Clamp General Information Description The Signal Clamp provides a safe technique of applying a signal to services such as telecom cables, etc. It is connected to the Transmitter and then clipped around the service. Supply is not interrupted by the applied signal.

  • Page 45: How To Locate A Service Using The Signal Clamp

    A hazardous signal may be present on the connection plug of the Signal Clamp when clipped over a live service. Precautions: The clamp should be connected to the Transmitter before clamping around a live service. DIGICAT 500i/550i, How to Use the Signal Clamp...
  • Page 46 DIGICAT 500i/550i, How to Use the Signal Clamp Danger A hazardous signal may be present on the service causing personal harm. Precautions: Do not use on electrical services which have impaired, or no insulation. If in doubt do not use.
  • Page 47 DIGICAT 500i/550i, How to Use the Signal Clamp...

  • Page 48: How To Use The Property Connection Set

    DIGICAT 500i/550i, How to Use the Property Connection Set How to Use the Property Connection Set General Information Description The Property Connection Set provides a safe technique of applying a traceable signal to live electricity cables. It is connected to the service via a mains plug outlet and provides a trace- able signal.

  • Page 49: How To Locate A Service Using The Property Connection Set

    4. Trace the length of the service using the Locator set to the same frequency. • The mains supply must be live and switched on for correct operation. • Works best with 33 kHz. DIGICAT 500i/550i, How to Use the Property Connection Set...
  • Page 50 DIGICAT 500i/550i, How to Use the Property Connection Set Danger A hazardous signal may be present on the connection plug of the Property Connection Set when connected to the mains supply. Precautions: The Property Connection Set should be connected to the Transmitter before connecting to the mains supply.
  • Page 51 DIGICAT 500i/550i, How to Use the Property Connection Set...

  • Page 52: How To Use The Sonde

    DIGICAT 500i/550i, How to Use the Sonde How to Use the Sonde General Information Description The Sonde is a dual frequency signal transmitter used to trace drains, sewers and other non conductive services. It can be attached to a range of equipment including drain rods, boring tools and inspection cameras.
  • Page 53 2. Hold Sonde upright. Confirm green LED is continuous. 3. Wait approximately 10 seconds for the green LED to start flashing. 4. With the green LED flashing, the Sonde is ready for use at 33 kHz. DIGICAT 500i/550i, How to Use the Sonde...
  • Page 54 DIGICAT 500i/550i, How to Use the Sonde Changing to 8 kHz mode: 1. Unscrew and remove end cap. Insert battery, positive end first. Refit end cap securely. 2. Hold Sonde upright. Confirm green light is continuous. 3. Rotate Sonde so the LED points down and wait approxi- mately 1 second.

  • Page 55: How To Locate A Service Using The Sonde

    2. Retrace your steps and position the locator directly over the peak signal. Move the locator left and right until the highest numeric reading is obtained. This reading will indicate the Sonde’s precise location. DIGICAT 500i/550i, How to Use the Sonde...
  • Page 56 DIGICAT 500i/550i, How to Use the Sonde 3. Depth indication (550i only) Depth indicationcan be used with a suitable depth locator. The locator must be posi- tioned directly over the Sonde and in line with it (rotate the locator on its axis to find the highest reading).
  • Page 57 DIGICAT 500i/550i, How to Use the Sonde...

  • Page 58: Care And Transport

    Always carry the product in its transport container and secure it. Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, transport container and cardboard box, or its equivalent, to protect against shock and vibration.

  • Page 59: Cleaning And Drying

    40°C / 104°F and clean them. Do not repack until everything is completely dry. Cables and plugs Keep plugs clean and dry. Blow away any dirt lodged in the plugs of the connecting cables. DIGICAT 500i/550i, Care and Transport...

  • Page 60: Safety Directions

    DIGICAT 500i/550i, Safety Directions Safety Directions General Introduction Description The following directions should enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these direc- tions and adhere to them.

  • Page 61: Limits Of Use

    Manufacturers of non The manufacturers of non Leica Geosystems accessories for the product are responsible for Leica Geosystems developing, implementing and communicating safety concepts for their products, and are...

  • Page 62: Hazards Of Use

    • To be familiar with local regulations relating to safety and accident prevention. • To inform Leica Geosystems immediately if the product and the application becomes unsafe. Warning The person responsible for the product must ensure that it is used in accordance with the instructions.
  • Page 63 Transmitter. This signal is radiated from the centre of the service. This is even more important when the signal is produced by a Sonde, lying in a large diameter conduit! Precautions: Always compensate depth reading for service size. DIGICAT 500i/550i, Safety Directions...
  • Page 64 Before use, verify the Locator is setup to be compatible with mains frequency supply in your country. Options are 50 or 60 Hz. Refer to "Appendix B World Frequency Zones" for more information. Contact your agency or Leica Geosystems authorised service workshop if your unit is incor- rectly configured for your region. Only with Transmitter:...
  • Page 65 Always prevent access to the product by unauthorised personnel. Product specific treatment and waste management information can be downloaded from the Leica Geosystems home page at http://www.leica-geosystems.com/treatment or received from your Leica Geosystems dealer. DIGICAT 500i/550i, Safety Directions...

  • Page 66: Electromagnetic Compatibility Emc

    Precautions: Make sure that the battery terminals do not come into contact with metallic objects. Warning Only Leica Geosystems authorised service workshops are entitled to repair these products. Electromagnetic Compatibility EMC Description The term Electromagnetic Compatibility is taken to mean the capability of the product to...
  • Page 67 Disturbances caused by electromagnetic radiation can result in erroneous measurements. Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that the product may be disturbed by very intense electromagnetic radiation, for example, near radio Transmit- ters, two-way radios or diesel generators.
  • Page 68 Precautions: Although the product meets in combination with radio or digital cellular phone devices recommended by Leica Geosystems the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equip- ment may be disturbed or that humans or animals may be affected.

  • Page 69: Fcc Statement, Applicable In U

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by Leica Geosystems for compliance could Warning void the user's authority to operate the equipment.
  • Page 70 DIGICAT 500i/550i, Safety Directions Labelling Locator Type: Art. No.: S. No.: Power: 9V + / 200mA max. Alkaline 6x LR6(AA) Leica Geosystems AG CH-9435 Heerbrugg Made in the UK This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 71 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DIGICAT 500i/550i, Safety Directions...

  • Page 72: Technical Data

    DIGICAT 500i/550i, Technical Data Technical Data 10.1 Locator i Series Technical Data Typical detection range Mode Distance along conductor Power mode length of conductor Radio mode length of conductor Conductive Rod mode length of unwound rod Operating depth range Mode...
  • Page 73 Power, Radio and Auto mode: continuous tone (different pitch for each tone). 8 kHz and 33 kHz mode: pulsed tone (different pitch for each tone). All five tones are different. • Pneumatic headphone sockets are integrated DIGICAT 500i/550i, Technical Data...
  • Page 74 DIGICAT 500i/550i, Technical Data Internal battery Type: 6 x LR6 (AA) alkaline Typical operating time: 40 hrs intermittent use at 20°C / 68°F; in 8 kHz mode or 33 kHz mode Instrument dimensions 85 mm/3.4 Inches 760 mm/30 Inches 250 mm/10 Inches...
  • Page 75 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the DIGICAT 500i/550i is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.

  • Page 76: Transmitter Technical Data

    DIGICAT 500i/550i, Technical Data 10.2 Transmitter Technical Data Typical detection range Mode Distance Induction mode 150 m / 490 ft Connection mode 250 m / 820 ft Operating transmission • 8.192 (8) kHz or frequencies • 32.768 (33) kHz • 10 segment LED bar graph Display panel •...
  • Page 77 With cover closed IP67 (IEC 60529) and secured Dust tight Waterproof to 1 m temporary immersion Humidity 95% RH non condensing The effects of condensation are to be effectively counteracted by periodically drying out the product. DIGICAT 500i/550i, Technical Data...
  • Page 78 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the DIGITEX is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.

  • Page 79: Conductive Rod Technical Data

    Reel length dependant • 8.192 (8) kHz or Operating transmission frequencies • 32.768 (33) kHz Instrument dimensions Ø 13 mm/0.512 Inches 490 mm/19.3 Inches 210 mm/8.3 Inches 440 mm/17.3 Inches Weight Instrument: 7.3 kg / 16.1 lbs DIGICAT 500i/550i, Technical Data...
  • Page 80 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the Conductive Rod is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.

  • Page 81: Sonde Technical Data

    Typical operating time: 40 hrs intermittent use at 20°C / 68°F; in 8 kHz mode or 33 kHz mode Instrument dimensions Ø38 mm/1.5 Inches 120 mm/4.7 Inches Weight Instrument: 0.18 kg / 0.4 lbs (including batteries) DIGICAT 500i/550i, Technical Data...
  • Page 82 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the DIGIMOUSE is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.

  • Page 83: Property Connection Set Technical Data

    Instrument: 0.15 kg / 0.3 lbs Environmental specifi- Type Description cations Temperature Operating -20°C to +50°C -4°F to +122°F Storage -40°C to +70°C -40°F to +158°F Protection against Water, Dust IP54 (IEC 60529) and Sand Dust-protected DIGICAT 500i/550i, Technical Data...
  • Page 84 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the Property Connection Set is in compli- ance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.

  • Page 85: Signal Clamp Technical Data

    Instrument: 0.354 kg / 0.76 lbs Environmental specifi- Type Description cations Temperature Operating -20°C to +50°C -4°F to +122°F Storage -40°C to +70°C -40°F to +158°F Protection against Water, Dust IP54 (IEC 60529) and Sand Dust-protected DIGICAT 500i/550i, Technical Data...
  • Page 86 • FCC Part 15 (applicable in US) regulations • Hereby, Leica Geosystems AG, declares that the Signal Clamp is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.leica-geosystems.com/ce.
  • Page 87 DIGICAT 500i/550i, Technical Data...

  • Page 88: International Limited Warranty

    This product is subject to the terms and conditions set out in the International Limited Warranty Warranty which you can download from the Leica Geosystems home page at http://www.leica-geosystems.com/internationalwarranty or collect from your Leica Geosys- tems distributor. The foregoing warranty is exclusive and is in lieu of all other warranties,...
  • Page 89 DIGICAT 500i/550i, International Limited Warranty...

  • Page 90: Appendix A Functional Checks

    DIGICAT 500i/550i, Functional Checks Appendix A Functional Checks Locator Functional Check Checking the function Before any tests can be carried out it is vital to check the status of the unit, its batteries and basic functionality. The following list is used to achieve this.
  • Page 91 3. Press and release the i Button to activate the depth measurement. 4. Record the depth. 5. If the depth reading deviates from the normal value or an error code is displayed, the Locator should be returned for service. DIGICAT 500i/550i, Functional Checks...
  • Page 92 DIGICAT 500i/550i, Functional Checks If any of these tests give no response or a significantly different response from normal, the Locator should be returned for service. Functional test check Functional Test Check List list Unit: Serial Number: Comments: Locator... Test...
  • Page 93 Return for repair Response width and peak value similar to test unit. 12. Depth Mode Return for repair Gives same result as test unit (550i only) (10% accuracy). 8 kHz and 33 kHZ Tested by: Date: DIGICAT 500i/550i, Functional Checks...

  • Page 94: Transmitter Functional Check

    DIGICAT 500i/550i, Functional Checks Transmitter Functional Check Checking the function The purpose of the following procedure is to verify the performance of the signal Trans- mitter. Before any tests can be carried out it is vital to check the status of the unit, its batteries and basic functionality.
  • Page 95 5 m/16.4 ft 5 m/16.4 ft 5. Output signal level check Press the output level control button, the indicated power should reduce to minimum and then increase with repeated presses until the maximum level is again reached. DIGICAT 500i/550i, Functional Checks...
  • Page 96 DIGICAT 500i/550i, Functional Checks 6. Connection mode check With the Transmitter operating in the 33 kHz Induction mode, plug in the transmitter's cable set. The pulsing audio tone should change and the connection/induction LED change to indi- cate that the output has automatically changed over to the connection mode.
  • Page 97 Return for repair All LEDs must illuminate and display test an audible output must be heard. 6. Batteries Replace Replace alkaline batteries if exhausted (no response) or if the battery indicator light is illuminated or flashing after display test. Replace all batteries ! DIGICAT 500i/550i, Functional Checks...
  • Page 98 DIGICAT 500i/550i, Functional Checks Functional Test Check List 7. Induction mode Return for repair/ Reduced or no output signal. Replace 8. Connection mode; Return for repair/ Faulty cable. no change in Replace audio indication 9. Connection mode; Return for repair/ No output signal.

  • Page 99: Conductive Rod Functional Check

    Part the black cable set in the middle, the audible output must be pulsed. If any of these tests give no response or a significantly different response from normal, the Conductive Rod should be returned for service. DIGICAT 500i/550i, Functional Checks...
  • Page 100 DIGICAT 500i/550i, Functional Checks Functional test check Functional Test Check List list Unit: Serial Number: Comments: Conductive Rod... Test Operative Fail analysis Notes 1. Sonde mode: Repair or replace Faulty cable. Transmitter audio cable set output does not go continuous 2.

  • Page 101: Sonde Functional Check

    1. Switch sonde on and activate 33kHz mode. 2. Set Locator to 33 kHz mode and aim at Sonde (see diagram). 3. At 2 m/6.56 ft the Locator must be at maximum. 4. Repeat this with Sonde and Locator in 8 kHz. DIGICAT 500i/550i, Functional Checks...
  • Page 102 DIGICAT 500i/550i, Functional Checks 2 m/6.56 ft 5 m/16.4 ft 5 m/16.4 ft If any of these tests give no response or a significantly different response from normal, the Sonde should be returned for service.
  • Page 103 Locator must provide maximum display at 2 metres. 5. 8 kHz mode Fail LED must be illuminated brightly and pulse slowly. Locator must provide maximum display at 2 metres. Tested by: Date: DIGICAT 500i/550i, Functional Checks...

  • Page 104: Appendix B World Frequency Zones

    DIGICAT 500i/550i, World Frequency Zones Appendix B World Frequency Zones South America North America Argentina 230 V / 50 Hz Canada 120 V / 60 Hz Bolivia 110 V / 50 Hz United States 120 V / 60 Hz Brazil...
  • Page 105 230 V / 50 Hz Poland 230 V / 50 Hz Portugal 230 V / 50 Hz Romania 230 V / 50 Hz Russia 230 V / 50 Hz Slovakia 230 V / 50 Hz DIGICAT 500i/550i, World Frequency Zones...
  • Page 106 DIGICAT 500i/550i, World Frequency Zones Africa Algeria 127-220 V / 50 Hz Niger 220 V / 50 Hz Angola 220 V / 50 Hz Nigeria 230 V / 50 Hz Benin 220 V / 50 Hz Rwanda 220 V / 50 Hz...
  • Page 107 110-220 V / 60 Hz Kuwait 240 V / 50 Hz Laos 220 V / 50 Hz Lebanon 110-220 V / 50 Hz Malaysia 240 V / 50 Hz Myanmar 240 V / 50 Hz DIGICAT 500i/550i, World Frequency Zones...

  • Page 108: Index

    DIGICAT 500i/550i, Index Index Signal Clamp Operating ............83 Conductive Rod Storage .............83 Functional Check ............ 97 Sonde Operating ............80 Locator Storage .............80 Functional Check ............ 88 Transmitter Operating ............75 Storage .............75 Operating depth range ..........70 Transmitter Functional Check ............92 Typical depth accuracy ..........70...
  • Page 109 DIGICAT 500i/550i, Index...
  • Page 110 International Standards of Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001). Ask your local Leica Geosystems dealer for more information about our TQM program.
