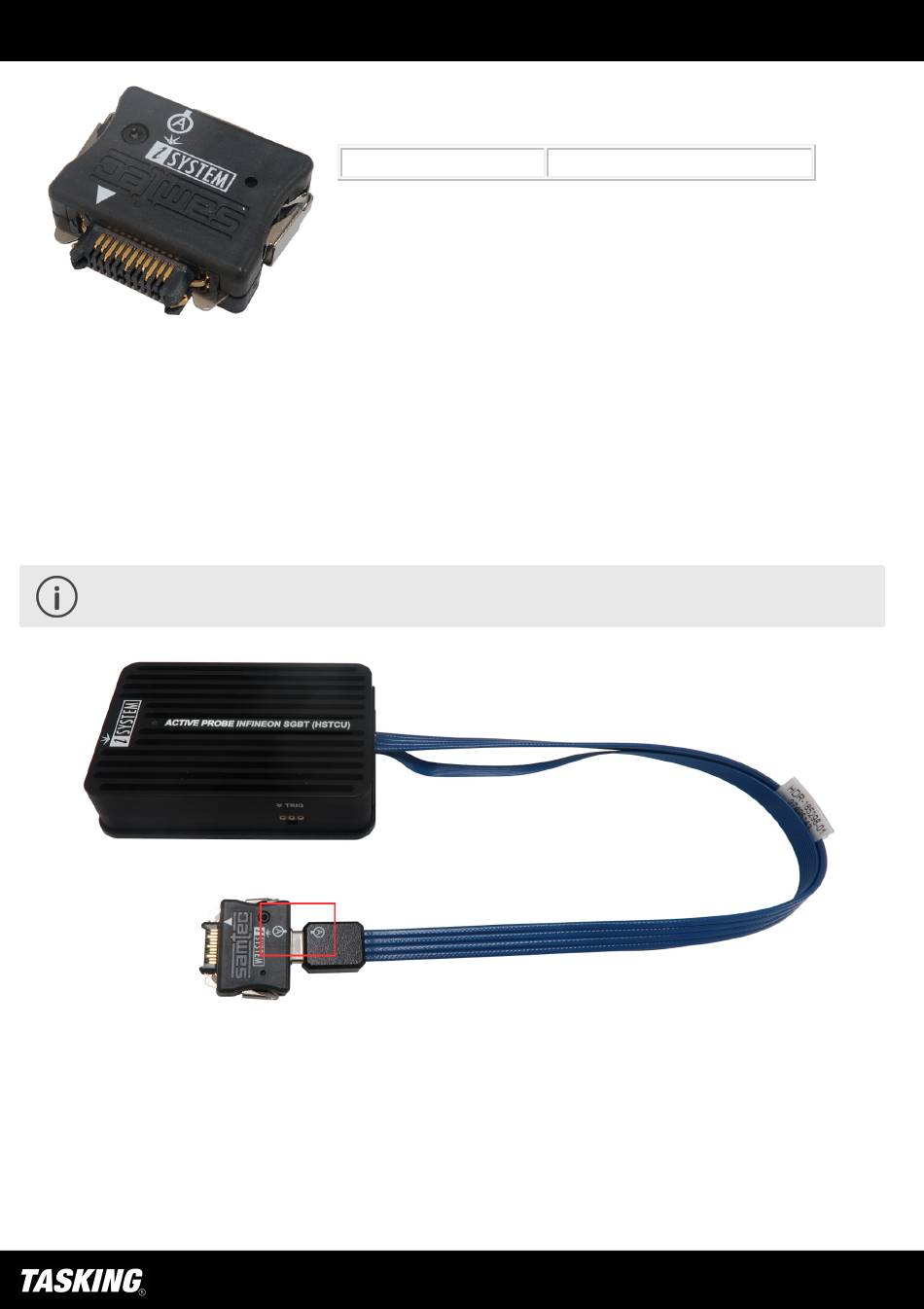

HSTCU (USB-C) to Samtec22 Converter
The converter is used to connect the Infineon SGBT (HSTCU) Active Probe with the USB-C con-
nector to a target featuring Samtec 22-pin ERF8 debug connector. The 22-pin converter must be
ordered separately.
Connecting USB-C converter to the Active Probe
Used physical USB-C type connector doesn't feature the USB interface as someone could presume
(there is no way to incorrectly insert it), but rather the Infineon AGBT (Aurora GigaBit Trace) inter-
face whose signals are connected to the connector in a way that USB-C connector orientation mat-
ters.
When attaching this converter to the Active Probe, make sure its marking A and marking
B is aligned and matches with the markings on the Active Probe connector.
Ordering code
IAHSTCU-SAM22
www.tasking.com
