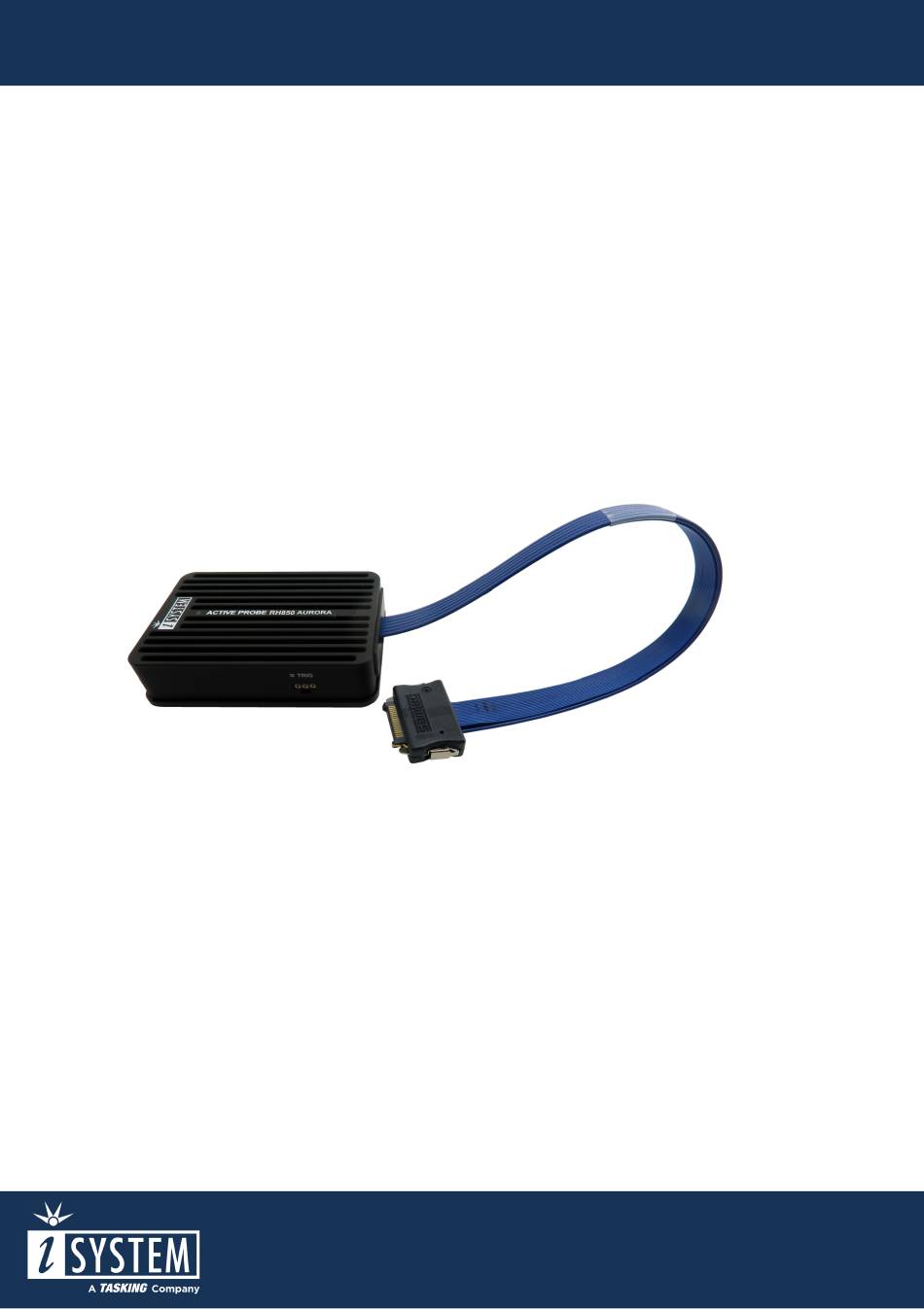

- Page 1 RH850 Aurora Active Probe User Manual V1.4, September 2023 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents RH850 Aurora Active Probe ....................... 4 Specifications ............................5 Operation ..............................6 mDIO Cable ............................................. 8 14-pin 2.54 mm LPD Adapter ..................................... 9 RH850 Aurora 34-pin to Aurora 46-pin Converter ........................... 10 Hardware Setup and Configuration ....................12 Accessories ............................. 13 User Notes .............................. -
Page 4: Rh850 Aurora Active Probe

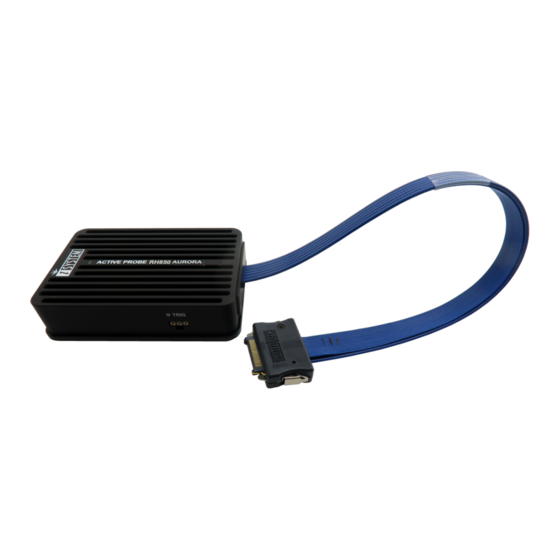

RH850 Aurora Active Probe RH850 Aurora Active Probe enables debugging, tracing and testing of Renesas RH850 microcontroller families. Besides the standard LPD debug interface it supports also a high-speed Aurora trace interface operating at its maximum frequency. Its small and compact hardware size allows for connecting to a target microcontroller in a confined space as far as 10 m away. -
Page 5: Specifications
Specifications GENERAL Supply voltage 9.0V DC via FNet cable Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 80 x 55 x 18 mm Weight 0.125 kg OPERATION Communication iSYSTEM proprietary FNet interface to BlueBox Debug signal valid input 3.3V (max. -
Page 6: Operation
Operation A – RH850 Aurora target pinout: Signal Signal Signal Description Signal Signal Signal Description Direction Direction AGBT TX0_P TX0_P Vref Reference Voltage AGBT TX0_N TX0_N LPDCLK Debug Clock Ground JTAG Reserved LPDI Debug Signal Reserved LPDO Debug Signal Ground nTRST Debug Signal Reserved... - Page 7 B – mDIO port marked as TRIG on the housing mDIO port provides two digital signals, which can interact with the embedded target. Each can be configured either for input or output operation. Number Name Pin1 IOØ Pin2 Pin3 mDIO port on the Active Probe mDIO port pinout C –...
-
Page 8: Mdio Cable
mDIO Cable Ordering code BB-AP-MDIO-20 mDIO Cable is used to connect the Active Probe mDIO port with the signals around the debugged microcontroller, which can then be either read or controlled by the debugger. For example, the debugger can periodically service an external watchdog through the mDIO output or just read and record an external signal through the mDIO input. -
Page 9: 14-Pin 2.54 Mm Lpd Adapter
14-pin 2.54 mm LPD Adapter Ordering code IASAM34RH850PIN14 Adapter must be ordered separately to connect to the target featuring 14-pin 2.54mm pitch LPD target debug connector. This adapter can be used in conjunction with the iC6000 DTM Aurora/LPD module (IC60024-1) and RH850 Aurora Active Prove (Ordering code IC57176). The following pinout is valid on the target side: Signal Signal... -
Page 10: Rh850 Aurora 34-Pin To Aurora 46-Pin Converter
RH850 Aurora 34-pin to Aurora 46-pin Converter Ordering code IASAM34RH850SAM46 If your RH850/U2B target features 46-pin target debug connector, use this converter to connect it the 34-pin Active Probe. It must be ordered separately. The converter is used only in conjunction with RH850 Aurora Active Probe. - Page 11 The following pinout is valid on the Active Probe side: Signal Signal Signal Signal Signal SignalDirection Direction Description Description AGBT TX0_P TX0_P Vref Reference Voltage AGBT TX0_N TX0_N LPDCLK Debug Clock Ground JTAG Reserved LPDI Debug Signal Reserved LPDO Debug Signal Ground nTRST Debug Signal...
-
Page 12: Hardware Setup And Configuration
Hardware Setup and Configuration For detailed visual presentation of the hardware setup and configuration, refer to Getting started tutorial. Use short link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. 3. -
Page 13: Accessories
Accessories Analog/Digital and Network Trace Ordering Code Description IC57031 IOM6 Hub (3 x FNet & FBridge) IC57040 IOM6 CAN/LIN IC57041 IOM6 ADIO IC57125-1 ARM HSSTP II Active Probe IC57163-1 Infineon DAP/DAPE II Active Probe IC57164 Infineon AGBT Active Probe IC57150 MPC5x/SPC5x Aurora Active Probe IC57166 Infineon SGBT (HSTCU) Active Probe... -
Page 14: User Notes
User Notes This page is intentionally left blank. - Page 15 This page is intentionally left blank.
- Page 16 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.isystem.com...
