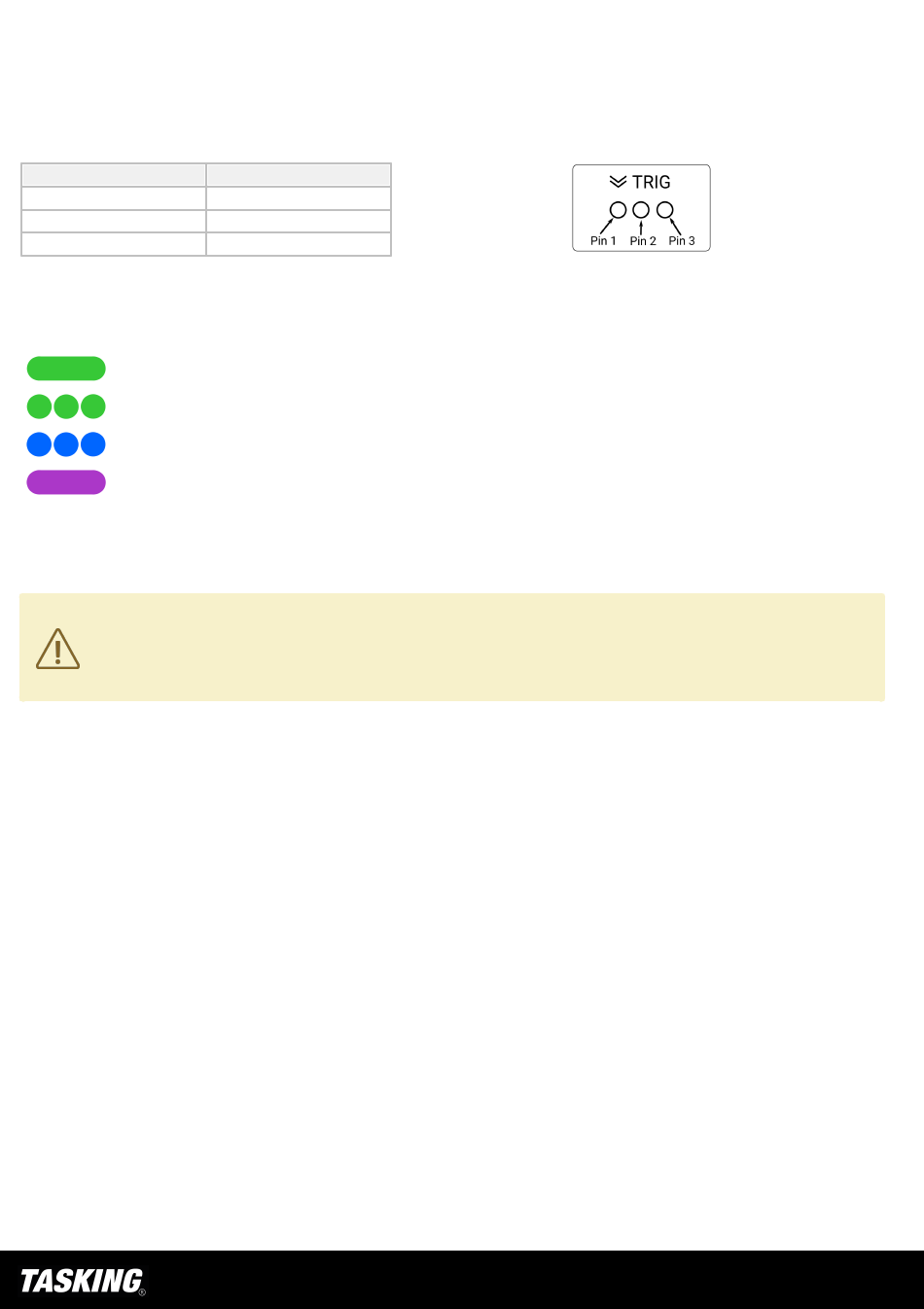

B – mDIO port marked as TRIG on the housing
mDIO port provides two digital signals, which can interact with the embedded target. Each can be
configured either for input or output operation.
Number
Pin1
Pin2
Pin3
mDIO port pinout
C – The indicator light provides the status of the Active Probe as follows:
Permanently green – Powered on and ready to use.
Blinking green – Establishing connection with the BlueBox.
Blinking blue – Reprogramming SPLASH.
Permanently magenta – Golden image loaded and ready to use.
D – FNet connector, that connects the Active Probe to the iC7max or iC5700. The FNet cable is de-
livered with the Active Probe.
When powering on the system, switch the BlueBox on before powering on the target.
When powering down the system, power off the target before powering off the BlueBox!
Use only original accessories for powering and connecting with the BlueBox. Consult
with technical support before attempting to use any other accessory.
Name
IOØ
IO1
GND
mDIO port on the Active Probe
