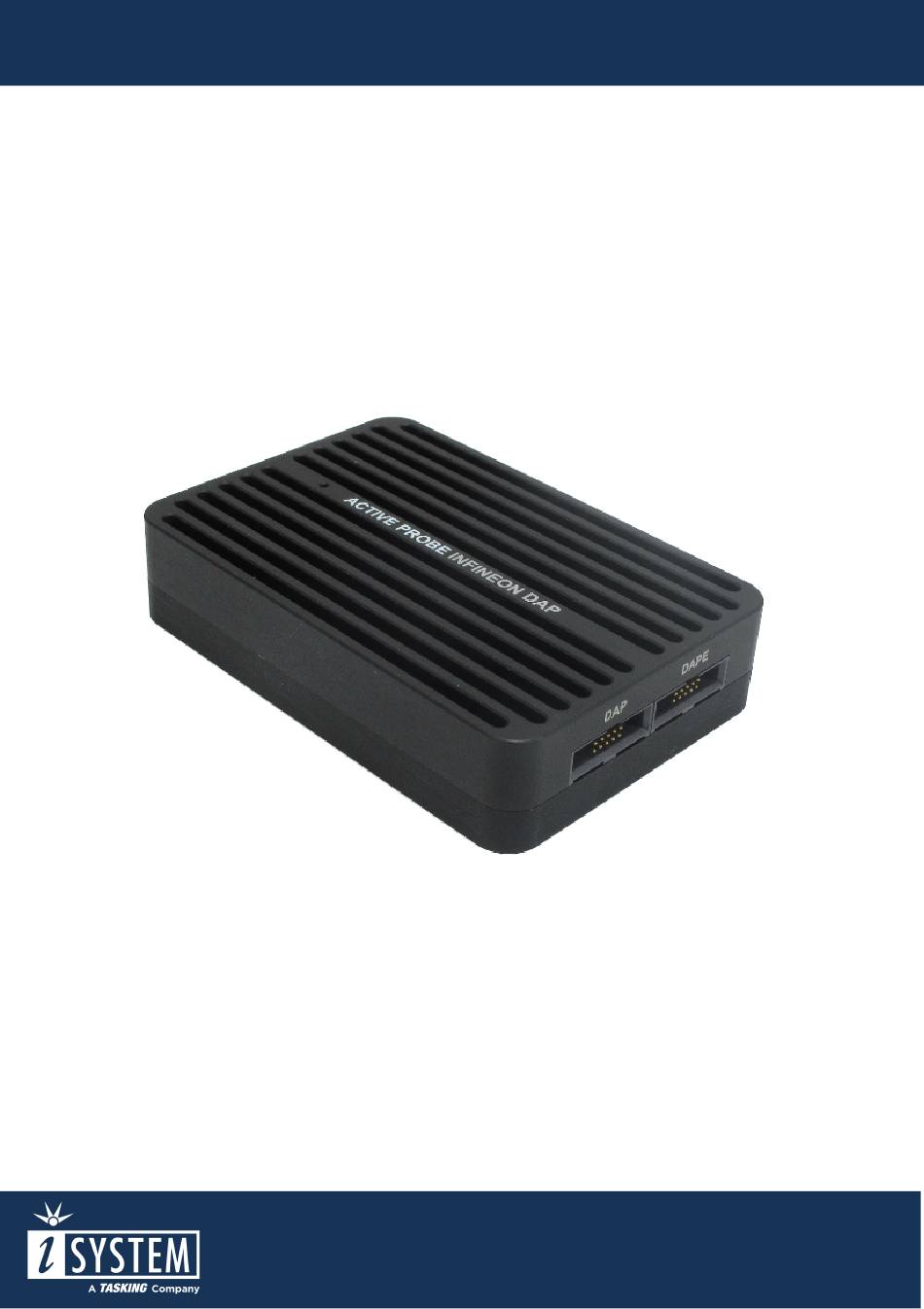

- Page 1 Infineon DAP/DAPE Active Probe User Manual V3.4, June 2023 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents Package content ..........................4 Specifications ............................5 Operation ............................... 6 Recommended Target Debug Connectors and Position ..............8 ECU14 DAP 10-pin 1.27mm Converter ....................9 MEDC17 DAP 10-pin 1.27mm Converter ..................10 10-pin DAP2 to 22-pin ERF8 DAP2 Converter ................11 DAP 10-pin 1.27 to HSTCU (USB-C) Converter ................ -
Page 4: Package Content

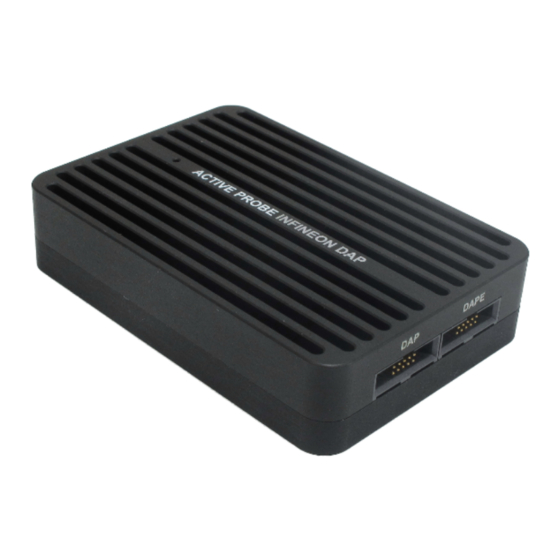

Package content Infineon DAP/DAPE Active Probe enables debugging, tracing and testing of Infineon’s AURIX™ microcontroller family. It supports DAP and DAPE debug interface operating at their maximum frequency. Its small and compact hardware size allows for connecting to a target microcontroller in a confined space as far as 10 m away. -
Page 5: Specifications
Specifications GENERAL Supply voltage 9.0V DC via FNet cable Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 80 x 55 x 18 mm Weight 0.125 kg OPERATION Communication iSYSTEM proprietary FNet interface to BlueBox Debug signal valid 3.3V (max. -
Page 6: Operation
Operation A – 10-pin DAP connector, with the following pinout: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Reference Voltage Vref DAP1 DAP Data Ground DAP0 DAP Clock Ground DAP2 Optional 2nd Data Pin nTRST/DAPE Not Connected Optional 3rd Data Pin Ground nRESET Reset... - Page 7 Signal direction definition: O – Output from the Active Probe to the target microcontroller I – Input to the Active Probe from the target microcontroller C – FNet Micro connector, that connects the Active Probe to the iC5700 BlueBox. The FNet Micro cable is delivered with the Active Probe.
-
Page 8: Recommended Target Debug Connectors And Position
Recommended Target Debug Connectors and Position The target debug connector is a 10-pin, 1.27mm, double-row connector (e.g. Samtec FTSH-105-01-L- DV,Samtec FTSH-105-01-L-DV-K with Keying Shroud). 1. Use the target debug connector(s) with the Keying Shroud option since incorrect connection can cause damage to the hardware. 2. -
Page 9: Ecu14 Dap 10-Pin 1.27Mm Converter
ECU14 DAP 10-pin 1.27mm Converter Ordering code IADAP10ECU14 The ECU14 connector and the pinout has been defined by Bosch. The ECU14 DAP 10-pin converter is connecting at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a pinout converter is available for TriCore embedded targets featuring the ECU14 10-pin 1.27mm target debug connector. -
Page 10: Medc17 Dap 10-Pin 1.27Mm Converter
MEDC17 DAP 10-pin 1.27mm Converter Ordering code IADAP10MEDC17 The MEDC17 converter and the pinout has been defined by Bosch. Converter is connected at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a pinout converter and is available for TriCore embedded targets featuring the MEDC17 10-pin 1.27mm target debug connector. -
Page 11: 10-Pin Dap2 To 22-Pin Erf8 Dap2 Converter
10-pin DAP2 to 22-pin ERF8 DAP2 Converter Ordering code IA10PINDAP22PINSAM A converter connecting at the end of the 10-pin 1.27 mm DAP debug cable is available for Infineon 22-pin ERF8 Aurix pinout. This converter must be ordered separately. The following pinout is valid on the target side: Signal Signal Description Signal... -
Page 12: Dap 10-Pin 1.27 To Hstcu (Usb-C) Converter
DAP 10-pin 1.27 to HSTCU (USB-C) Converter Ordering code IADAP10-HSTCU This converter is used to connect via 10-pin 1.27mm Infineon DAP2 Wide Debug Adapter (Ordering code: IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) to the USB-C target debug connector. The converter must be ordered separately. When attaching this converter to the Active Probe, make sure its marking A and marking B is aligned and matches with the markings on the Active Probe connector. - Page 13 The following pinout is valid on the target side: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Ground Not Connected Not Connected Not Connected Not Connected Not Connected Not Connected Not Connected Target Reset Pin nRESET DAP1 DAP Data Optional 2nd DAP data DAP2 nTRST*...
-
Page 14: Hardware Setup And Configuration
Hardware Setup and Configuration For detailed visual presentation of the hardware setup and configuration, refer to Getting started tutorial. Use short link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. 3. -
Page 15: Accessories
Accessories Analog/Digital and Network Trace Ordering Code Description IC57031 IOM6 Hub (3 x FNet & FBridge) IC57040 IOM6 CAN/LIN IC57041 IOM6 ADIO IC57125-1 ARM HSSTP II Active Probe IC57163-1 Infineon DAP/DAPE II Active Probe IC57164 Infineon AGBT Active Probe IC57150 MPC5x/SPC5x Aurora Active Probe IC57166 Infineon SGBT (HSTCU) Active Probe... - Page 16 Visit our website for: Support - isystem.com/support · Tutorials - isystem.com/getting-started · Knowledge Base - kb.isystem.com · www.isystem.com...
