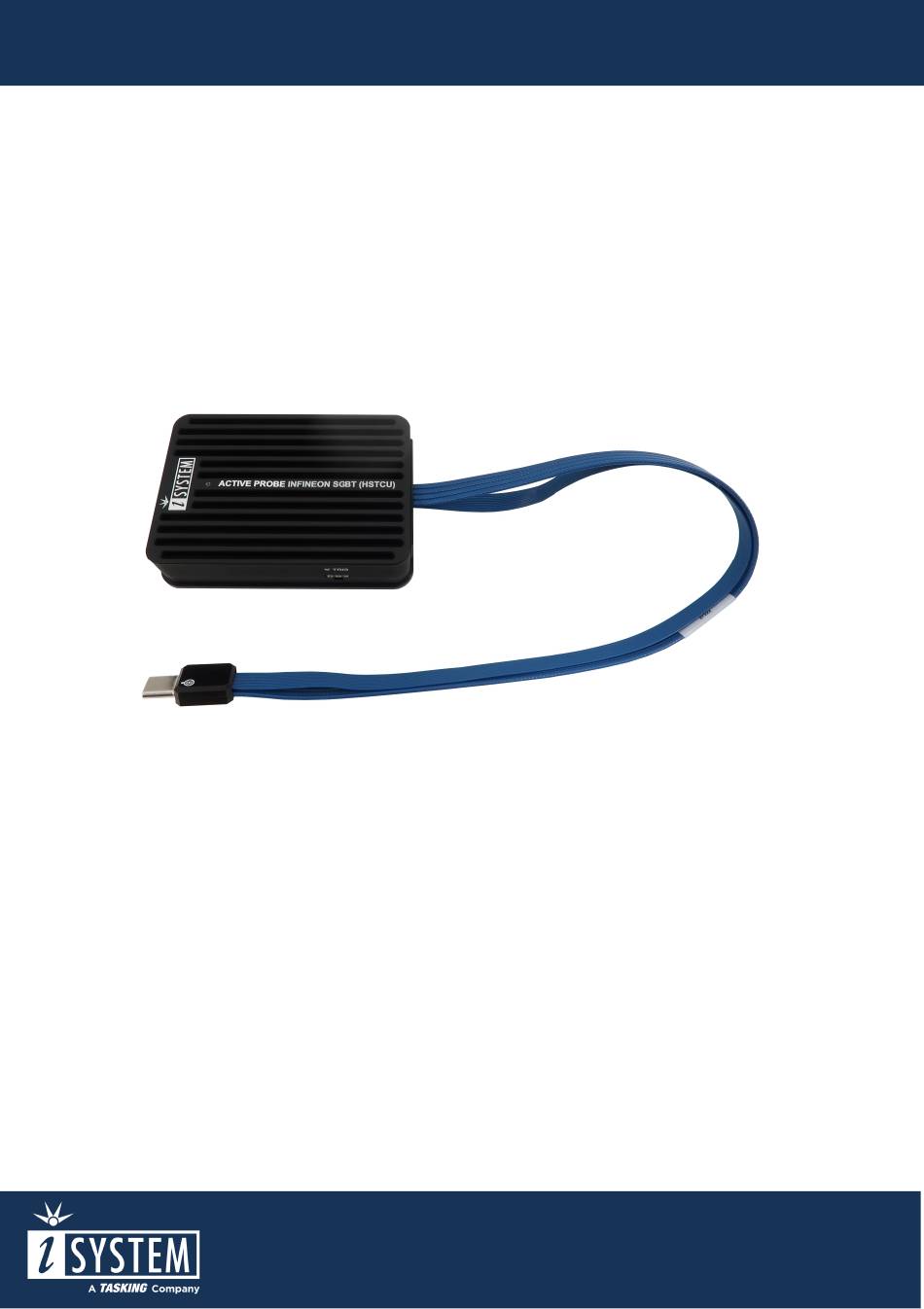

- Page 1 Infineon SGBT (HSTCU) Active Probe User Manual V2.4, June 2023 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents Package content ..........................4 Specifications ............................5 Operation ............................... 6 mDIO Cable ..............................8 HSTCU (USB-C) to Samtec22 Converter ....................9 HSTCU (USB-C) to DAP10 1.27 Converter ..................11 Hardware Setup and Configuration ..................13 Accessories ............................14 User Notes ............................15... -
Page 4: Package Content
Package content Infineon SGBT (HSTCU) Active Probe enables debugging, tracing and testing of all Infineon AURIXT™ TC2xx, TC3xx (2nd generation), TC4xx (3rd generation) microcontrollers. It supports the DAP and Aurora GigaBit Trace (AGBT/SGBT) interface via USB-C connector. Its small and compact hardware size allows for connecting to a target microcontroller in a confined space as far as 10 m away. -
Page 5: Specifications
Specifications GENERAL Supply voltage 9.0V DC via FNet cable Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 80 x 55 x 18 mm Weight 0.125 kg OPERATION Communication iSYSTEM proprietary FNet interface to BlueBox Debug signal valid input 5.0V (max. -
Page 6: Operation
Operation A – USB-C connector, with the following pinout: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Ground Not Connected AGBT TX0_P TX0+ CLK+ AGBT Clock AGBT TX0_N TX0- CLK- AGBT Clock Not Connected Not Connected Target Reset Pin nRESET DAP1 DAP Data... - Page 7 B – mDIO port marked as TRIG on the housing mDIO port provides two digital signals, which can interact with the embedded target. Each can be configured either for input or output operation. Number Name Pin1 IOØ Pin2 Pin3 mDIO port on the Active Probe mDIO port pinout C –...
-
Page 8: Mdio Cable
mDIO Cable Ordering code BB-AP-MDIO-20 mDIO Cable is used to connect the Active Probe mDIO port with the signals around the debugged microcontroller, which can then be either read or controlled by the debugger. For example, the debugger can periodically service an external watchdog through the mDIO output or just read and record an external signal through the mDIO input. -
Page 9: Hstcu (Usb-C) To Samtec22 Converter
HSTCU (USB-C) to Samtec22 Converter Ordering code IAHSTCU-SAM22 The converter is used to connect the Infineon SGBT (HSTCU) Active Probe with the USB-C connector to a target featuring Samtec 22-pin ERF8 debug connector. The 22-pin converter must be ordered separately. Connecting USB-C converter to the Active Probe Used physical USB-C type connector doesn’t feature the USB interface as someone could presume (there is no way to incorrectly insert it), but rather the Infineon AGBT (Aurora GigaBit Trace) interface... - Page 10 The following pinout is valid on the converter side: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Ground Not Connected AGBT TX0_P TX0+ CLK+ AGBT Clock AGBT TX0_N TX0- CLK- AGBT Clock Not Connected Not Connected Target Reset Pin nRESET DAP1 DAP Data...
-
Page 11: Hstcu (Usb-C) To Dap10 1.27 Converter
HSTCU (USB-C) to DAP10 1.27 Converter Ordering code IAHSTCU-DAP10 This converter is used to connect Infineon SGBT (HSTCU) Active Probe (Ordering code: IC57166) to the target via DAP connector. It must be ordered separately. When attaching this converter to the Active Probe, make sure its marking A and marking B is aligned and matches with the markings on the Active Probe connector. - Page 12 The following pinout is valid on the target side: Signal Signal Description Signal Signal Signal Description Signal Direction Direction Reference Voltage Vref DAP1 DAP Data pin Ground DAP0 DAP clock Ground DAP2 Optional 2nd DAP Data pin Not Connected DAP3 Optional 3rd DAP Data pin Ground nRESET...
-
Page 13: Hardware Setup And Configuration
Hardware Setup and Configuration For detailed visual presentation of the hardware setup and configuration, refer to Getting started tutorial. Use short link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. 3. -
Page 14: Accessories
Accessories Infineon USC-B Active Probe Accessories Description Ordering Code USB-C to Samtec 22-pin TriCore Adapter IAHSTCU-SAM22 1.0m FNet Cable BB-FNET-100 3.0m FNet Cable BB-FNET-300 5.0m FNet Cable BB-FNET-500 mDIO Cable BB-AP-MDIO-20 The functionality can be extended through the use of various modules from IOM6 product line which enable capabilities from parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. -
Page 15: User Notes
User Notes This page is intentionally left blank. - Page 16 Visit our website for: Support - isystem.com/support · Tutorials - isystem.com/getting-started · Knowledge Base - kb.isystem.com · www.isystem.com...
