- Page 1 INFINEON SGBT (HSTCU) ACTIVE PROBE HARDWARE USER MANUAL V2.5, March 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Package content ....................4 Specifications ....................5 Operation ......................6 mDIO Cable ......................8 HSTCU (USB-C) to Samtec22 Converter ..............9 HSTCU (USB-C) to DAP10 1.27 Converter ............. 11 Hardware Setup and Configuration .............. 13 Accessories ....................14 User Notes ...................... 15 www.tasking.com... -
Page 4: Package Content

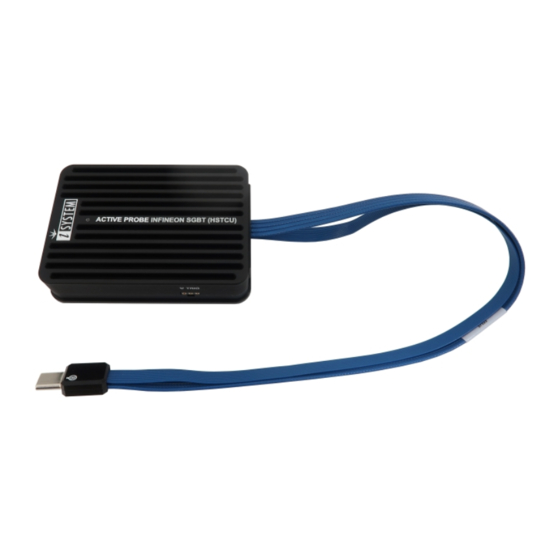

Package content The Infineon SGBT (HSTCU) Active Probe kit is delivered with the following components: Infineon SGBT (HSTCU) 1m FNet Cable Active Probe Ordering code: Ordering code: IC57166 BB-FNET-100 www.tasking.com... -
Page 5: Specifications
Maximum AGBT bitrate 5Gbps AGBT clock source op- Active Probe tions PROTECTION Debug signals 33 Ohm series termination/protection resistors, ESD protection devices DAP1-3 and DAPE1-3 10k Ohm pull-down DAP_RESET 1k Ohm pull-up, 33 series termination/protection resistor VREF 1k Ohm input impedance www.tasking.com... -
Page 6: Operation
Not Connected Not Connected Ground Ground (HSTCU) USB-C pinout Blue colored signals are trace signals. Signal direction definition: O – Output from the Active Probe to the target microcontroller I – Input to the Active Probe from the target microcontroller www.tasking.com... - Page 7 When powering on the system, switch the BlueBox on before powering on the target. When powering down the system, power off the target before powering off the BlueBox! Use only original accessories for powering and connecting with the BlueBox. Consult with technical support before attempting to use any other accessory. www.tasking.com...
-
Page 8: Mdio Cable
It must be ordered separately. Length of the cable is 20 cm. The following pinout is valid on the Active Probe side: Number Name Color Pin1 IOØ White Pin2 Brown Pin3 Black mDIO Cable pinout www.tasking.com... -
Page 9: Hstcu (Usb-C) To Samtec22 Converter
HSTCU (USB-C) to Samtec22 Converter Ordering code IAHSTCU-SAM22 The converter is used to connect the Infineon SGBT (HSTCU) Active Probe with the USB-C con- nector to a target featuring Samtec 22-pin ERF8 debug connector. The 22-pin converter must be ordered separately. - Page 10 Not Connected nRESET Reset Revision A2: Samtec 22-pin ERF8 pinout Blue colored signals are trace signals. *Current TriCore devices feature only one AGBT line while the Active Probe hardware is ready for fu- ture devices with more AGBT lines. www.tasking.com...
-
Page 11: Hstcu (Usb-C) To Dap10 1.27 Converter
Ordering code IAHSTCU-DAP10 This converter is used to connect Infineon SGBT (HSTCU) Active Probe (Ordering code: IC57166) to the target via DAP connector. It must be ordered separately. When attaching this converter to the Active Probe, make sure its marking A and marking B is aligned and matches with the markings on the Active Probe connector. - Page 12 Optional 3rd DAP Data pin Ground nRESET Reset 10-pin Infineon DAP pinout Signal Direction is described from the BlueBox perspective. When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. www.tasking.com...
-
Page 13: Hardware Setup And Configuration
7. Install winIDEA and create a new workspace. 8. Configure Debug channel modes via Hardware / CPU Options / SoC. For troubleshooting refer to Knowledge Base - use the link kb.isystem.com. More general settings are described in winIDEA Help. www.tasking.com... -
Page 14: Accessories
Accessories Infineon SGBT (HSTCU) Active Probe Accessories Description Ordering Code USB-C to Samtec 22-pin TriCore Adapter IAHSTCU-SAM22 1.0m FNet Cable BB-FNET-100 3.0m FNet Cable BB-FNET-300 5.0m FNet Cable BB-FNET-500 mDIO Cable BB-AP-MDIO-20 The functionality can be extended through the use of various modules from an ADIO & CAN/LIN- product line which enable capabilities from parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. -
Page 15: User Notes
User Notes This page is intentionally left blank. www.tasking.com... - Page 16 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.tasking.com www.tasking.com...
