- Page 1 RH850 AURORA ACTIVE PROBE HARDWARE USER MANUAL V1.4, March 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Specifications ....................... 5 Operation ......................6 mDIO Cable ..............................8 14-pin 2.54 mm LPD Adapter ........................9 RH850 Aurora 34-pin to Aurora 46-pin Converter ..................10 Hardware Setup and Configuration ................. 12 Accessories ......................13 User Notes ......................14 www.tasking.com... -
Page 4: Introduction

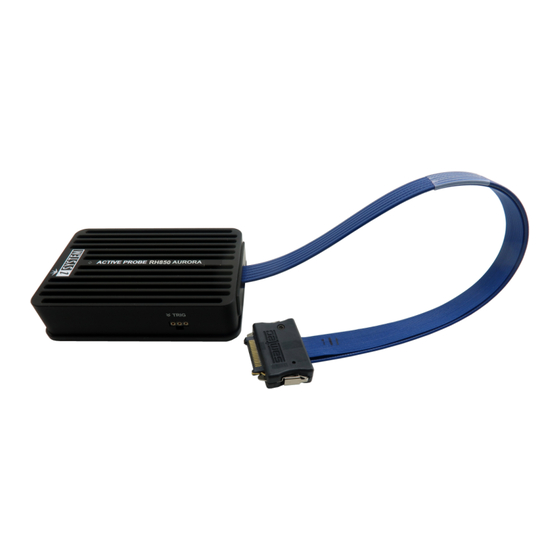

Introduction The RH850 Aurora Active Probe is delivered with the following components: RH850 Aurora 1m FNet Cable Active Probe Ordering code: Ordering code: IC57176 BB-FNET-100 www.tasking.com... -
Page 5: Specifications
Max. 1.5W (dependent on operation mode) Number of supported Up to 4 AGBT lanes Maximum AGBT bitrate 5Gbps AGBT clock source op- Active Probe tions PROTECTION 33 Ohm series termination/protection resistors, ESD protection Debug signals devices VREF 1k Ohm input impedance www.tasking.com... -
Page 6: Operation
Operation A – RH850 Aurora target pinout: Signal Dir- Signal Dir- Signal Description Signal Signal Signal Description ection ection AGBT TX0_P TX0_P Vref Reference Voltage AGBT TX0_N TX0_N LPDCLK Debug Clock Ground JTAG Reserved LPDI Debug Signal Reserved LPDO Debug Signal... - Page 7 When powering on the system, switch the BlueBox on before powering on the target. When powering down the system, power off the target before powering off the BlueBox! Use only original accessories for powering and connecting with the BlueBox. Consult with technical support before attempting to use any other accessory. www.tasking.com...
-
Page 8: Mdio Cable
It must be ordered separately. Length of the cable is 20 cm. The following pinout is valid on the Active Probe side: Number Name Color Pin1 IOØ White Pin2 Brown Pin3 Black mDIO Cable pinout www.tasking.com... -
Page 9: 14-Pin 2.54 Mm Lpd Adapter
Adapter must be ordered separately to connect to the target featuring 14-pin 2.54mm pitch LPD target debug connector. This adapter can be used in conjunction with the iC6000 DTM Aurora/LPD module (IC60024-1) and RH850 Aurora Active Prove (Ordering code IC57176). The following pinout is valid on the target side:... -
Page 10: Rh850 Aurora 34-Pin To Aurora 46-Pin Converter
Ordering code IASAM34RH850SAM46 If your RH850/U2B target features 46-pin target debug connector. It must be ordered separately. The converter is used only in conjunction with RH850 Aurora Active Probe. The following pinout is valid on the Active Probe side: Signal Direc-... - Page 11 Not Connected JTAG Not Connected LPDI Debug Signal Ground Ground Not Connected LPDO Debug Signal Not Connected LPDCLKOUT Debug Clock 46-pin RH850 Aurora pinout nAURORESET can be connected to nRESET via J1 Signal Direction is described from the BlueBox perspective. www.tasking.com...
-
Page 12: Hardware Setup And Configuration
6. Power ON the hardware in the following order: a. BlueBox b. Target 7. Install winIDEA and create a new workspace. 8. Configure Debug channel modes via Hardware / CPU Options / SoC. For troubleshooting refer to Knowledge Base - use the link kb.isystem.com. www.tasking.com... -
Page 13: Accessories
BB-FNET-100 1.0m FNet Cable BB-FNET-300 3.0m FNet Cable BB-FNET-500 5.0m FNet Cable IASAM34MPCPIN14 14-pin 2.54 mm JTAG Adapter BB-AP-MDIO-20 mDIO Cable Please refer to the iC5700 BlueBox for all current iC5700 Accessories. More information about our products via sales@tasking.com. www.tasking.com... -
Page 14: User Notes
User Notes This page is intentionally left blank. www.tasking.com... - Page 15 This page is intentionally left blank. www.tasking.com...
- Page 16 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.tasking.com www.tasking.com...
