- Page 1 iC5700 CI BlueBox Hardware User Manual V1.5, November 2023 isystem.com/start...
- Page 2 General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.
-
Page 3: Table Of Contents
Contents Package content ..........................4 Specifications ............................5 Device description ..........................6 Hardware Setup and Configuration ..................9 Accessories ............................10 Declarations ............................11... -
Page 4: Package Content
Package content iC5700 CI BlueBox On-Chip Analyzer is a hardware platform which allows hardware debugging and testing a wide range of embedded microcontroller platforms that are based on a variety of processor architectures and is implemented into Continuous Integration (CI) infrastructures. Functionality can be further extended with the addition of our Active Probes. -
Page 5: Specifications
Specifications GENERAL Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 155 x 155 x 65 mm Weight approx. 800g OPERATION Communication inter- USB 2.0, USB 3.0, 10/100 Ethernet faces to PC Supply voltage 10V to 24V DC Power consumption... -
Page 6: Device Description

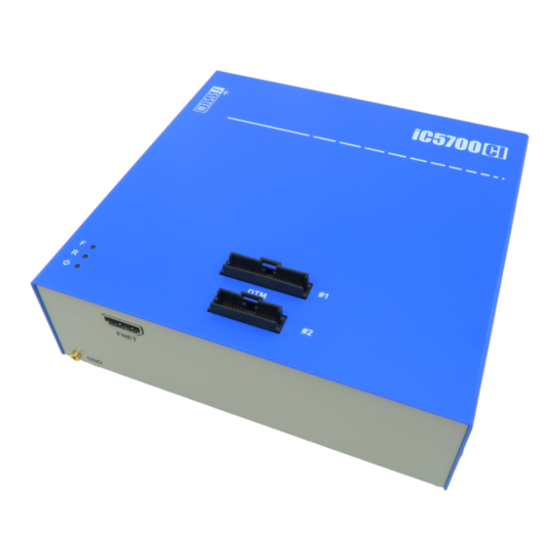

Device description... - Page 7 A – Two connectors, marked #1 and #2. These connectors are the interface to the target micro- controller. Depending on the target microcontroller debug features, the supplied ribbon-cables will need to be connected to either connector #1 only or connectors #1 and #2. B –...
- Page 8 When powering on the system, switch the BlueBox unit on before powering on the Tar- get. When powering down the system, power off the Target before powering off the BlueBox unit! FBridge port is not Ethernet port! Use only original accessories for powering and connecting with the BlueBox unit. Con- sult with Technical support before attempting to use any other accessory.
-
Page 9: Hardware Setup And Configuration
Hardware Setup and Configuration For detailed visual presentation of the hardware setup and configuration, refer to the Getting started tutorial - use the link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. 3. -
Page 10: Accessories
Accessories You can extend the functionality of your BlueBox with: o Active Probes - Enable higher debug and trace performance, compact size, positioned as far as 10 m away from the BlueBox. o Add-On modules - Enable parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. -
Page 11: Declarations
Declarations EU Declaration of Conformity (DoC) iSYSTEM AG für Informatiksysteme Carl-Zeiss-Str. 1, 85247 Schwabhausen Germany declare that the DoC is issued under our sole responsibility and belongs to the following product: BlueBox debugger and analyzer solution Type: iC3000, iC5000, iC5500, iC5700, iC6000, iTAG.2K Identification allowing traceability: Object of the declaration is identified by a product type and unique serial number for each indi- vidual device. - Page 12 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.isystem.com...
