Summary of Contents for TASKING iC5700 BlueBox
- Page 1 BlueBox HARDWARE USER MANUAL V2.6, March 2024 www.tasking.com...
- Page 2 Use included power cord and power supply The enclosed power supply has been approved for use by TASKING. Please contact TASKING if you need to consider an alternative power.
-
Page 3: Table Of Contents
Contents Package content ....................4 Specifications ....................5 Device description .................... 6 Hardware Setup and Configuration ..............9 Accessories ....................10 Declarations ....................12 www.tasking.com... -
Page 4: Package Content

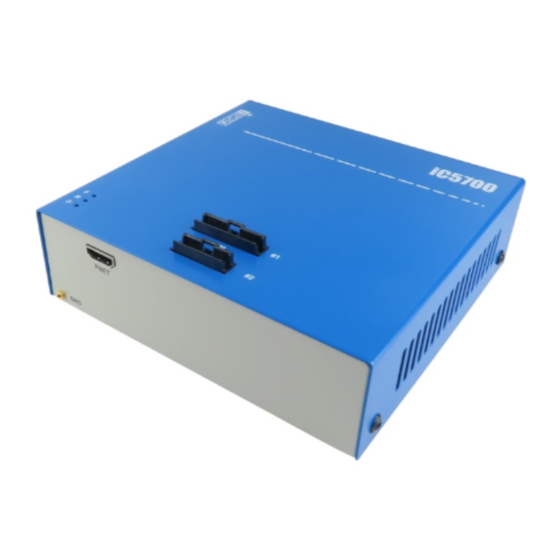

Package content iC5700 BlueBox is a hardware platform designed for debugging and testing a wide range of em- bedded microcontroller platforms that are based on a variety of processor architectures. Function- ality can be further extended with the addition of our ADIO & CAN/LIN Accessories, enabling the synchronous capture of analog and digital signals in parallel to trace information. -
Page 5: Specifications
TMS and TDI debug 10 kOhm pull-up resistor signals 1k Ohm pull-up resistor, buffer-driven to prevent current flow into an un- RESET powered iC5700 from a powered target board TAR_VREF (target refer- 100 kOhm input impedance ence voltage) pin www.tasking.com... -
Page 6: Device Description
Device description iC5700 iC5700 with Hub (optional) www.tasking.com... - Page 7 Contact Plug (Banana Plug) if building a longer or a replacement cable on your own. D – The FNet Port provides an interface for the TASKING’s range of ADIO & CAN/LIN Accessories. FNet Port is not compatible with HDMI or any HDMI accessories. Connecting the hard- ware to the HDMI devices will damage the hardware and will render the hardware war- ranty void.
- Page 8 FBridge port run/stop control of two iC5700 can be synchronized. 1m long FBridge (Ethernet alike) cable comes along the Hub and connects to the FBridge port on each iC5700. If you ordered the Hub to extend the operation, please refer to the Hub installation guide that came with your Hub package. www.tasking.com...
-
Page 9: Hardware Setup And Configuration
5. Connect the ribbon cable to the BlueBox connector(s). 6. Connect the Debug Adapter to the Target. To disconnect squeeze the two metal latches on the ribbon cables. 7. Power on procedure: · BlueBox · Target 8. Install winIDEA and create a new workspace. www.tasking.com... -
Page 10: Accessories
Active Probes - Enable higher debug and trace performance, compact size, positioned as far as 10 m away from the BlueBox. o Add-On modules - Enable parallel debugging of multiple targets, monitoring of network traffic and monitoring and manipulation of analog and digital signals. www.tasking.com... - Page 11 More information about our products via sales@tasking.com. www.tasking.com...
-
Page 12: Declarations
Declarations www.tasking.com... - Page 13 Visit our website for: · Support - isystem.com/support · Tutorials - isystem.com/start · Knowledge Base - kb.isystem.com www.tasking.com www.tasking.com...
