Infineon DAP/DAPE II Active Probe Hardware User Manual V1.1, September 2023 isystem.com/start...
Page 2
General safety instructions Please read the following safety precautions carefully before putting this device to use to avoid any personal injuries, damage to the instrument, or to the target system. Use this instrument only for its intended purpose as specified by this manual to prevent potential hazards. Use included power cord and power supply The enclosed power supply has been approved for use by iSYSTEM.

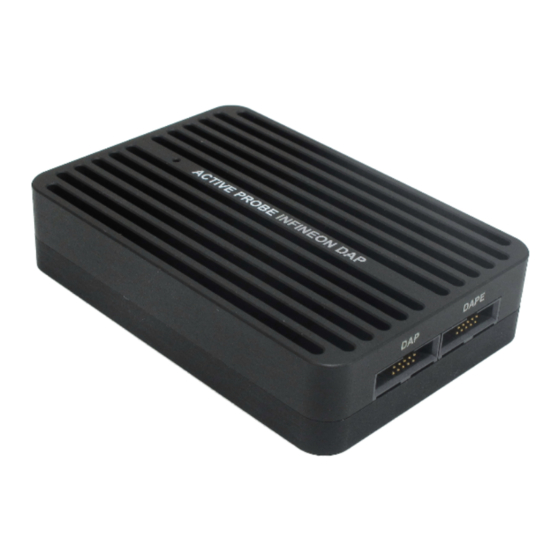

Package content Infineon DAP/DAPE II Active Probe enables debugging, tracing and testing of Infineon’s AURIX™ microcontroller family. It supports DAP and DAPE debug interface operating at their maximum frequency. Its small and compact hardware size allows for connecting to a target microcontroller in a confined space as far as 10 m away.
Specifications GENERAL Supply voltage 9.0V DC via FNet cable Operating temperature 10°C to 40°C Storage temperature -10°C to 60°C Humidity 5% to 80% RH MECHANICAL Size 95 x 55 x 20 mm Weight 0.155 kg Cable length 10 cm OPERATION Communication iSYSTEM proprietary FNet interface to BlueBox...
Operation A – 10-pin DAP connector, with the following pinout: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Reference Voltage Vref DAP1 DAP Data Ground DAP0 DAP Clock Ground DAP2 Optional 2nd Data Pin nTRST/DAPE Not Connected Optional 3rd Data Pin Ground nRESET Reset...
Page 7
Blinking blue – Reprogramming SPLASH. Permanently magenta – Golden image loaded and ready to use. D – mDIO port with the marked Pin1 on the housing mDIO port provides two digital signals, which can interact with the embedded target. Each can be configured either for input or output operation.
Recommended Target Debug Connectors and Position The target debug connector is a 10-pin, 1.27mm, double-row connector (e.g. Samtec FTSH-105- 01-L-DV,Samtec FTSH-105-01-L-DV-K with Keying Shroud). 1. Use the target debug connector(s) with the Keying Shroud option since incorrect connection can cause damage to the hardware. 2.
mDIO cable Ordering code BB-AP-MDIO-20 mDIO Cable is used to connect the Active Probe mDIO port with the signals around the debugged microcontroller, which can then be either read or controlled by the debugger. For example, the debugger can periodically service an external watchdog through the mDIO output or just read and record an external signal through the mDIO input.
ECU14 DAP 10-pin 1.27mm Converter Ordering code IADAP10ECU14 The ECU14 converter and the pinout has been defined by Bosch. The ECU14 DAP 10-pin converter is connecting at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a pinout converter is available for TriCore targets featuring the ECU14 10-pin 1.27mm...
MEDC17 DAP 10-pin 1.27mm Converter Ordering code IADAP10MEDC17 The MEDC17 converter and the pinout has been defined by Bosch. Converter is connected at the end of the 10-pin 1.27mm Infineon DAP2 Wide D. Adapter (Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) acting as a pinout converter and is available for TriCore targets featuring the MEDC17 10-pin 1.27mm target debug connector.
10-pin DAP2 to 22-pin ERF8 DAP2 Converter Ordering code IA10PINDAP22PINSAM A converter connecting at the end of the 10-pin 1.27 mm DAP debug cable is available for Infineon 22-pin ERF8 Aurix pinout. This converter must be ordered separately. The following pinout is valid on the target side: Signal Signal Description Signal...
DAP 10-pin 1.27mm to HSTCU (USB-C) Converter Ordering code IADAP10-HSTCU This converter is used to connect via 10-pin 1.27mm Infineon DAP2 Wide Debug Adapter (Ordering code IC50163-2) or Infineon DAP/DAPE II Active Probe (Ordering code IC57163-1) to the USB-C target debug connector. The converter must be ordered separately. When attaching this converter to the Active Probe, make sure its marking A and marking B is aligned and matches with the markings on the Active Probe connector.
Page 14
The following pinout is valid on the target side: Signal Signal Signal Description Signal Signal Signal Description Direction Direction Ground Not Connected Not Connected Not Connected Not Connected Not Connected Not Connected Not Connected Target Reset Pin nRESET DAP1 DAP Data Optional 2nd DAP data DAP2 nTRST*...
Hardware Setup and Configuration For detailed visual presentation of the hardware setup and configuration, refer to Getting started tutorial. Use short link isystem.com/start. 1. Connect the power supply cable. BlueBox should be switched off. 2. First connect via USB. Later you can configure TCP/IP connection to work remotely. 3.
Accessories Analog/Digital and Network Trace Ordering Code Description IC57031 IOM6 Hub (3 x FNet & FBridge) IC57040 IOM6 CAN/LIN IC57041 IOM6 ADIO IC57125-1 ARM HSSTP II Active Probe IC57163-1 Infineon DAP/DAPE II Active Probe IC57164 Infineon AGBT Active Probe IC57150 MPC5x/SPC5x Aurora Active Probe IC57166 Infineon SGBT (HSTCU) Active Probe...
